Adaptador DeLOCK RJ45 macho > bloco de terminais 8 polos 2 peças 3,81 mm

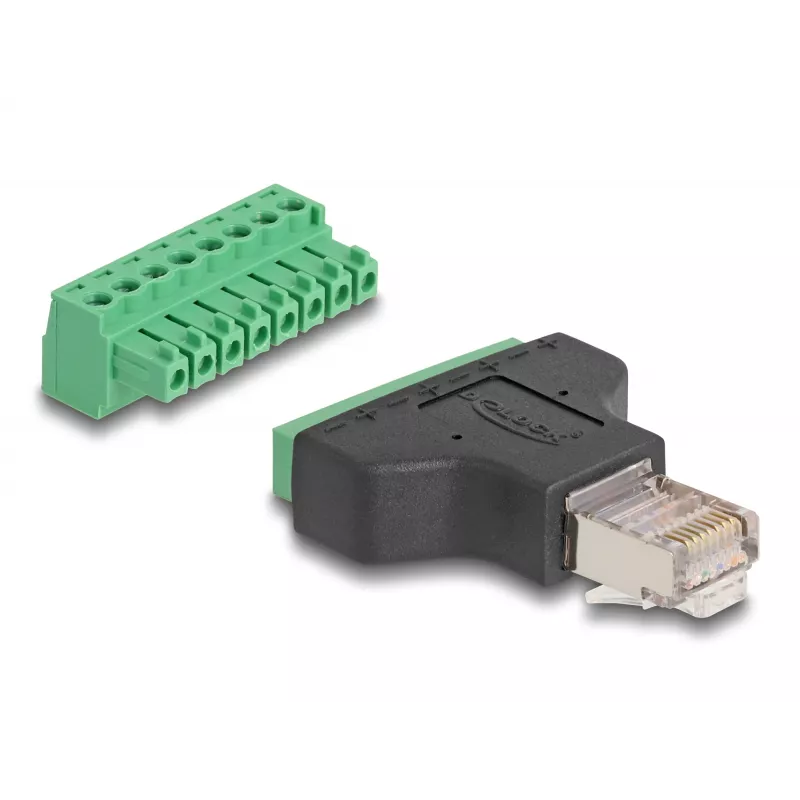

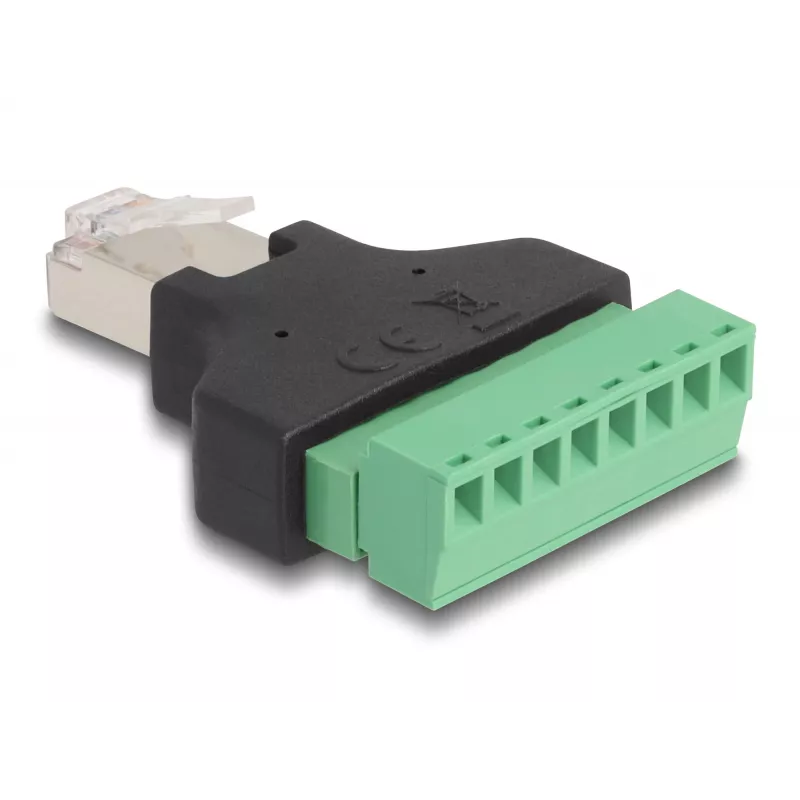

The DeLOCK Adapter RJ45 male > Terminal Block 8 pin 2-part 3.81 mm provides a direct connection between an RJ45 male plug and an 8‑pin terminal block. It allows bare wires to be connected securely to equipment with an RJ45 interface and is suitable for both industrial applications and hobby projects such as railway modelling. The adapter is available in black and green.

Advantages

This adapter combines an RJ45 male connector with a removable 8‑pin terminal block (pitch 3.81 mm) to simplify wiring tasks where standard RJ45 cables are not practical. The two‑part design enables easy access to individual wire connections, and the terminal block accepts bare conductors for straightforward installation. Its compact format supports space‑constrained setups.

Suitable for

• Connecting bare wires to devices with RJ45 ports
• Industrial control and automation wiring
• Hobby electronics and model railway wiring
• Prototyping and temporary test connections

Key specifications

• Brand: DELOCK
• MPN: 66471
• EAN: 4043619664719
• Connectors: RJ45 male to terminal block (8 pin)
• Terminal block pitch: 3.81 mm
• Product colour: Green, Black

How to use

Insert the RJ45 male connector into the corresponding RJ45 socket. Strip the insulation from each wire and insert the bare conductors into the terminal block contacts. Secure each conductor by tightening the screw terminals on the removable terminal block. If required, detach the two‑part block for easier access while wiring and then reassemble before use.

Recommendations

Use appropriate wire gauge and ensure screw terminals are tightened to manufacturer‑recommended torque to maintain reliable electrical contact. Avoid exposure to moisture and mechanical stress; verify pin mapping between the terminal block and the connected device before applying power.
