Adaptador DMX-RJ45 EUROLITE DNK-1 (MPN 70064831) para conversão de sinais DMX512 em ligações RJ45

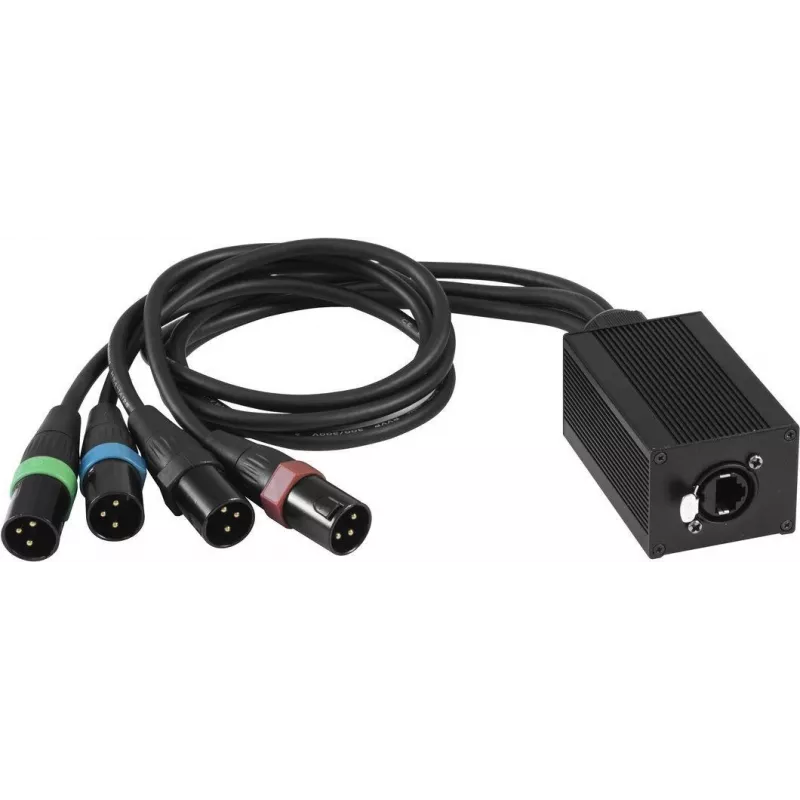

EUROLITE DNK-1 is a compact DMX-RJ45 adapter designed to convert standard DMX512 signals to an RJ45 connection for simplified cable routing in live events, stage installations and fixed lighting setups. The adapter provides a physically small and easy-to-install interface between DMX controllers and fixtures or stage equipment that use Ethernet-style cabling, allowing existing DMX512 systems to interoperate with RJ45 infrastructures without altering signal format.

Advantages

The adapter offers a space-saving form factor and straightforward passive conversion of DMX512 to an RJ45 interface, enabling use of commonly available Ethernet cables for DMX signal transport. It reduces cable clutter and can streamline cabling runs across long distances or through existing network conduits. The device is compatible with typical lighting control equipment that outputs DMX512 and with fixtures or patch panels expecting an RJ45 physical connection.

Suitable for

Key specifications

How to use

Insert the EUROLITE DNK-1 adapter between a DMX512 output or fixture using the XLR DMX connector and an RJ45 cable run. Ensure the DMX controller and fixture are powered off when connecting or disconnecting cables to avoid signal interruption. After physical connection, power up the system and verify that the DMX universe and addressing remain unchanged; the adapter performs a passive mapping to the RJ45 connector without altering DMX data. Use proper shielding and grounding practices for long cable runs to maintain signal integrity.
