Adaptador gráfico USB Lenovo USB 3.0 - DVI/VGA 2048 x 1152 píxeis preto

USB is Ubiquitous. The Lenovo USB 3.0 to DVI/VGA Monitor Adapter (0B47072) provides a quick and easy way to attach an analog or digital monitor to a ThinkPad or ThinkCentre USB port, helping to increase productivity through the use of multiple monitors.

The Lenovo USB 3.0 to DVI/VGA Monitor Adapter is ideal for increasing the efficiency of everyday tasks. View and extend spreadsheets across multiple monitors, or view financial charts simultaneously. Using multiple USB 3.0 to DVI/VGA Monitor Adapters reduces overlapping of windows when multitasking is required, and increases overall user experience and productivity.

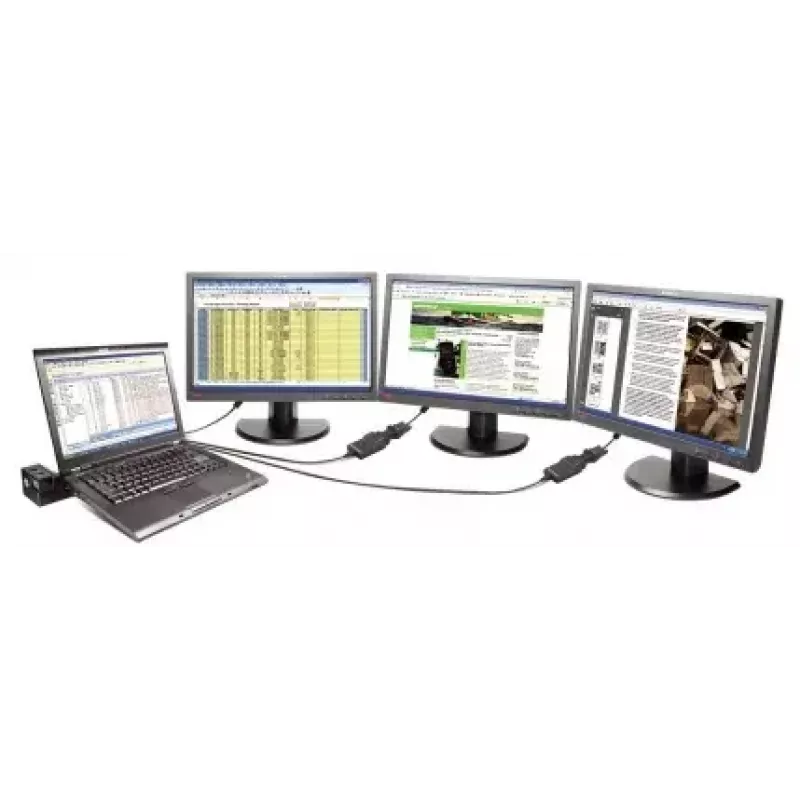

Up to six monitors can be connected using up to six USB 3.0 to DVI/VGA Monitor adapters when connected to ThinkPad systems. Adapters coexist with existing system monitor ports and installed graphics cards.

Each adapter is uniquely configured, using a setup wizard, for:

- Display mode: Span (one large desktop), mirrored (clone mode) or
- extended desktop (stretch mode)
- Screen resolution: Up to 2048x1152
- Screen orientation: 0, 90, 180, or 270 degrees
- Monitor placement: Extend monitor to right, left, above, or below

Windows Display Properties setup menu allows users to set resolution and the position location of each USB 3.0 to DVI/VGA Monitor Adapter along with the systems graphics displays.

The USB3.0 to DVI Monitor Adapter is lightweight and is easy to carry. A projector can quickly be attached to the ThinkPad USB port.

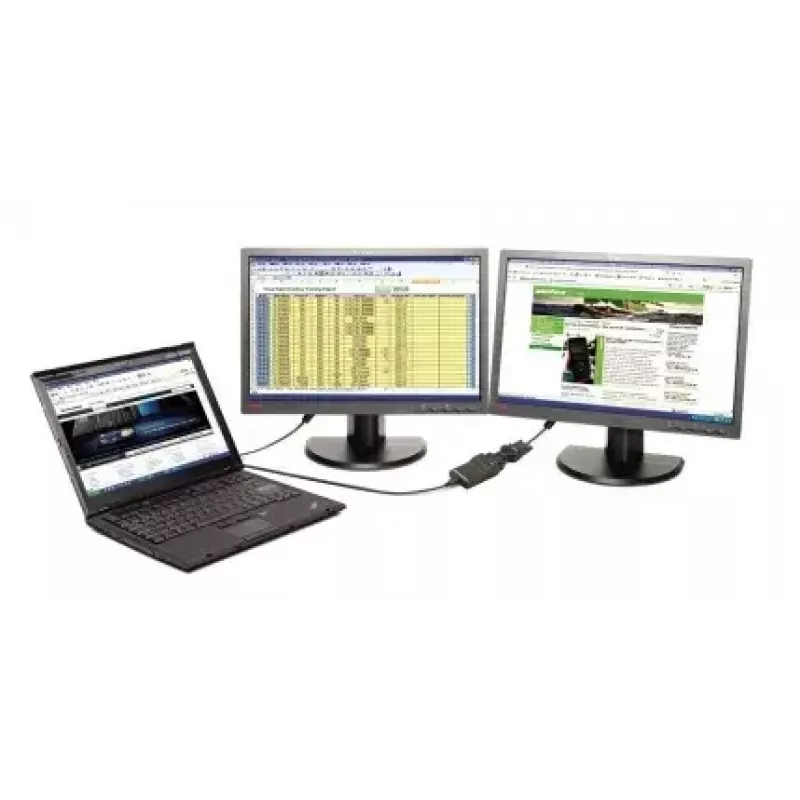

The USB 3.0 to DVI/VGA Monitor Adapter does not disable a system's graphics capabilities. For ThinkPad users, the ThinkPad display is active, a second monitor can be attached to the ThinkPad monitor port. Additional monitors can be easily connected using one or more USB 3.0 to DVI/VGA Monitor Adapters.

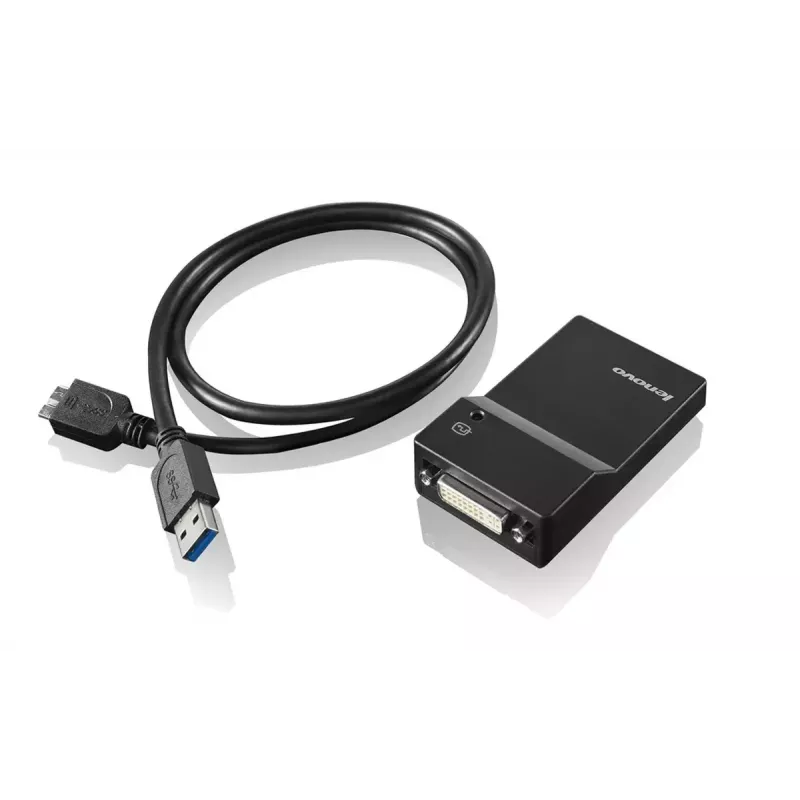

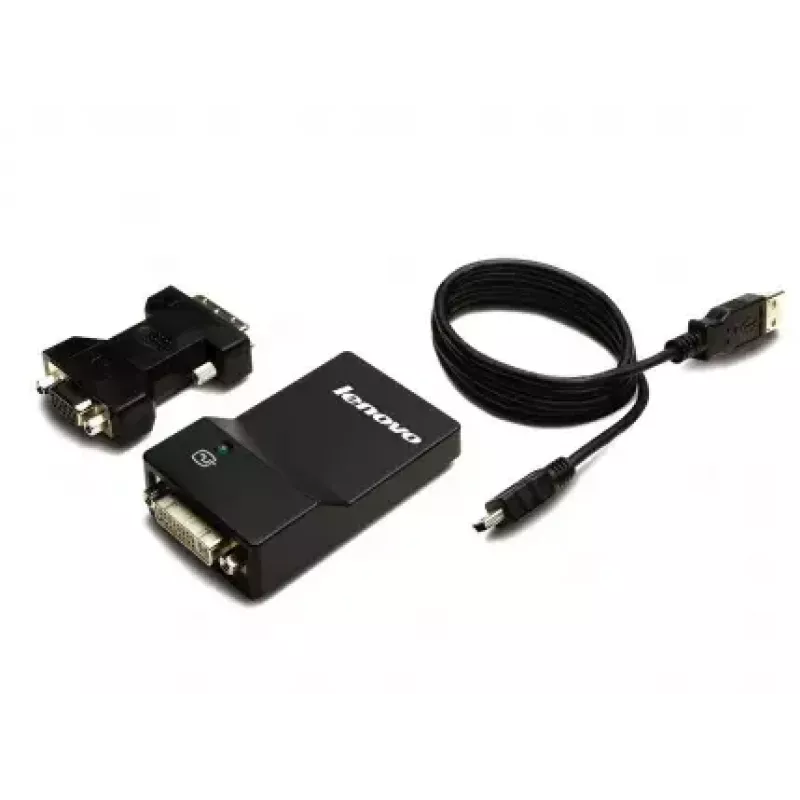

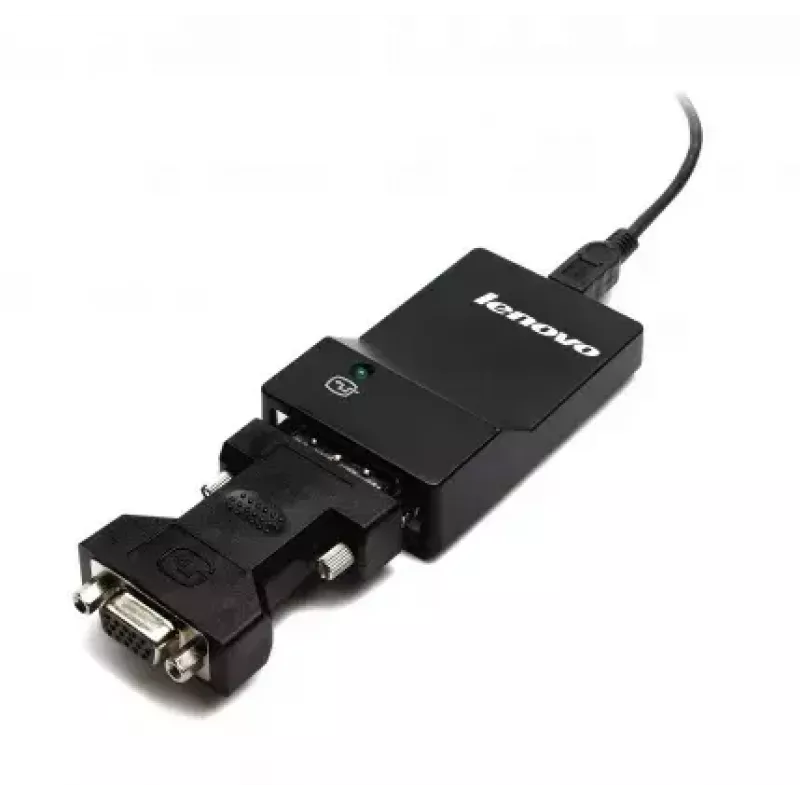

Lenovo USB 3.0 - DVI/VGA. Maximum resolution: 2048 x 1152 pixels. Product colour: Black. Weight: 138 g. Cables included: USB

How to use

Connect the adapter to a computer USB 3.0 port and attach the monitor using a DVI or VGA cable. Run the supplied setup wizard or use the Windows Display Properties to configure display mode (span, mirrored or extended), screen resolution, orientation (0, 90, 180, 270 degrees) and monitor placement (right, left, above, below). The adapter coexists with built-in graphics ports, so the laptop or system display can remain active while external monitors are connected.

Recommendations

For best performance, use a USB 3.0 port and updated display drivers. When connecting multiple adapters, check system compatibility and available USB bandwidth; on supported ThinkPad systems you can connect up to six adapters.
