Adaptador InLine conector fêmea Sub-D 9 pinos para conector fêmea RJ45 68889B InLine

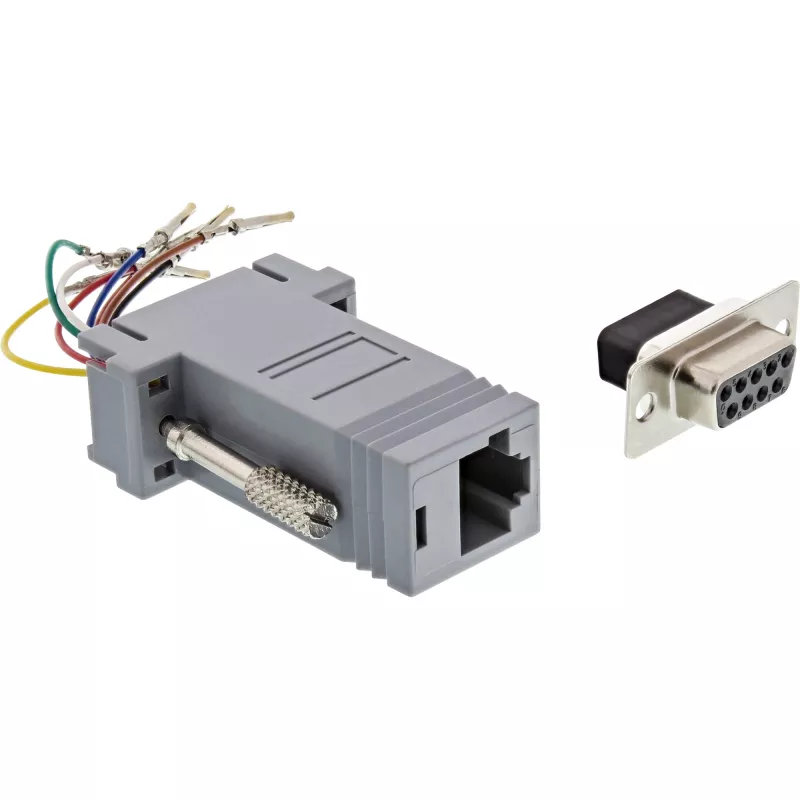

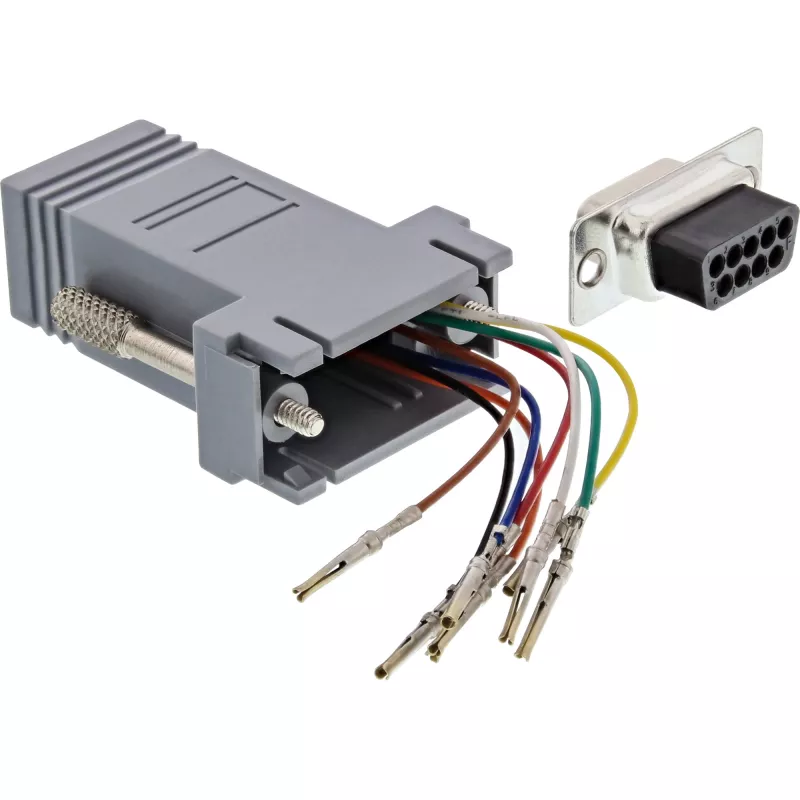

The InLine Adapter 9 Pin Sub-D female to RJ45 female 68889B is a compact interface adapter that connects devices with a 9-pin Sub-D (female) and standard RJ45 (female) connector. The adapter has a plastic housing and allows flexible assignment of Sub-D pins, enabling custom pinouts for varied applications in networking and equipment interconnection.

Advantages

The adapter provides a compact and durable solution for adapting between 9-pin Sub-D female and RJ45 female connectors. Its plastic case offers insulation and protection while the freely assignable Sub-D pins make it suitable for custom wiring and non-standard pinouts. The design facilitates straightforward integration into existing cabling without requiring soldering or permanent modifications.

Suitable for

• Connecting legacy or industrial equipment with 9‑pin Sub‑D interfaces to RJ45-based networks or devices
• Custom pinout configurations and prototype setups
• Temporary or field connections where adaptable pin assignment is needed

Key specifications

• Connector A: 9‑pin Sub‑D female (pins not fixed; assignable)
• Connector B: RJ45 female
• Housing: plastic
• Manufacturer: InLine, model 68889B, EAN 4043718078080

How to use

Insert the 9‑pin Sub‑D cable or device into the Sub‑D female socket and connect the RJ45 plug into the RJ45 female socket. Assign the Sub‑D pins according to the required signal mapping before finalizing the connection. Verify pin assignments and signals with appropriate testing tools to ensure correct operation.

Recommendations

Use the adapter in dry, non-corrosive environments and avoid subjecting it to mechanical stress. Confirm the correct pin mapping and test signal continuity before placing the adapter into permanent service. Not intended to alter signal voltage levels—use only for mechanical/adaptive connections.
