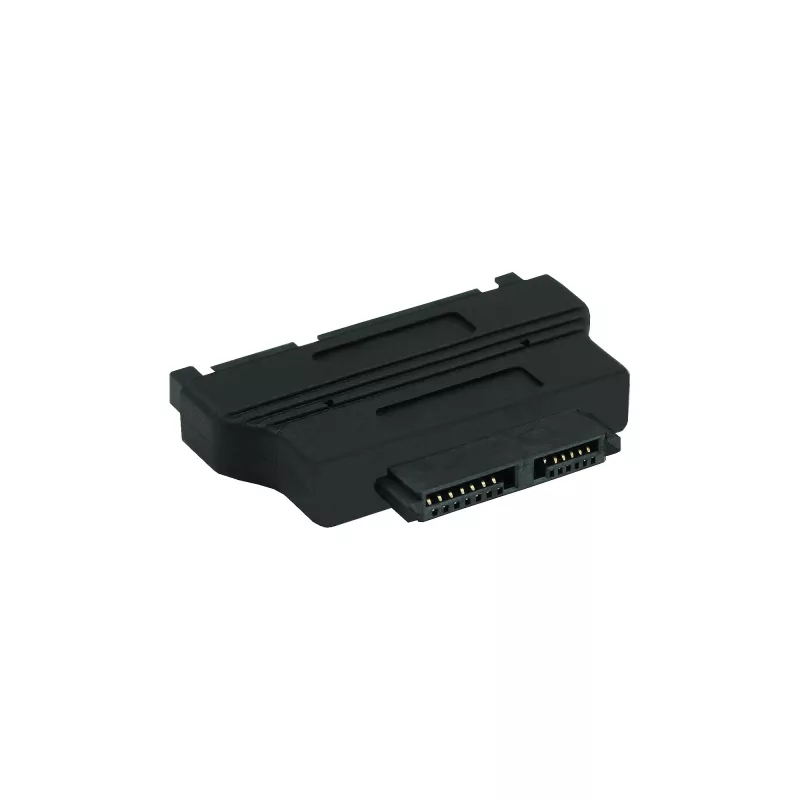

Adaptador SATA InLine 22 pinos PCB para cabo Slimline SATA 13 pinos 29611

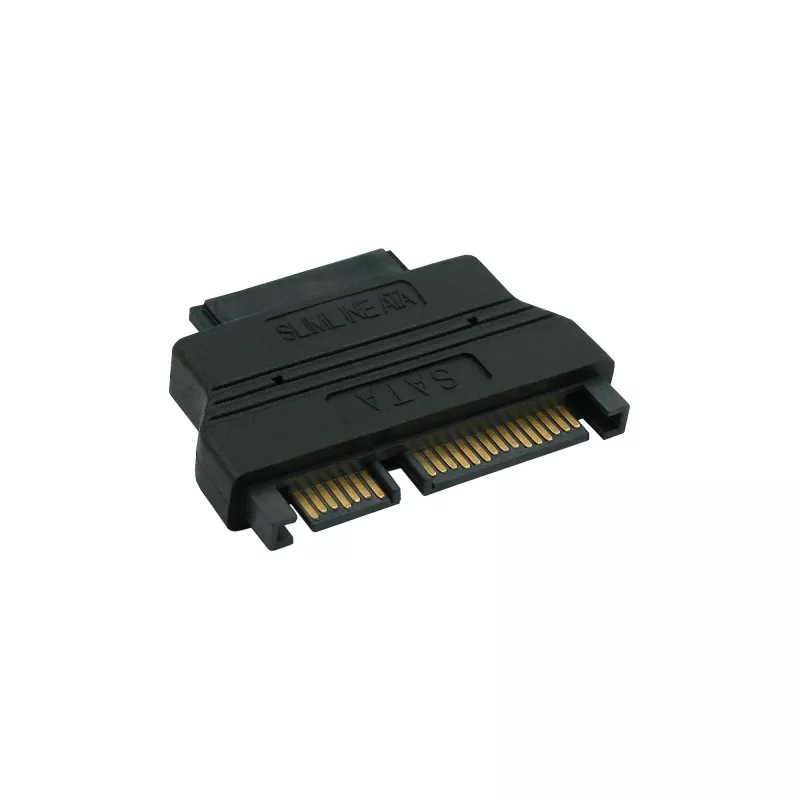

This adapter allows connection of a DVD/CD slim drive that uses a 13-pin Slimline SATA interface to a standard 22-pin SATA port. The inline adapter converts the 22‑pin SATA female (7+15) to a Slimline SATA 13‑pin cable and comes in a compact black PCB design for internal PC installations.

Advantages

The adapter provides a simple mechanical conversion between a standard 22‑pin SATA connector and a Slimline SATA 13‑pin cable without modifying drive or motherboard connectors. Its compact PCB form factor saves space inside the chassis and the black finish matches common internal components. The in-line connection ensures straightforward installation and reliable signal routing for optical slim drives.

Suitable for

Key specifications

How to use

Power off the computer and disconnect mains power. Locate the SATA port on the motherboard or SATA cable and plug the adapter's 22‑pin female connector onto the male SATA plug or cable. Connect the Slimline SATA 13‑pin cable to the slim optical drive. Secure cables inside the case to avoid strain on connectors and restore power to test the drive.

Recommendations

Use this adapter only for internal SATA connections and avoid excessive bending of the Slimline cable. Ensure correct orientation of both connectors before applying force and power the system off during installation to prevent damage.
