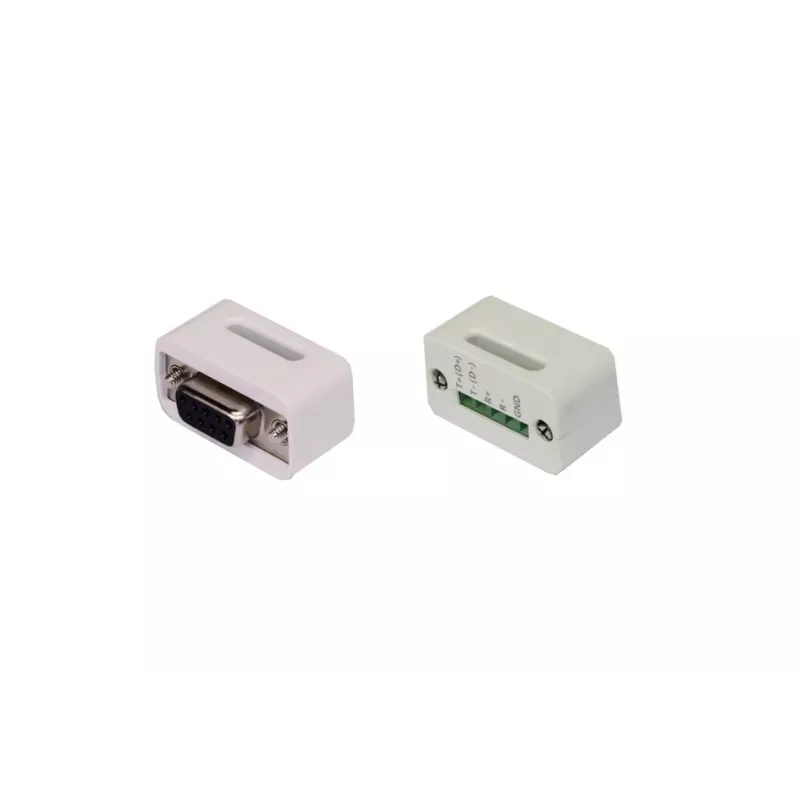

Adaptador serial EXSYS EX-47995 D-SUB 9 pinos para bloco de terminais 5 pinos, branco

This adapter bridges legacy D-SUB serial connections to screw terminal blocks, enabling custom wiring for RS-232, RS-485, and RS-422 protocols. Its white housing and solderless terminals make it a practical choice for prototyping and industrial data communication where flexible connections are required.

Highlights

• Converts a 9-pin D-SUB male connector to a 5-pin screw terminal block
• Supports RS-232, RS-485, and RS-422 serial protocols
• Solderless screw terminals accept 16-26 AWG wire
• Fully insulated plastic housing in white
• Rated for 300V and 1A per pin

In daily use

The EX-47995 is ideal for industrial automation, custom wiring, and prototyping. Its inline design allows quick, tool-free connections, and the terminal block simplifies field wiring. The adapter operates reliably in temperatures from -20°C to 85°C.

Full specifications

• Connector A: D-SUB 9-pin male
• Connector B: 5-pin screw terminal block
• Supported protocols: RS-232, RS-485, RS-422
• Wire gauge: 16-26 AWG
• Voltage rating: 300V
• Current rating: 1A per pin
• Operating temperature: -20°C to 85°C
• Housing material: plastic
• Mounting type: inline / cable mount

Final note

A straightforward adapter for integrating serial devices with custom wiring, built for reliable performance in demanding environments.
