Adaptador ShiverPeaks 85332 ficha F para conector fêmea BNC — adaptador de conector coaxial

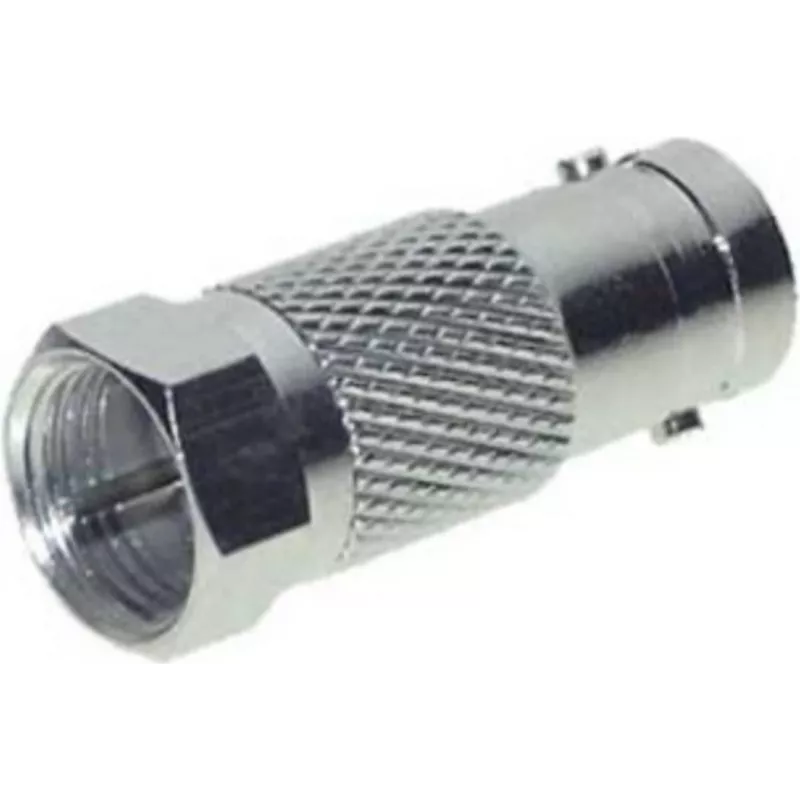

ShiverPeaks 85332 F-plug to BNC coupling is a coaxial connector adapter that converts an F-type male/coaxial connection to a BNC interface. Designed for signal routing and temporary or permanent connections, this adapter allows devices with F-type outputs — such as satellite receivers, TV tuners and some RF test equipment — to connect to equipment with BNC inputs without modifying existing cables or ports.

Advantages

The adapter provides a compact mechanical interface that preserves signal continuity and minimizes insertion loss when used within its intended frequency range. Its metal construction ensures stable mechanical contact and good shielding against electromagnetic interference. The coupling is simple to install and remove, enabling rapid reconfiguration during installation, diagnostics, or equipment testing.

Suitable for

• Connecting satellite or cable TV receivers with F-type outputs to devices with BNC inputs
• Temporary connections during RF testing and signal measurements
• Integration in distribution or monitoring setups where mixed connector types are present
• Field technicians and installers who need quick interface conversion without rewiring

Key specifications

• Connector conversion: F-type male/coaxial to BNC female coupling
• Mechanical design: threaded F interface to bayonet BNC coupling
• Material: metal housing and contacts for reliable shielding and mechanical stability
• Typical use: RF signal transmission for TV, satellite and similar frequency equipment
• Form factor: compact inline adapter for minimal cable strain and easy access

How to use

Thread the F-plug onto the F-type male connector of the coaxial cable or device until secure, then push and rotate the BNC coupling onto the BNC jack until the bayonet locks. Ensure both connectors are clean and free of debris before making the connection to maintain good electrical contact. Avoid overtightening the F-thread and do not force the BNC bayonet beyond its locking position. For best results, inspect connections visually and measure signal levels if precise diagnostics are required.

Recommendations

Use the adapter in dry, indoor environments or within weatherproof enclosures when used outdoors. Avoid exposing the adapter to excessive mechanical strain, moisture, or corrosive environments. For critical or permanent installations, consider matching cable impedance and connector quality to the application and, where applicable, use professional-grade connectors and proper sealing techniques.
