Adaptador WLAN interno Edimax EW-7612PIn

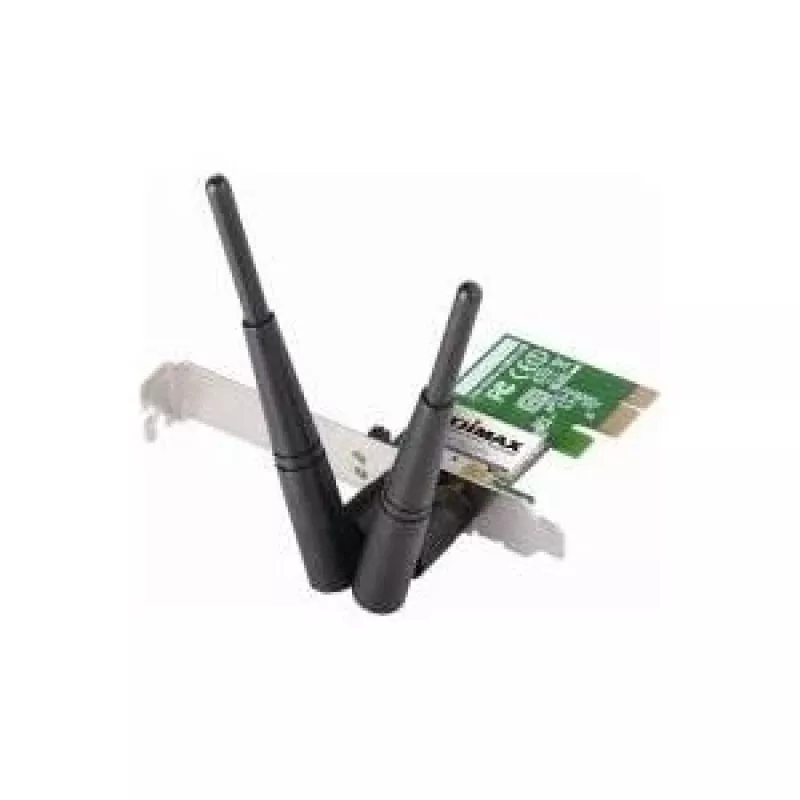

The Internal WLAN Adapter Edimax EW-7612PIn is a PCI Express wireless adapter for desktop computers that supports IEEE 802.11b/g/n (Wi‑Fi 4) on the 2.4 GHz band with maximum data rates up to 300 Mbps. The card includes detachable 3 dBi high‑gain antennas and a multi‑language EZmax setup wizard to simplify installation and configuration.

Advantages

The EW-7612PIn increases wireless coverage and reduces dead spots compared with standard 802.11b/g devices, offering up to four times greater range when used with 802.11n equipment. The PCI Express design provides improved bandwidth handling and lower latency compared with legacy PCI bus adapters. Built‑in security support includes 64/128‑bit WEP, WPA, WPA2 with AES, and WPS software compatibility for easier secure setup.

Suitable for

• Upgrading a desktop PC to Wi‑Fi 4 (802.11n) wireless networking
• Connecting to home or small office 2.4 GHz wireless networks
• Accessing public hotspots from a desktop computer

Key specifications

• Networking standards: IEEE 802.11b/g/n (2.4 GHz)
• Maximum data transfer rate: 300 Mbit/s
• Interface: PCI Express (internal card)
• Antennas: 3 dBi high‑gain detachable antennas
• Security: 64/128‑bit WEP, WPA, WPA2 (AES), WPS support
• Setup: Multi‑language EZmax setup wizard
• Colours: Black, Green

How to use

Install the EW-7612PIn into an available PCI Express slot on the desktop motherboard, attach the detachable antennas, and boot the system. Run the included EZmax setup wizard and follow the on‑screen instructions to select your wireless network and configure security settings. After setup, the adapter will connect to 2.4 GHz 802.11n/b/g networks and operate at negotiated speeds up to 300 Mbps depending on the access point and network conditions.

Recommendations

For best coverage and performance, place the desktop in a location with minimal physical obstructions and orient the detachable antennas for optimal signal reception. Use WPA2 with AES where available and enable WPS only when connecting trusted devices using the WPS procedure. Ensure the motherboard has a free PCI Express slot and that drivers supplied by the manufacturer are installed for full functionality.
