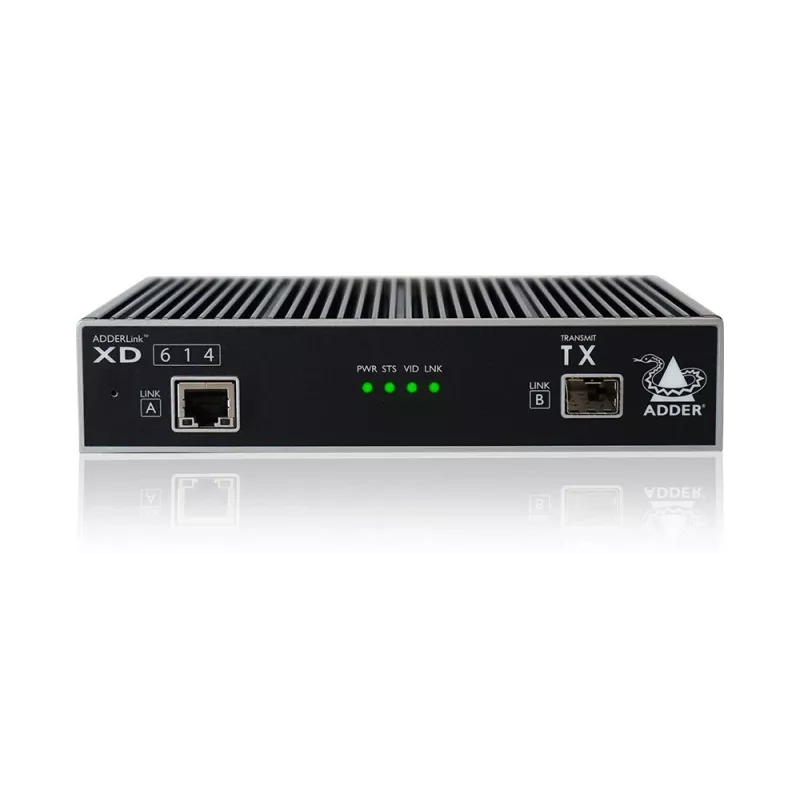

ADDER XD614P-DP Extensor KVM DisplayPort, transmissor e recetor, com fios, até 4000 m por fibra ótica, 1920 x 1200 @ 60Hz, Cat6/Cat6a/Cat7/Cat8.1

KVM extender pair for DisplayPort video, USB HID, audio and RS232 over copper or fiber, reaching up to 4000 m with fiber SFP modules. The ADDER XD614P-DP delivers uncompressed 1920 x 1200 @ 60 Hz video with 8-bit colour and near-zero latency for real-time control.

Advantages

Extend a DisplayPort workstation across a building or campus without compromising image quality or responsiveness. The transmitter and receiver pair supports both standard copper cabling (Cat6, Cat6a, Cat7, Cat8.1) for distances up to 100 m and fiber optic links for up to 4 km when using optional SFP modules. Four USB 2.0 ports on the receiver allow connection of keyboard, mouse and other peripherals, while bidirectional audio and RS232 ensure complete remote control. The compact, rack-mountable units integrate easily into existing infrastructure.

Suitable for

• Control rooms and broadcast environments requiring pixel-perfect video extension
• Industrial automation and medical imaging where latency must remain imperceptible
• IT administrators managing servers in secure or remote locations
• Digital signage and presentation systems with long cable runs

Key specifications

• Transmitter and receiver pair for DisplayPort 1.2 signals
• Maximum resolution: 1920 x 1200 @ 60 Hz, 8-bit colour depth
• Copper extension: up to 100 m over Cat6, Cat6a, Cat6e, Cat7 raw cable, Cat8.1
• Fiber extension: up to 4000 m using SFP modules (not included)
• USB: 4x USB 2.0 ports on receiver for HID and peripheral sharing
• Audio: 3.5 mm line in/out on both transmitter and receiver
• Serial: RS232 DB9 for touchscreens or control systems
• Network: 1x RJ45 (1GbE) KVM link, 1x SFP cage, 1x auxiliary RJ45
• Latency: near-zero (<1 ms)
• Rack mountable with optional brackets

Recommendations

For installations exceeding 100 m or requiring electrical isolation, use single-mode fiber with compatible SFP modules. Pair with shielded Cat6a or higher cabling for best copper performance. Ensure both units are powered via the included AC adapters.
