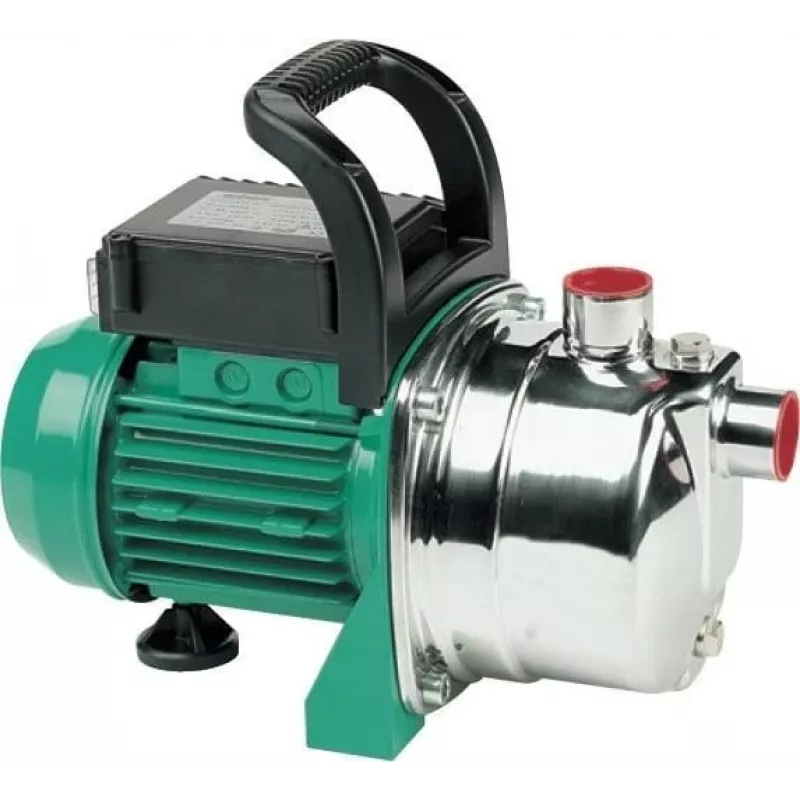

Bomba PUMP CAM 80/PA-HL (MARINA) bomba jet autoaspirante 0,6 kW 3,6 m³/h 42 m de altura de elevação

Unlike ordinary centrifugal pumps that struggle with air pockets and require manual priming, the Pump PUMP CAM 80/PA-HL (MARINA) is a self-priming jet pump engineered for dependable water transfer in domestic and garden settings. Its technopolymer body and stainless steel shaft resist corrosion, while the 0.6 kW motor delivers a solid 3.6 m³/h flow rate and up to 42 m of head. Whether you're irrigating a large garden, boosting municipal water pressure, or drawing from a shallow well, this pump handles clean water tasks with minimal fuss.

Highlights

• Self-priming design eliminates the need for manual filling before each use
• Robust technopolymer (Noryl) pump body and impeller for long service life
• Stainless steel motor shaft (AISI 416) and ceramic/graphite mechanical seal
• IP44 protection rating and Class F insulation for safe outdoor installation
• Generous 1-inch inlet/outlet ports for efficient water flow
• Quiet operation suitable for residential areas

In daily use

Set up the PUMP CAM 80/PA-HL near a rain barrel, shallow well, or garden tap, and it will start delivering water within seconds. The self-priming mechanism means you can mount it above the water source up to 8 metres, and it will draw water automatically. With a maximum operating pressure of 6 bar, it can also serve as a pressure booster for household appliances or irrigation systems. The compact footprint and lightweight design make it easy to relocate between different jobs, while the IP44 rating protects against splashing water and dust, allowing permanent outdoor installation under a simple cover.

Full specifications

• Pump type: Self-priming jet pump
• Power: 0.6 kW (0.8 HP)
• Voltage: 220-240 V, 50 Hz
• Max flow rate: 3.6 m³/h (60 L/min)
• Max head: 42 m
• Max suction lift: 8 m
• Inlet/outlet diameter: 1" (DN25)
• Pump body material: Technopolymer (Noryl)
• Impeller material: Technopolymer (Noryl)
• Motor shaft material: Stainless steel (AISI 416)
• Mechanical seal: Ceramic/graphite
• Motor protection rating: IP44
• Insulation class: F
• Max liquid temperature: 35°C
• Max operating pressure: 6 bar
• Liquid type: Clean water, non-aggressive
• Application: Domestic water supply, irrigation, gardening

Final note

For reliable, low-maintenance water transfer in home and garden, the PUMP CAM 80/PA-HL (MARINA) offers the perfect balance of performance, durability, and ease of use. Its self-priming capability and corrosion-resistant construction make it a smart choice for anyone needing a dependable water pump without the complexity of traditional models.
