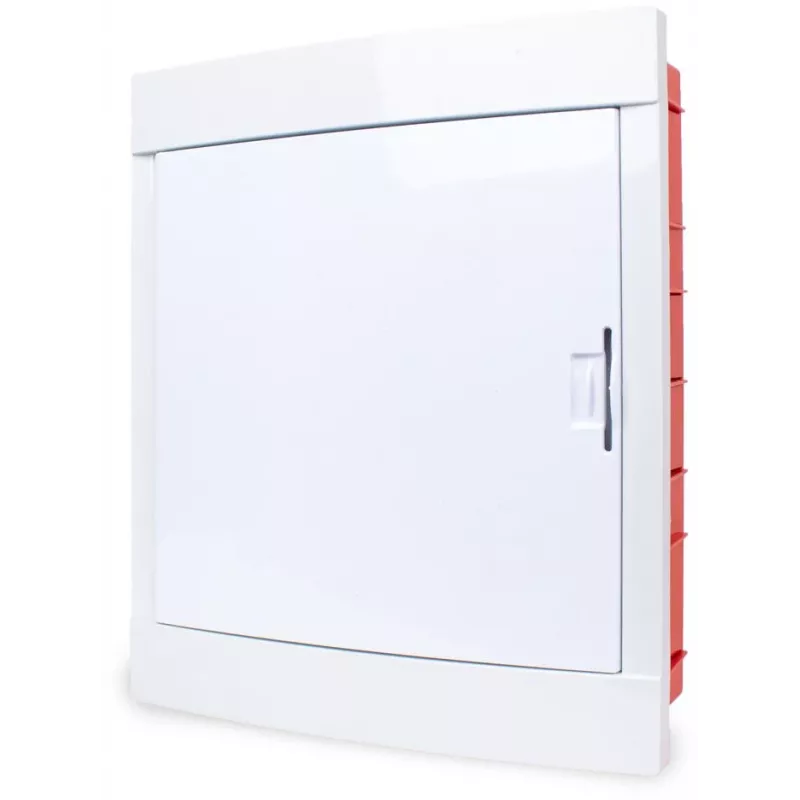

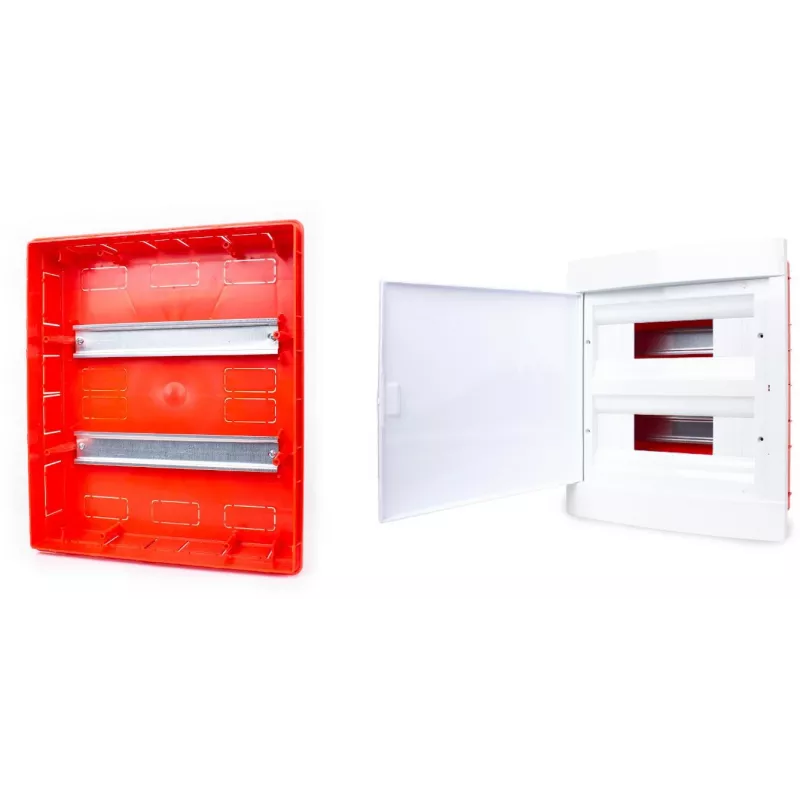

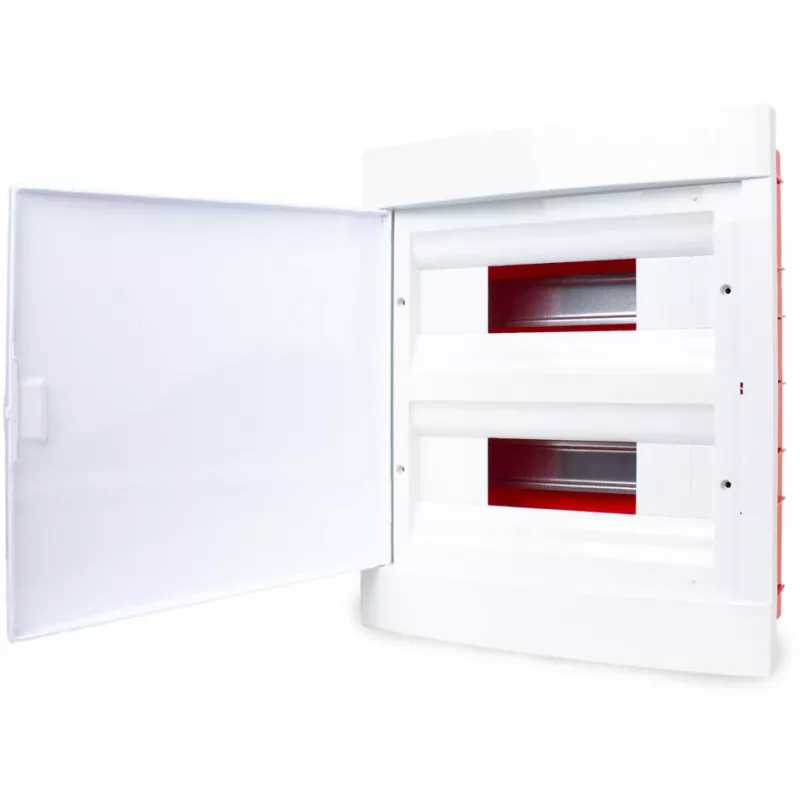

ADELID RM-PT-24P Quadro de distribuição para embutir 24 módulos (2x12) IP40 IK07

The ADELID RM-PT-24P is a high-quality flush-mounted distribution board designed for residential and light commercial electrical installations. With a capacity of 24 modules arranged in two rows (2x12), it provides ample space for circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic with a white base and a smoked transparent door, offering both protection and visibility of the installed components.

Advantages

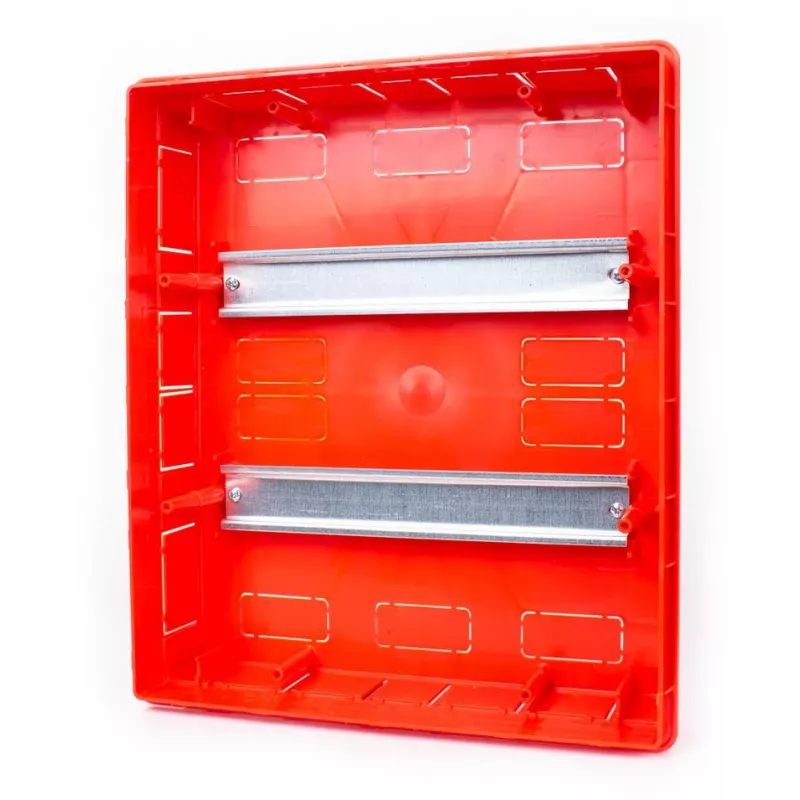

This distribution board combines robust construction with ease of installation. The metal DIN rail (TH35) is pre-installed, and neutral (N) and earth (PE) terminal blocks are included, simplifying wiring. The IP40 rating protects against solid objects larger than 1mm, while the IK07 impact rating ensures resistance against mechanical shocks. The transparent door allows quick visual inspection without opening.

Suitable for

• Residential electrical distribution
• Light commercial applications
• Flush-mounted installations in walls

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Number of Modules: 24 (2 rows x 12 modules)
• Enclosure Material: High-quality ABS plastic
• Door: Transparent, smoked
• Ingress Protection: IP40
• Impact Protection: IK07
• Rated Voltage: 230/400V AC
• Rated Current: 63A

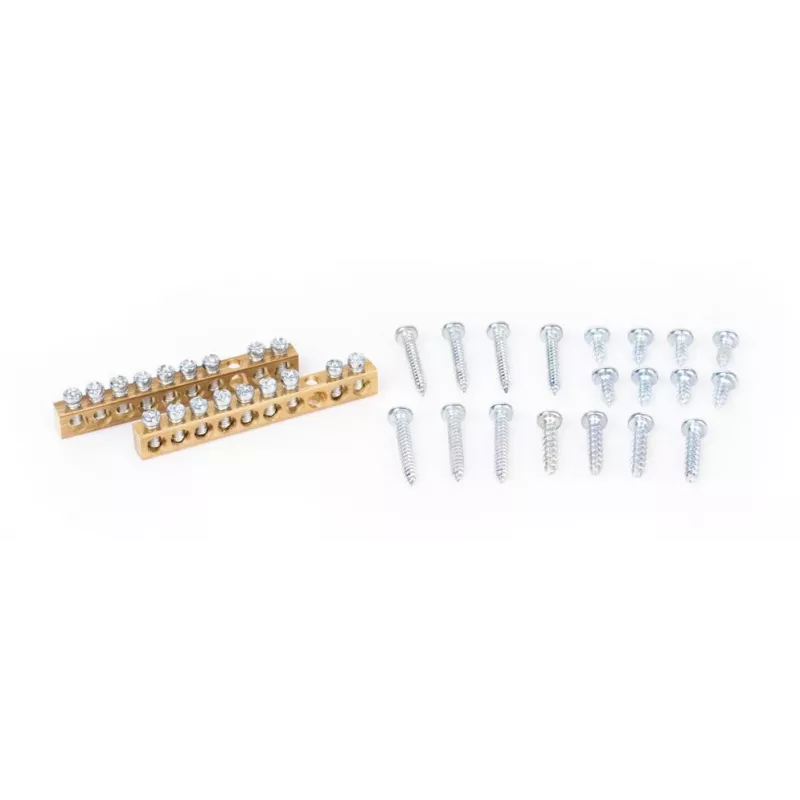

• Terminal Blocks: N and PE included
• DIN Rail: Metal TH35 included
• Colour: White base, smoked transparent door
• Operating Temperature: -5°C to +60°C
• Standards: PN-EN 60670-24, CE
• Recessed Opening Dimensions (HxWxD): 365 x 275 x 70 mm

Recommendations

Ensure the recessed opening dimensions match your wall cavity before installation. Use appropriate cable glands for cable entry. This board is suitable for use with standard 18mm modular devices.
