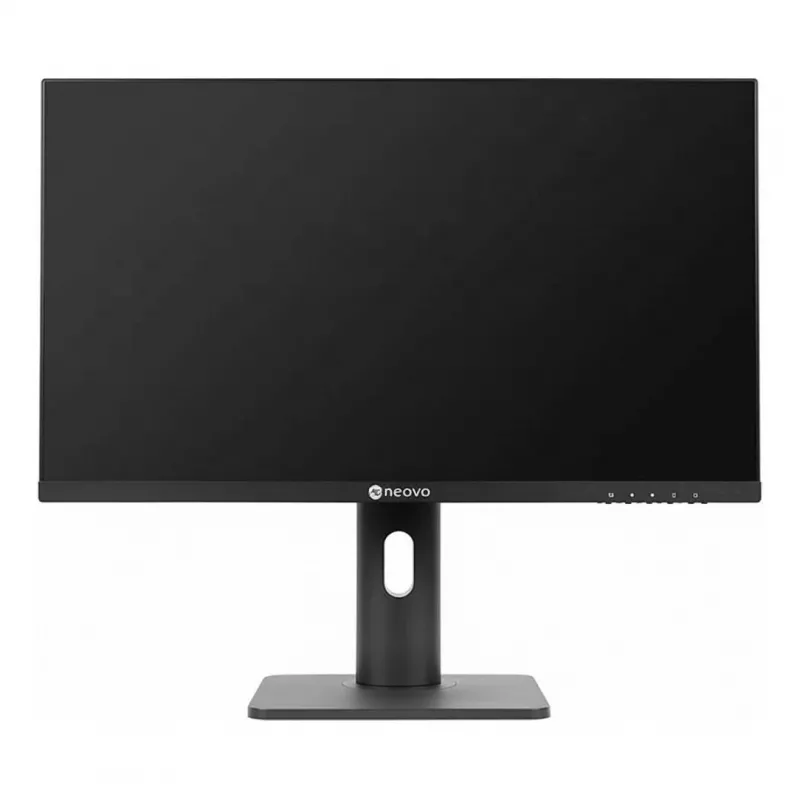

AG Neovo QX2702 monitor LCD 4K UHD de 27 polegadas, 3840x2160, 300 cd/m2, HDMI, preto

The AG Neovo QX2702 is a 27-inch 4K UHD LCD monitor designed for mission-critical surveillance and control room environments. It features native 4K resolution (3840 x 2160) and supports multiple video sources simultaneously with Quad-View, PIP, and PBP modes, eliminating the need for external switchers. With four HDMI inputs and DisplayPort in/out, it enables flexible multi-system integration and daisy-chain capabilities.

Key features

• Native 4K UHD resolution (3840 x 2160) for detailed multi-source monitoring
• Quad-View, PIP, and PBP modes with independent aspect ratio adjustment
• Four HDMI 2.0 inputs and DisplayPort 1.2 in/out for direct connection of up to four systems
• DisplayPort daisy-chain for scalable visual configurations
• RS232 and LAN control for centralized management; compatible with Neovo Controller
• Blackout mode for instant screen blanking without powering off
• Ultra-low brightness down to 2 cd/m² for dark or sensitive environments
• Built-in speakers (2 x 10 W)
• VESA 100 x 100 mm mounting interface
• Kensington lock slot
• 24/7 operation
• Metal housing with NeoV™ optical glass
• HeatControl sensors with internal cooling fans
• Anti-glare screen, 3H surface hardness, 3.2 mm glass thickness
• Remote control included

Specifications

• Brand: AG Neovo
• Model: QX2702
• MPN: QX272011E0000
• Product colour: Black
• Product type: CCTV monitor
• Mounting type: Ceiling/Wall
• Screen diagonal: 68.6 cm (27")
• Display resolution: 3840 x 2160 pixels
• Display type: LED
• Panel type: VA
• Brightness: 400 cd/m²
• Aspect ratio: 16:9
• Viewing angle (H/V): 178°/178°
• Number of colours: 1.07 billion
• Pixel pitch: 0.155 x 0.155 mm
• Contrast ratio: 1000:1
• Response time: 5 ms
• Haze rate: 25%
• Digital horizontal frequency: 30 - 160 kHz
• Digital vertical frequency: 30 - 76 Hz
• HDMI inputs: 4 (HDMI 2.0)
• DisplayPort in: 1 (v1.2)
• DisplayPort out: 1 (v1.2)
• USB 2.0 ports: 1
• Ethernet/LAN: 1 x RJ-45
• Audio output: 3.5 mm
• RS-232 port: 2
• Remote control (IR) input: 1
• Remote control (IR) output: 1
• DC connection: Yes
• Power source: DC
• Power supply type: External
• Power consumption (typical): 33 W
• Power consumption (standby): 0.5 W
• Power consumption (off): 0.3 W
• Power supply output voltage: 24 V
• AC adapter output current: 5.5 A
• Energy efficiency class (SDR): G
• Energy efficiency scale: A to G
• Energy consumption (SDR) per 1000 hours: 33 kWh
• Operating temperature: 0 - 40 °C
• Storage temperature: -20 - 60 °C
• Operating relative humidity: 10 - 90%
• Storage humidity: 5 - 95%
• Weight: 7.93 kg
• Dimensions (W x H x D): 653.2 x 392 x 57 mm
• Bezel width (side/top/bottom): 1.28 cm
• IK code: IK08, IK10
• Housing material: Metal
• Operating hours (hours/days): 24/7
• Certifications: CE, REACH, RoHS, WEEE, Low Voltage Directive (LVD), BSMI, FCC, CCC, cUL, KCC, RCM, PSE
• Package contents: AC power adapter, AC cable, HDMI cable, remote control, quick start guide
