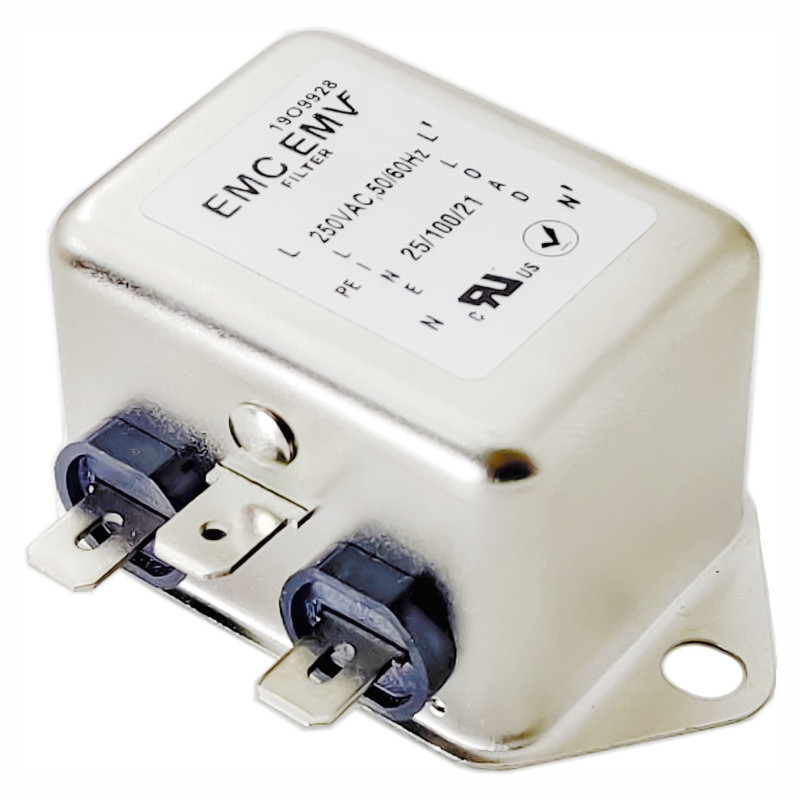

Akyga EN2090-1-F filtro de rede EMC monofásico 1 A, 120–250 V AC, 50/60 Hz, conectores de 6,3 mm

The Akyga EN2090-1-F is a single-phase EMI filter designed to protect sensitive electronics operating at low currents up to 1 A. It is ideally suited for measuring equipment, medical equipment, laboratory equipment and control systems where even minor interference can affect the accuracy of operation. Thanks to its low leakage current and robust metal housing, the filter effectively reduces interference both from the mains and generated by the device.

Key features

• High-precision interference filter
• Low leakage current
• Robust metal housing
• 6.3 mm connectors for easy and quick installation

Specifications

• Brand: Akyga
• MPN: EN2090-1-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 1 A
• Leads: 6.3 mm connectors
• Leakage current: 0.29mA @120 VAC 60 Hz, 0.50mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C - +100°C
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138958
