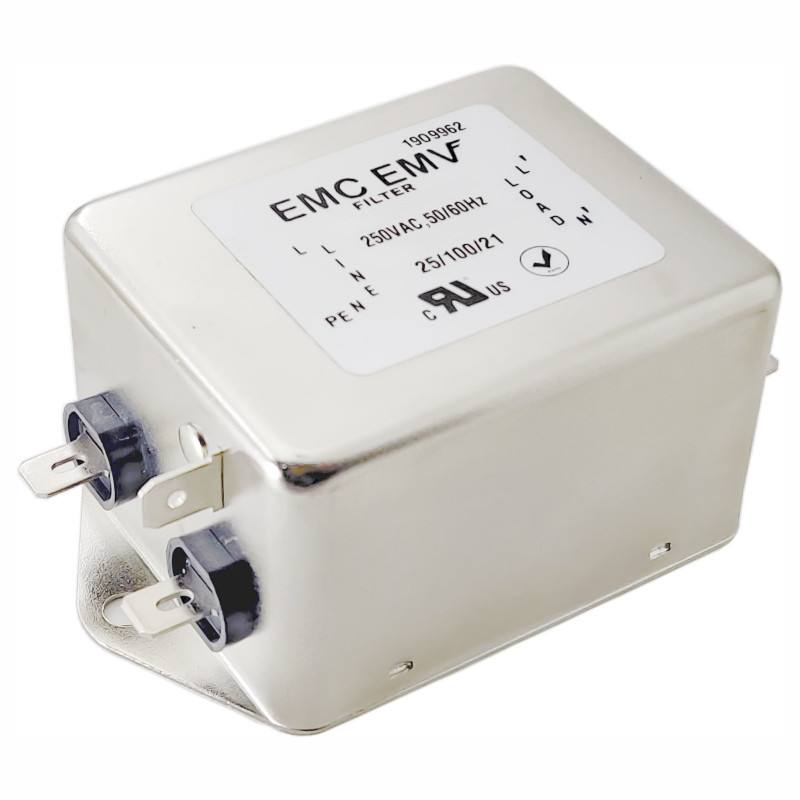

Akyga EN2090-12-F filtro de rede EMC monofásico 12 A, 120–250 V AC, 50/60 Hz, conectores de 6,3 mm

The EN2090-12-F is a single-phase EMI filter from Akyga designed to protect equipment supplied with up to 12 A from electromagnetic interference. It is suitable for automation systems, industrial installations, medical devices, and advanced audio and video systems where voltage stability is crucial.

Key features

• Protects equipment supplied with up to 12 A from electromagnetic interference
• Equipped with 6.3 mm connectors for fast and secure installation
• Robust metal housing effectively shields external interference
• Higher leakage current ensures effective interference suppression
• Reliable operation even in harsh environments

Specifications

• Brand: Akyga
• MPN: EN2090-12-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Leakage current: 1.00 mA @120 VAC 60 Hz, 1.73 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 115 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720139009
