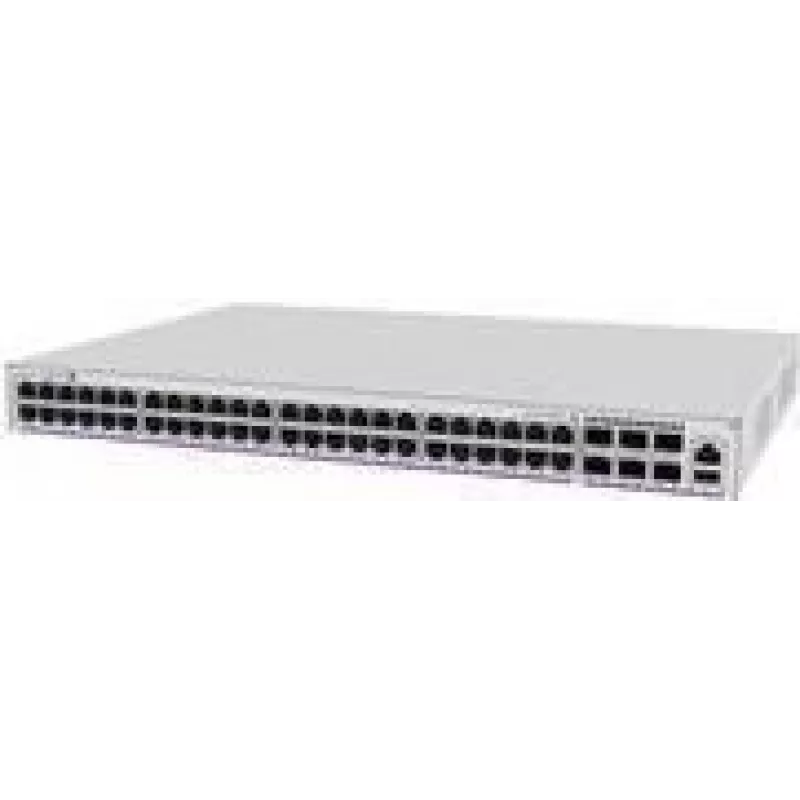

Alcatel-Lucent OmniSwitch OS2260-P48 - Switch Gerido - 48 x 10/100/1000 PoE+ + 6 x Gigabit SFP Uplink - Montagem em Rack - PoE+ (370 W) (OS2260-P48-EU)

The Alcatel-Lucent OmniSwitch OS2260-P48 is a high-performance managed switch designed for enterprise networks requiring robust PoE+ capabilities. With 48 Gigabit Ethernet PoE+ ports and 6 SFP uplinks, it delivers reliable connectivity and power for devices such as IP phones, wireless access points, and surveillance cameras. Its Layer 2+ feature set includes static routing, advanced security, and QoS, making it ideal for converged networks.

Advantages

This switch offers a PoE budget of 370 W, supporting IEEE 802.3af/at standards. It features a switching capacity of 108 Gbps and a forwarding rate of 80.35 Mpps, ensuring high-speed data transfer. The rack-mountable 1U form factor saves space, and virtual chassis stacking allows for easy scalability. Security features like ACLs, DHCP snooping, and DAI protect the network.

Suitable for

• Enterprise access layer deployments
• PoE-powered device environments
• Networks requiring high availability and security

Key specifications

• 48 x 10/100/1000Base-T PoE+ ports
• 6 x Gigabit SFP uplink ports
• PoE budget: 370 W
• Switching capacity: 108 Gbps
• Forwarding rate: 80.35 Mpps
• MAC address table: 16K entries
• Jumbo frame support: up to 9 KB
• Management: Web GUI, CLI, SNMP, RMON, Telnet, HTTP/HTTPS
• Layer 2+ with static routing
• VLAN support: 4K VLANs
• QoS support: Yes
• Security: ACLs, DHCP snooping, IP source guard, DAI, STP root guard
• Form factor: Rack-mountable 1U
• Stackable: Virtual chassis
• Max power consumption: 440 W
• MTBF: 330,000 hours

Recommendations

For optimal performance, pair with Alcatel-Lucent SFP transceivers and use a UPS to ensure uninterrupted PoE power. This switch is ideal for organizations upgrading to a unified network infrastructure.
