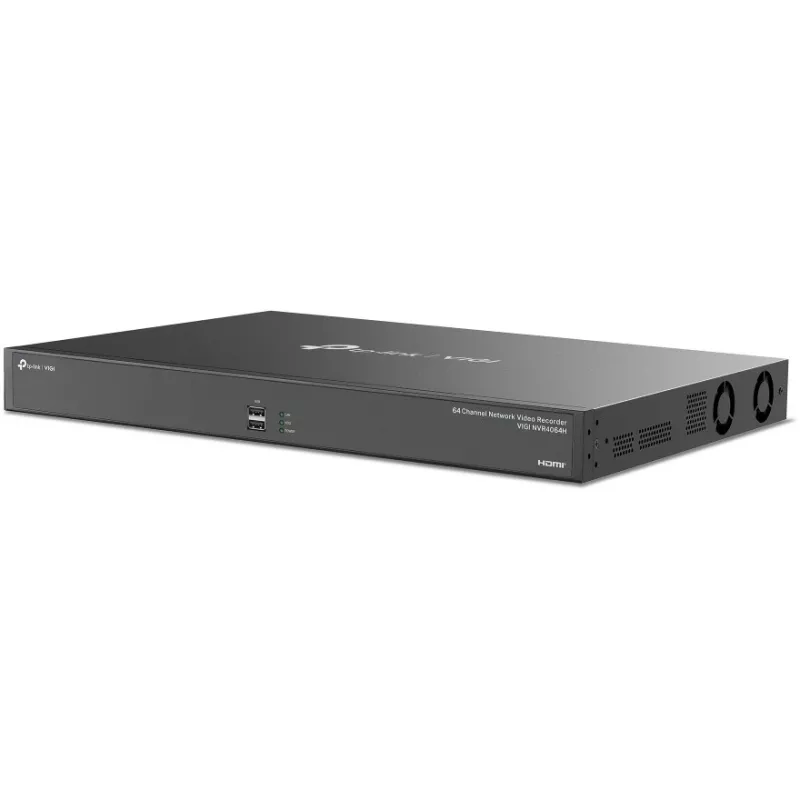

Gravador de vídeo em rede TP-Link VIGI NVR 64 canais, entrada 64ch, 4K 3840×2160, reprodução 16ch, disco HDD SATA, 64 TB máx., 2×LAN, USB-A

TP-Link VIGI 64 Channel NVR is a network video recorder designed for multi-camera surveillance in commercial and large residential environments. It supports up to 64 video input channels with a maximum resolution of 3840 × 2160 (4K) and simultaneous playback of up to 16 channels. The recorder accepts SATA hard drives and can accommodate a total storage capacity up to 64 TB. Connectivity includes two Gigabit Ethernet ports, one USB 3.2 Gen1 Type-A port and two USB 2.0 ports. Housed in a black metal chassis, the unit operates from a 100–240 V supply and is built to integrate with remote monitoring setups and typical IP camera deployments.

Advantages

The VIGI 64 Channel NVR provides dense channel support and high-resolution recording while maintaining compatibility with H.265+ compression to reduce storage and bandwidth requirements. Dual Ethernet ports enable multi-address mode, port aggregation and fault-tolerance for redundancy or increased throughput. One-click system initialization simplifies camera addition, HDD initialization and storage scheduling, lowering setup time for installers and administrators. Simultaneous HDMI and VGA outputs and hardware decoding capabilities allow flexible local monitoring and playback of multiple channels.

Suitable for

• Office and corporate campus surveillance requiring many camera feeds
• Retail stores and shopping centers with centralized recording needs
• Warehouses and logistics facilities monitoring large areas
• Large residential properties or multi-dwelling units with multi-camera coverage

Key specifications

• Video input channels: up to 64 channels
• Maximum resolution: 3840 × 2160 (4K)
• Simultaneous playback: up to 16 channels
• Decoding capability: up to 16-ch @ 2MP (25 fps) or 8-ch @ 4MP (30 fps)
• Incoming/Outgoing network bandwidth: 320 Mbps / 320 Mbps
• Storage interface: SATA, supports multiple HDDs to reach up to 64 TB total capacity

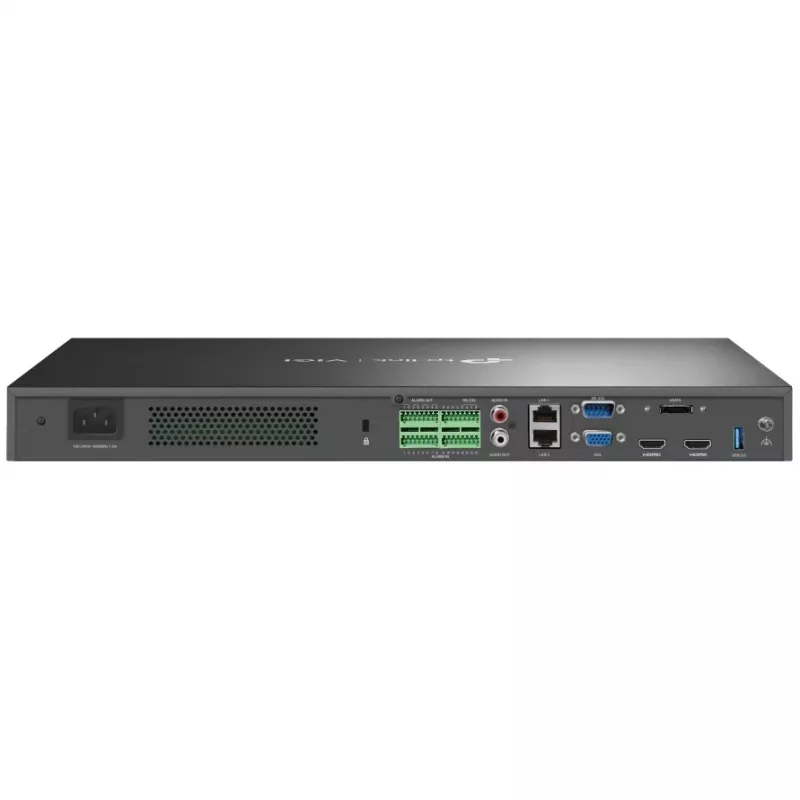

• Ethernet: 2 × RJ-45 (10/100/1000 Mbps)
• USB ports: 1 × USB 3.2 Gen1 Type-A, 2 × USB 2.0
• Video outputs: HDMI and VGA simultaneous output
• Compression: H.265+ supported
• Chassis: black metal; weight approximately 4 kg
• Power input: 100–240 V

How to use

Install SATA hard drives into the provided bays according to the hardware manual and connect network cameras to the LAN. Power the unit using the specified 100–240 V input and connect one or both Ethernet ports to your network infrastructure to enable multi-address or port aggregation modes as required. Use the one-click system initialize function to add cameras, initialize HDDs and configure basic storage schedules. Configure remote monitoring and user access through the VIGI management interface or compatible surveillance software to view live feeds, manage recordings and perform playback.

Recommendations

For reliable long-term recording, use enterprise-class SATA HDDs rated for surveillance workloads and set up regular maintenance checks; enable network fault-tolerance or port aggregation for redundancy in critical installations and schedule periodic backups of important footage to external storage or network locations.
