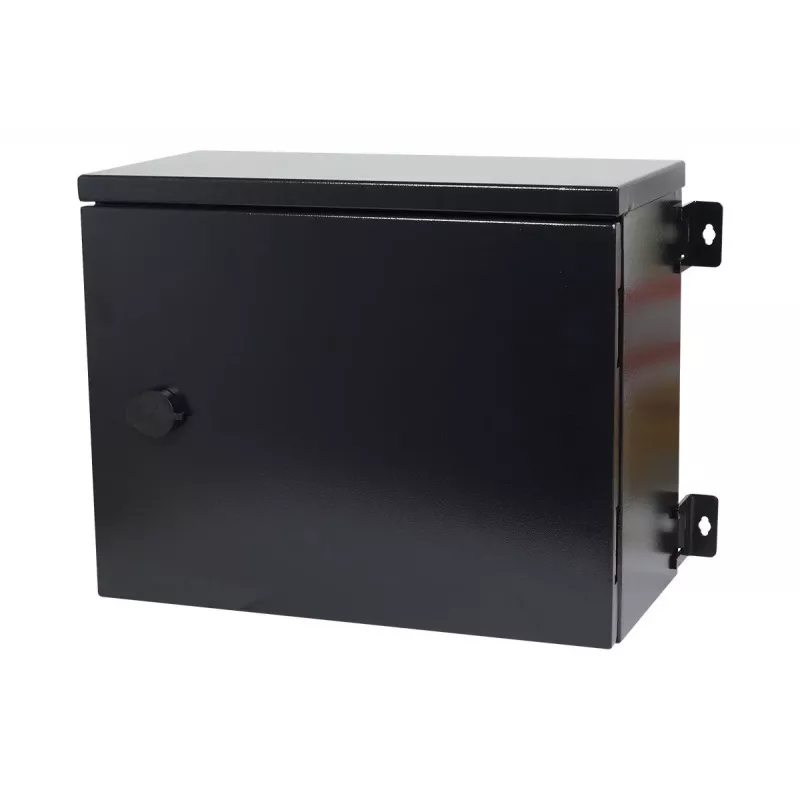

ALLNET Caixa de parede para calha DIN T223mm preta IP55 série SO-DIN

Dust and moisture can wreak havoc on DIN rail mounted equipment, leading to failures and downtime. The ALLNET SO-DIN wall enclosure provides a robust, IP55-rated steel housing that shields your automation components from ingress while allowing convenient access for maintenance. With a depth of 223 mm, it accommodates deeper devices such as power supplies, controllers, and interface modules that won't fit in standard shallow enclosures.

Who is it for

This enclosure is ideal for system integrators, panel builders, and facility managers who need to install DIN rail equipment in industrial settings, workshops, or outdoor locations where protection against dust and water jets is required. It suits applications like building automation, access control, and machine control where reliability and security are paramount.

Main features

• IP55 ingress protection against dust and low-pressure water jets from any direction
• Powder-coated sheet steel construction for durability and corrosion resistance
• Hinged, lockable door with key lock (2 keys included) to prevent unauthorized access
• Supports standard 35 mm DIN rail with approximately 175 mm usable length
• Removable mounting plate for easy component installation and wiring
• Gland plates or knockouts for flexible cable entry
• Passive ventilation to prevent condensation buildup
• Wall mount design with external dimensions 200 x 200 x 223 mm (W x H x D)

Specifications

• Brand: ALLNET
• Model: ALL-SO03-4204-03SCHWARZV2
• MPN: ALL-SO03-4204-03SCHWARZV2
• EAN: 4038816252982
• Product Type: DIN Rail Wall Mount Enclosure
• Series: ALLNET SO-DIN-Serie
• Ingress Protection (IP) Rating: IP55
• Material: Powder-coated Sheet Steel
• Colour: Black
• Mounting Type: Wall Mount
• External Width: 200 mm
• External Height: 200 mm
• External Depth: 223 mm
• Door Type: Hinged, Lockable
• Lock Mechanism: Key Lock (2 keys included)
• Cable Entry: Gland Plates / Knockouts
• DIN Rail Support: Yes, for 35mm DIN rail devices
• Usable DIN Rail Length: Approx. 175 mm
• Removable Mounting Plate: Yes
• Ventilation: Passive
• Application Environment: Indoor/Outdoor (Protected)

Tips

For optimal protection, ensure the enclosure is mounted on a flat, stable surface and that all cable glands are properly sealed. Use the included key lock to restrict access to authorized personnel only. Regularly inspect the door seal and ventilation openings to maintain the IP55 rating.
