ALLNET injetor PoE Multi-Gigabit 90W 10G (ALL-PI103MG-BT90-10G)

Power high-performance devices like Wi-Fi 6 access points, PTZ cameras, or small switches with this ALLNET Multi-Gigabit PoE Injector. It delivers up to 90W of power and supports data rates up to 10 Gbps, making it suitable for demanding network installations in offices or industrial environments.

Key specifications

• Supports PoE standards: IEEE 802.3af (15.4W), 802.3at (30W), 802.3bt Type 3 (60W), and Type 4 (90W)
• Multi-Gigabit data rates: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps
• Two RJ45 ports: one data input, one data + power output
• Internal AC/DC power supply, input 100-240V AC, 50/60Hz
• Output voltage: 54V DC
• LED indicators for power, PoE status, and link/activity

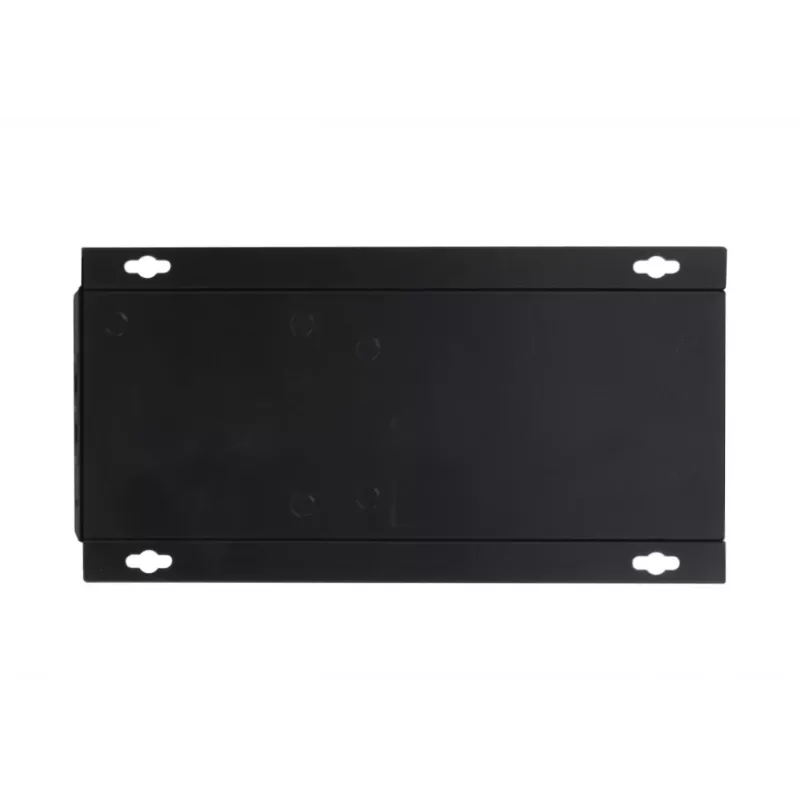

• Metal housing, desktop or wall-mountable
• Operating temperature: 0°C to 50°C; storage temperature: -20°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• Jumbo frame support up to 10KB
• Protection: over-current, over-voltage, short-circuit

Why choose it

This injector combines high power delivery with multi-gigabit speeds, ensuring your devices receive both power and data without bottlenecks. Its metal housing and protection features provide reliability in various conditions.

Ideal use cases

• Powering Wi-Fi 6/6E access points that require up to 90W
• Connecting high-resolution PTZ cameras with heaters or blowers
• Extending network reach to remote devices without nearby power outlets
• Upgrading existing networks to multi-gigabit speeds without replacing switches

Good to know

Installation is plug-and-play; no configuration needed. The injector supports 4-pair PoE, using all four twisted pairs for power delivery, which is required for 60W and 90W output.
