ALLNET Rock Pi Conjunto - Antena 2,4GHz/5.8GHz + Pigtail (RockPi_PT)

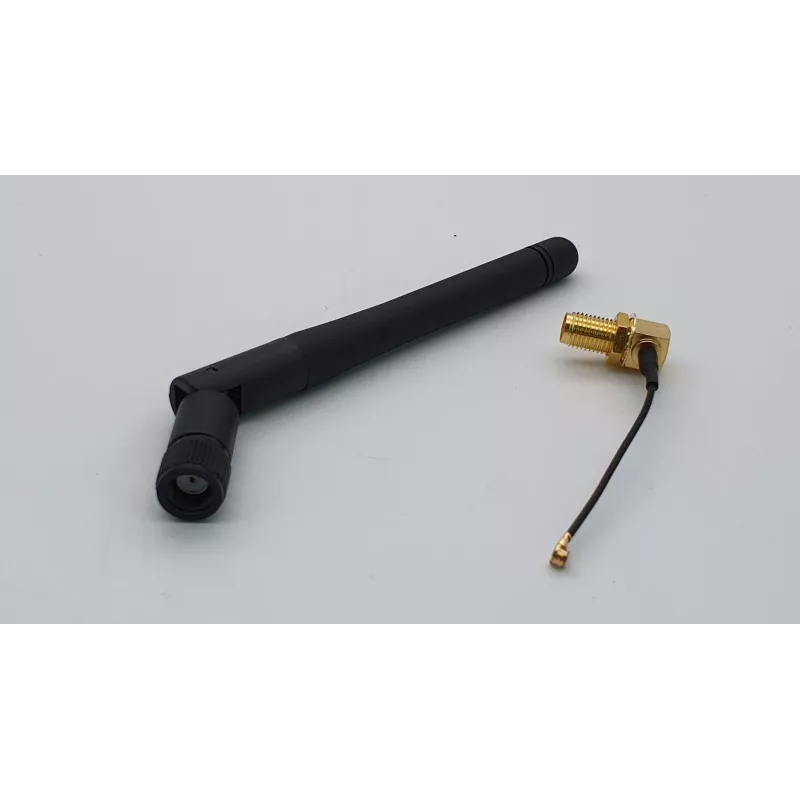

The ALLNET Rock Pi Bundle is a complete antenna and pigtail kit designed specifically for Radxa Rock Pi single board computers. This bundle includes a dual-band external dipole antenna and an IPEX pigtail cable, enabling reliable Wi-Fi and Bluetooth connectivity for your Rock Pi 4, Rock Pi 5, or Rock Pi S. The antenna operates on both 2.4 GHz and 5.8 GHz frequency bands, providing flexible wireless options for various applications.

Advantages

This bundle offers a simple and effective solution to enhance the wireless capabilities of your Rock Pi board. The included antenna and pigtail are matched for optimal performance, ensuring low VSWR and high efficiency. The omnidirectional radiation pattern provides consistent coverage, while the vertical linear polarization ensures compatibility with standard Wi-Fi and Bluetooth devices. The compact pigtail cable (100 mm) allows easy routing inside enclosures.

Suitable for

• Radxa Rock Pi 4, Rock Pi 5, Rock Pi S single board computers
• IoT projects requiring Wi-Fi or Bluetooth connectivity
• Embedded systems where external antenna is needed for better range
• DIY projects and prototyping with Rock Pi boards

Key specifications

• Frequency Bands: 2.4 GHz, 5.8 GHz
• Antenna Gain: 2 dBi (typical)
• Antenna Type: External Dipole Antenna
• Antenna Connector: RP-SMA Male
• Pigtail Connector (to Antenna): RP-SMA Female
• Pigtail Connector (to Board): U.FL / IPEX
• Pigtail Cable Length: 100 mm
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Vertical Linear
• Radiation Pattern: Omnidirectional
• Color: Black
• Operating Temperature: -20°C to +65°C
• Kit Contents: 1x Dual Band Antenna, 1x IPEX Pigtail Cable

Recommendations

For optimal performance, mount the antenna in a clear location away from metal objects. Ensure the pigtail is securely connected to the board's U.FL connector. This bundle is ideal for extending the wireless range of your Rock Pi in home automation, media centers, or network applications.
