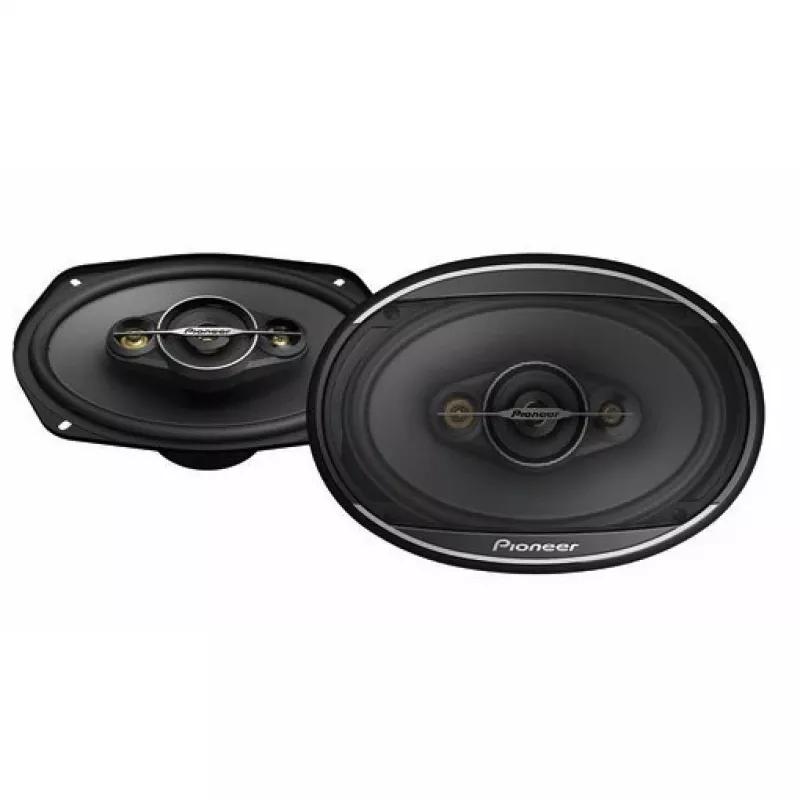

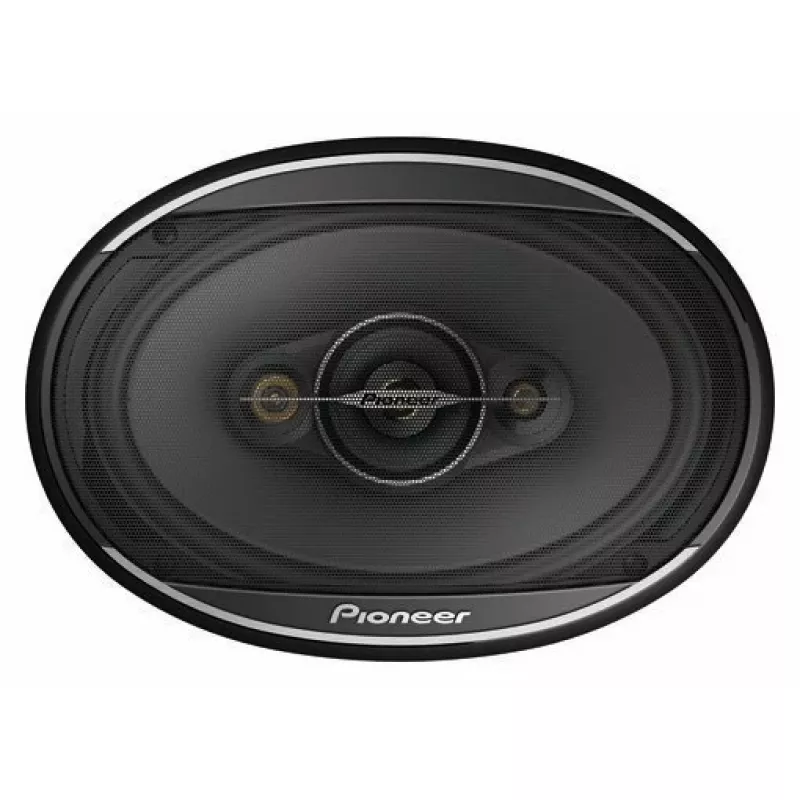

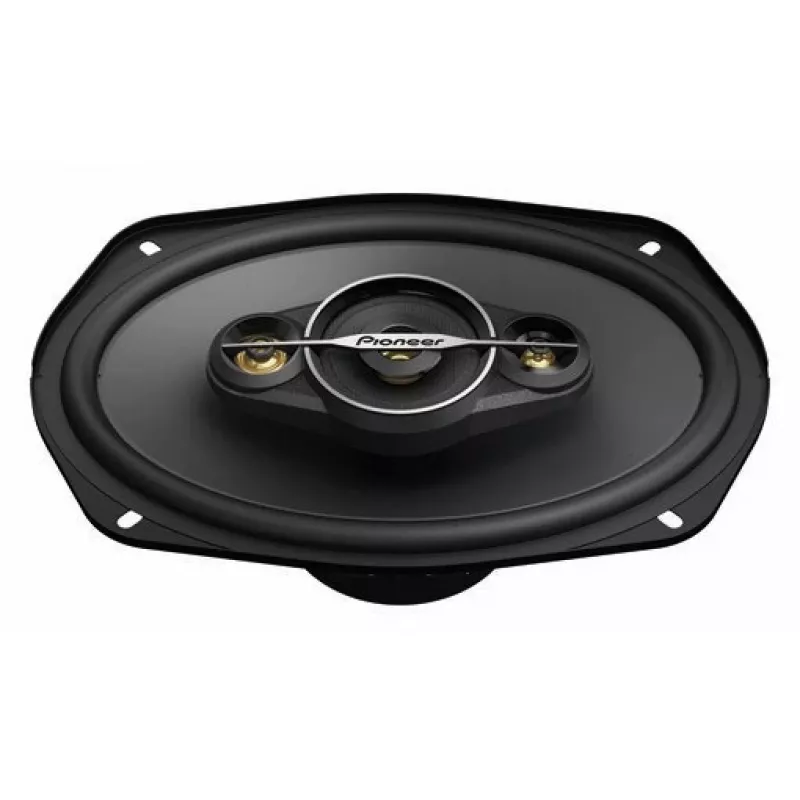

Altifalantes para automóvel Pioneer TS-A 6961F 450 W

The Pioneer TS-A 6961F 450 W is a 4-way car speaker designed to deliver clear, balanced sound for in-vehicle audio systems. With a peak power of 450 W and a rated (RMS) power of 90 W per speaker, the TS-A 6961F combines a large 6 x 9 inch woofer area with multiple drivers to reproduce a wide frequency range. The pack contains two speakers and the shallow 6 cm mounting depth makes them compatible with many vehicle doors and rear decks where space is limited.

Advantages

The multi-driver 4-way design separates low, mid and high frequencies to reduce distortion and improve clarity across the soundstage. A relatively high peak power rating provides headroom for dynamic peaks, while the rated power gives a stable output for continuous use. The 6 x 9 inch woofer surface ensures better low-frequency response than smaller coaxial speakers, and the 6 cm mounting depth allows installation in vehicles with shallow speaker cavities. The set includes two speakers for left and right channels, enabling a balanced stereo upgrade.

Suitable for

• Passenger cars and hatchbacks with 6 x 9 inch speaker openings
• Replacing factory rear deck or door speakers for improved audio
• Systems that need higher peak power handling for dynamic music
• Installations with limited mounting depth (approximately 6 cm)

Key specifications

• Speaker type: 4-way car speaker
• Woofer size: 6 x 9 inches (approx. 150 x 230 mm)
• Peak power: 450 W (per speaker)
• Rated (RMS) power: 90 W (per speaker)
• Mounting depth: 6 cm
• Configuration: two speakers included (stereo pair)

How to use

Verify that your vehicle has compatible 6 x 9 inch mounting locations and sufficient speaker cutout dimensions. Disconnect the vehicle battery before starting installation to avoid short circuits. Remove the existing speaker grilles and old speakers, then connect the TS-A 6961F wiring to the car’s speaker leads, observing correct polarity. Secure the speakers using appropriate screws and mounting hardware, ensuring the 6 cm depth fits without interfering with door mechanisms or rear deck structures. After installation, reconnect the battery and test at low volume, gradually increasing to check for proper operation and absence of rattles or mechanical interference.

Recommendations

For consistent sound quality and speaker longevity, use an amplifier or head unit that supplies clean power near the rated RMS level rather than relying on maximum peak power; this helps avoid distortion and thermal stress. If you hear vibrations or rattles after installation, inspect door panels and trim, and apply damping material where necessary to improve bass response and reduce structural noise.
