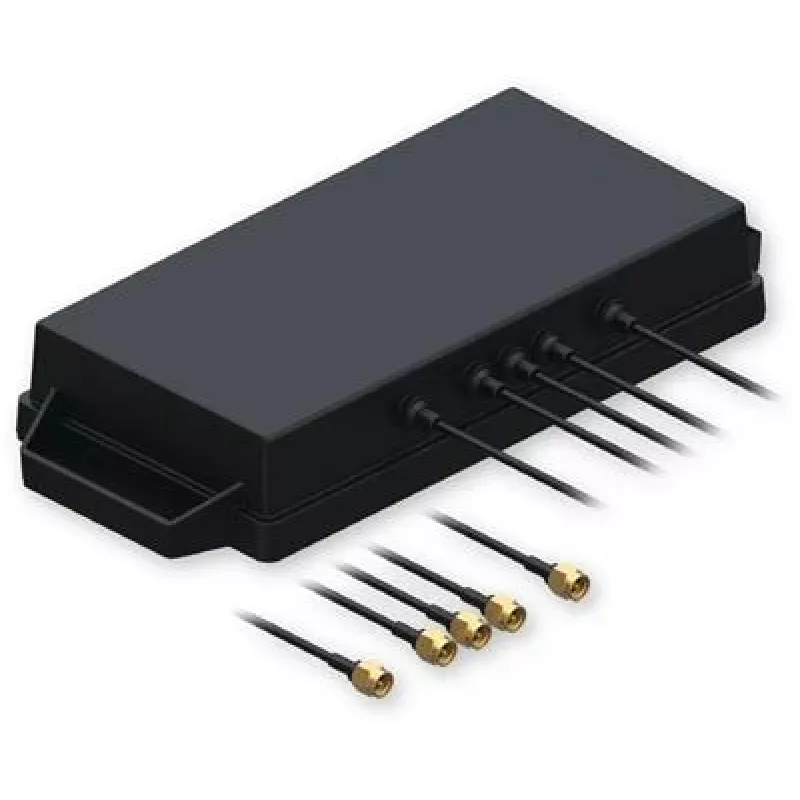

Antena combinada Teltonika 5G/GNSS com conectores SMA - cabo de 3 m - preto

The Teltonika 5G/GNSS Combo Antenna is a high-performance, multi-purpose antenna designed for seamless connectivity in demanding environments. It integrates two cellular antennas for 5G/4G/LTE and one GNSS antenna for GPS/GLONASS/Galileo/BeiDou, all in a compact, adhesive-mount housing. With IP67 protection and a wide operating temperature range, it is ideal for outdoor and industrial applications.

Advantages

This combo antenna simplifies installation by combining three antennas into one unit, reducing cable clutter and mounting points. It delivers reliable cellular performance across multiple frequency bands, including 5G NR, and provides accurate GNSS positioning with a built-in LNA. The 3-meter RG174 cables offer flexibility in placement, while the adhesive mount ensures secure attachment on flat surfaces.

Suitable for

• Teltonika Networks 5G routers and gateways
• Industrial IoT and M2M applications
• Remote monitoring and telematics systems
• Outdoor and mobile installations requiring robust connectivity

Key specifications

• Antenna Type: 5G/GNSS Combo
• Cellular Frequency Bands: 617-960 MHz, 1710-2690 MHz, 3300-4200 MHz, 4400-5000 MHz
• GNSS Frequency: 1575.42 MHz (L1), 1561 MHz (B1), 1602 MHz (G1)
• Peak Gain (Cellular): Up to 4 dBi
• LNA Gain (GNSS): 28 ± 2 dB
• Connectors: 2x SMA Male (Cellular), 1x SMA Male (GNSS)
• Cable Length: 3 m per cable (RG174)
• Impedance: 50 Ohm
• VSWR (Cellular): < 2.5:1
• Polarization: Linear (Cellular), RHCP (GNSS)
• Mounting: Adhesive
• Ingress Protection: IP67
• Operating Temperature: -40°C to +85°C
• Elements: 3 (2x Cellular, 1x GNSS)

Recommendations

For optimal performance, mount the antenna on a clean, flat surface with clear sky view for GNSS. Ensure cables are routed without sharp bends. Compatible with Teltonika RUTX50, RUT955, and other 5G devices with SMA connectors.
