Antena DeLOCK 12614

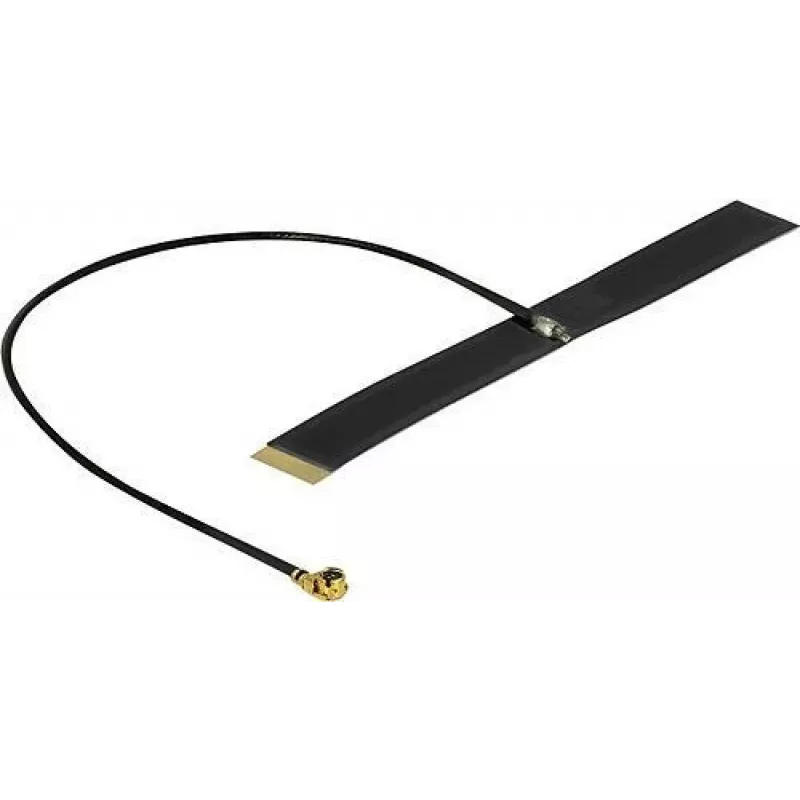

The DeLOCK 12614 LPWAN antenna is designed for indoor use and supports operation within the 0.863–0.928 GHz frequency range. It is compatible with LPWAN technologies and standards such as GSM, LTE, ZigBee, Z‑Wave, NB‑IoT, ISM and LoRa. The compact black antenna features a 0.15 m cable, MHF connector, 50 Ω impedance and a maximum gain of 0.38 dBi, making it suitable for integration into various networked devices.

Advantages

The antenna offers a compact form factor and a low-profile design that fits confined spaces. With a frequency range covering 863–928 MHz it supports multiple LPWAN and short-range cellular standards. The included 0.15 m cable and MHF connector provide simple connection to compatible modules and devices. Low impedance (50 Ω) and specified gain (0.38 dBi) ensure predictable RF behaviour in supported setups.

Suitable for

• Indoor LPWAN installations using LoRa or NB‑IoT
• Short-range cellular links such as GSM or LTE in the 863–928 MHz band
• Wireless sensor networks using ZigBee or Z‑Wave
• ISM band applications within the specified frequency range

Key specifications

• Frequency band: 0.863–0.928 GHz
• Antenna gain (max): 0.38 dBi
• Impedance: 50 Ω
• Connector type: MHF
• Cable length: 0.15 m
• Colour: Black
• Dimensions (W × D): 10 mm × 79 mm
• Manufacturer: DELOCK, MPN 12614, EAN 4043619126149

How to use

Connect the MHF connector to a compatible radio module or device ensuring the connector is fully seated. Position the antenna indoors where it has minimal metallic obstruction and where the required 863–928 MHz coverage is needed. Route the 0.15 m cable without sharp bends and secure the antenna in the chosen location. Verify RF performance with appropriate testing equipment or device signal indicators.

Recommendations

For best results place the antenna away from large metal objects and sources of interference. Confirm that the target network operates within the 0.863–0.928 GHz range and use a properly matched connector and cable to preserve 50 Ω impedance.
