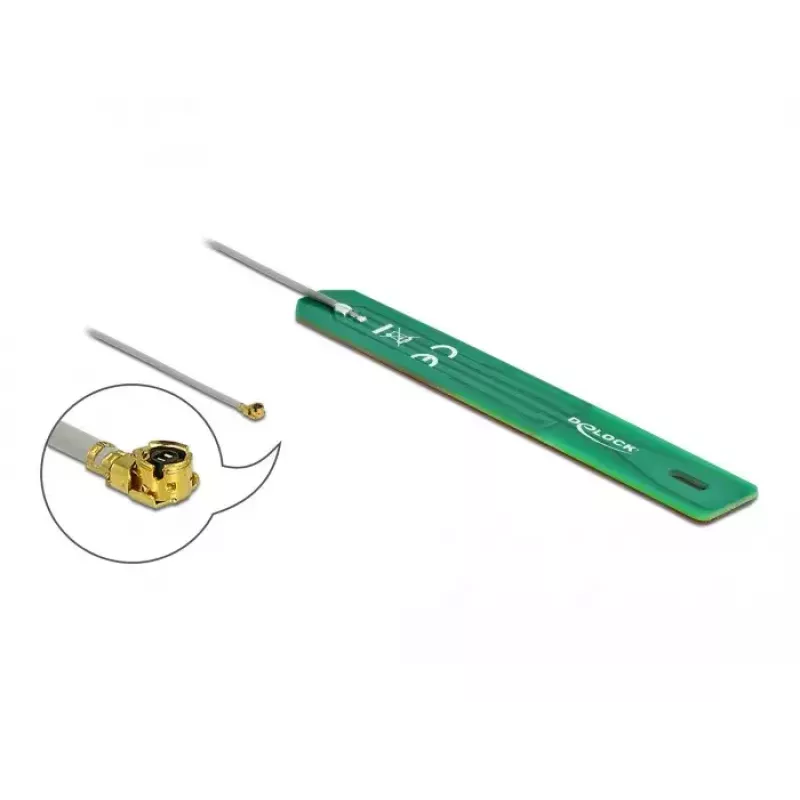

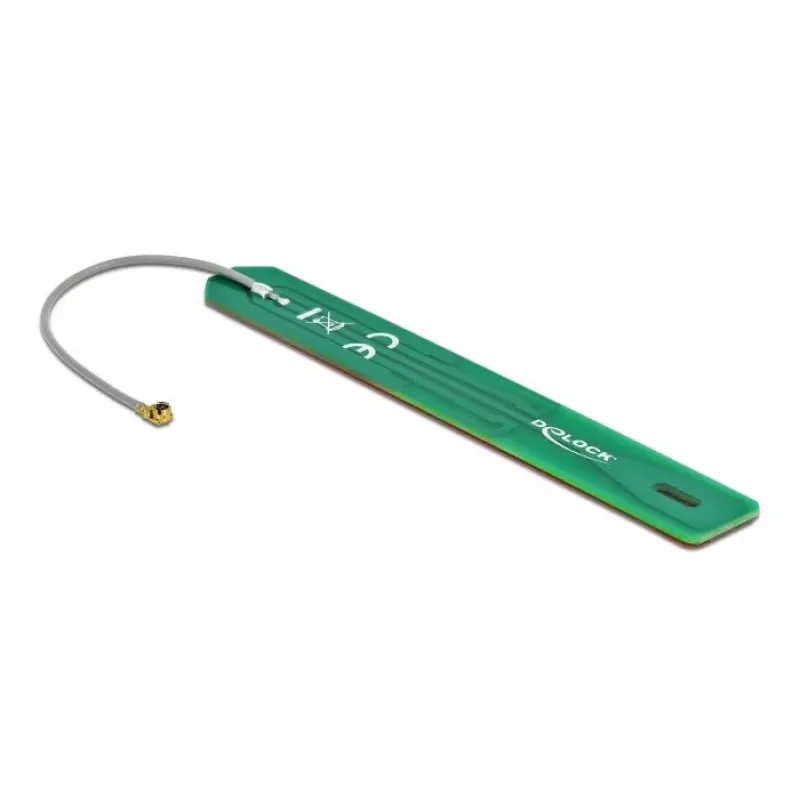

Antena DeLOCK 12692

The DeLOCK 12692 antenna is designed for indoor use in the 880–960 MHz frequency range and supports LPWAN network applications. It has a maximum gain of 2 dBi, a 50 Ω impedance and uses an MHF connector. The compact coaxial cable length of 0.07 m and small dimensions make it suitable for installations with limited space.

Advantages

The antenna provides stable reception within the 0.88–0.96 GHz band and a low-profile form factor for discreet placement. With a 50 Ω impedance and an MHF connector it is compatible with devices requiring these interface characteristics. Its short coaxial cable and compact size simplify mounting inside enclosures or on circuit boards.

Suitable for

• Indoor LPWAN devices operating in the 880–960 MHz band
• Compact electronic enclosures and small form-factor installations
• Applications requiring a 50 Ω antenna interface and MHF connector

Key specifications

• Model: DeLOCK 12692
• Frequency band: 0.88 - 0.96 GHz
• Gain (max): 2 dBi
• Impedance: 50 Ω
• Connector type: MHF
• Coaxial cable length: 0.07 m
• Dimensions (W × D × H): 13 × 95.2 × 1.2 mm
• Colour: Green, Grey
• Package: Polybag, single unit

How to use

Connect the MHF connector to the corresponding antenna port of the device, ensuring a secure fit. Place the antenna inside the enclosure or near the device where it has clear exposure to the environment for optimal reception. Avoid sharp bends in the coaxial cable and mount the antenna so it does not contact conductive surfaces that could detune the antenna.

Recommendations

For best LPWAN performance, position the antenna with a clear line of sight to the base station when possible and avoid surrounding metallic shielding. Verify device compatibility with a 50 Ω MHF interface before installation.
