Antena DeLOCK 86286

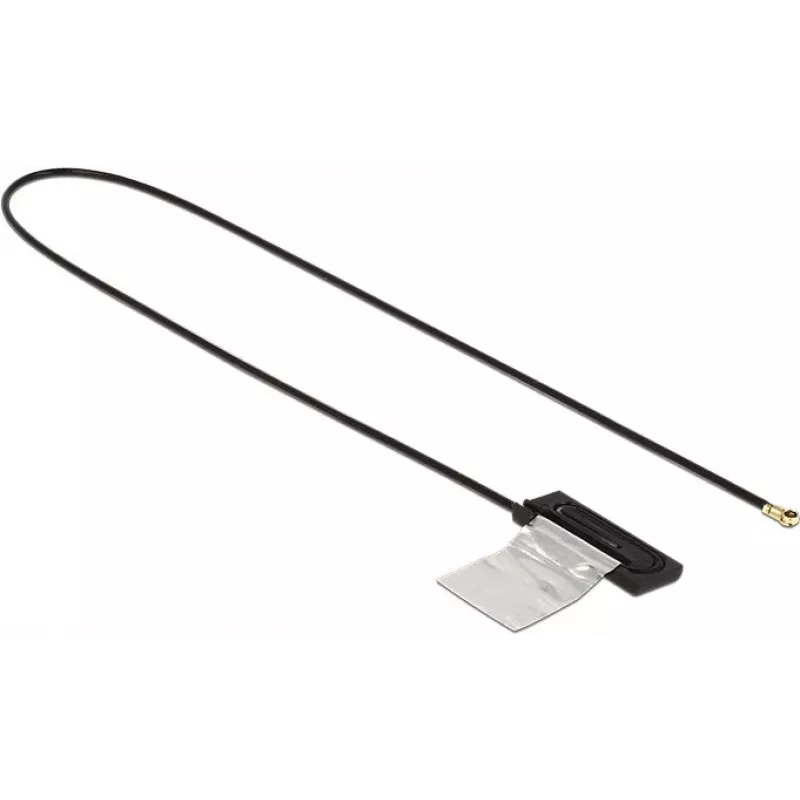

The DeLOCK 86286 WLAN antenna is a compact external antenna designed for integration into devices with MHF IV / HSC MXHP32 compatible connectors. It covers dual frequency bands for Wi‑Fi operation and supports multiple IEEE 802.11 standards for both transmission and reception of wireless signals.

Advantages

The antenna provides a small form factor with a 0.25 m cable and a male MHF connector, enabling easy installation inside equipment. It offers a balanced performance across common 2.4 GHz and 5 GHz Wi‑Fi bands with a nominal gain of 1 dBi, and its black housing suits a variety of device designs.

Suitable for

• Embedded Wi‑Fi modules and wireless routers with MHF IV / HSC MXHP32 interfaces
• IoT devices and industrial equipment requiring compact external antennas
• Upgrading or replacing small form‑factor antennas in laptops, mini‑PCs, or access points

Key specifications

• Frequency range: 2.4 – 2.4835 GHz and 5.15 – 5.875 GHz
• Antenna gain: 1 dBi (maximum)
• Connector type: MHF (male)
• Cable length: 0.25 m
• Colour: Black
• Dimensions (W × D × H): 20 × 7 × 1.9 mm

How to use

Connect the male MHF connector to the corresponding MHF IV / HSC MXHP32 female socket on the host device. Route the 0.25 m cable and position the antenna inside the device or enclosure to achieve the desired orientation for signal reception and transmission. Ensure the connector is seated securely and that the antenna and cable do not interfere with other components.

Recommendations

For optimal wireless performance, position the antenna away from large metal surfaces and sources of electromagnetic interference. Verify compatibility with the device’s connector standard before installation and avoid sharp bends in the cable to maintain signal integrity.
