Antena omnidirecional DeLOCK 12409

The DeLOCK 12409 is an omni-directional antenna designed to improve reception across multiple LTE and Wi‑Fi frequency bands. With a maximum gain of 4 dBi and a compact form factor (39.8 × 156.2 × 13.5 mm), it connects via an RP‑SMA connector and supports a wide range of mobile and wireless standards including LTE, Bluetooth, UMTS, GSM, WLAN (dual band) and ZigBee.

Advantages

This antenna offers omni-directional coverage with a 4 dBi gain suitable for indoor installation. It covers multiple frequency ranges (0.698–0.791 / 0.824–0.96 / 1.71–2.17 / 2.4–2.5 / 5.15–5.875 GHz), provides a compact footprint for flexible placement, and uses an RP‑SMA connector for straightforward integration. Its specified VSWR range (2.5:1–5.0:1) indicates design characteristics for efficient signal transmission across supported bands.

Suitable for

• Improving indoor LTE signal reception
• Enhancing Wi‑Fi coverage on 2.4 GHz and 5 GHz bands
• Connecting devices using Bluetooth, UMTS or GSM frequencies
• Supporting ZigBee and other low‑power wireless systems

Key specifications

• Model: DeLOCK 12409
• Antenna type: omni‑directional
• Gain (max): 4 dBi
• Frequency bands: 0.698–0.791 / 0.824–0.96 / 1.71–2.17 / 2.4–2.5 / 5.15–5.875 GHz

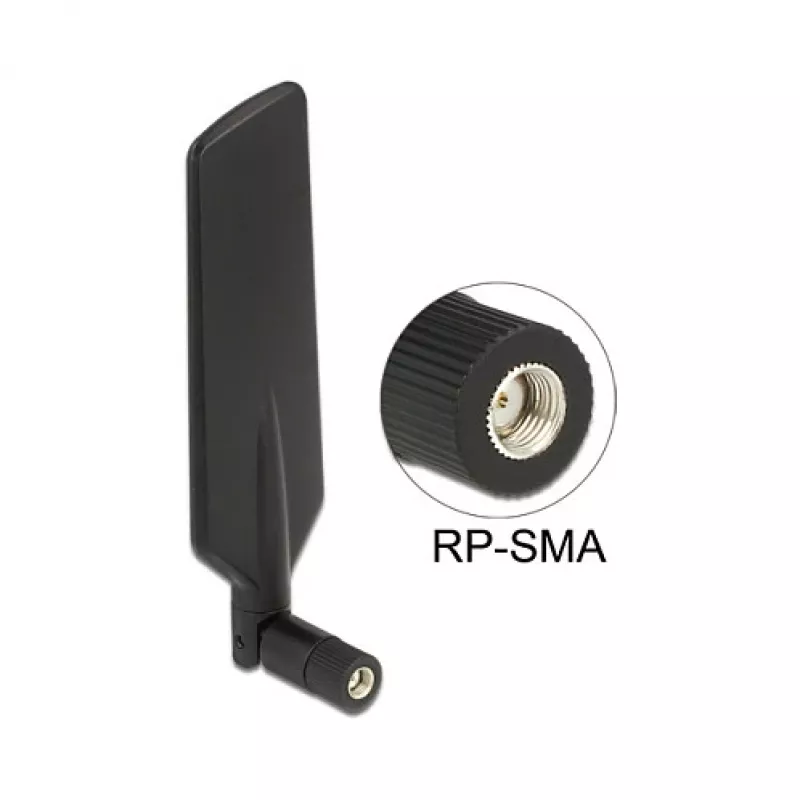

• Connector: RP‑SMA

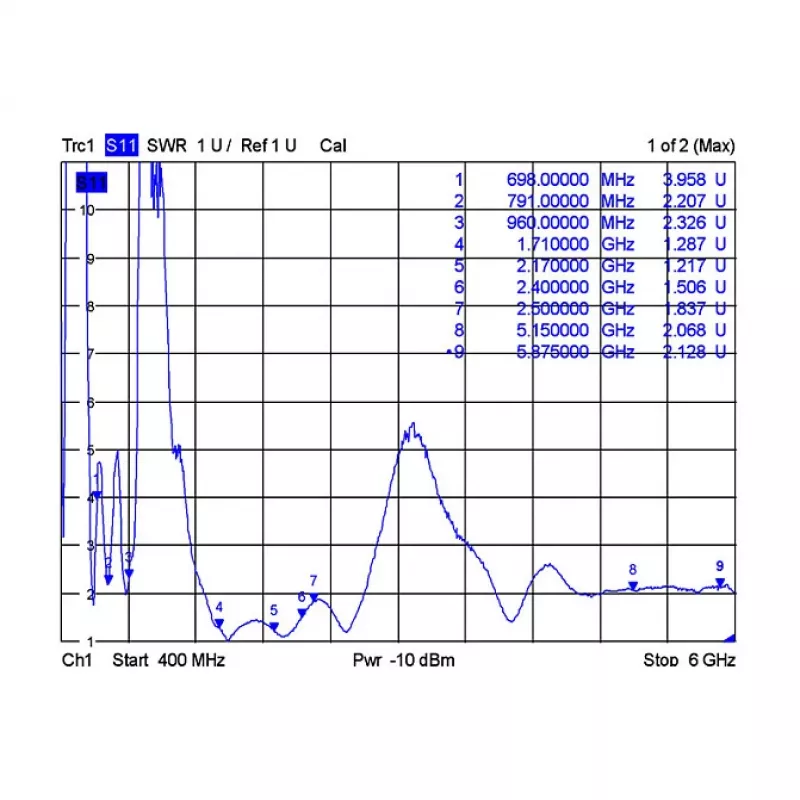

• VSWR: 2.5:1 – 5.0:1

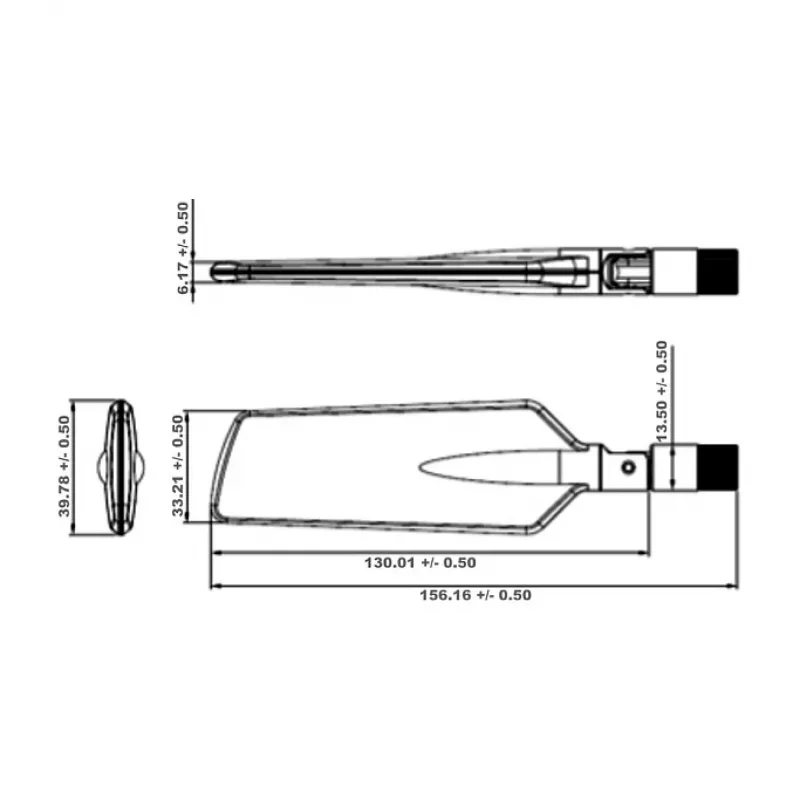

• Dimensions (W × D × H): 39.8 × 156.2 × 13.5 mm
• Brand: DELOCK
• MPN: 12409
• EAN: 4043619124091

How to use

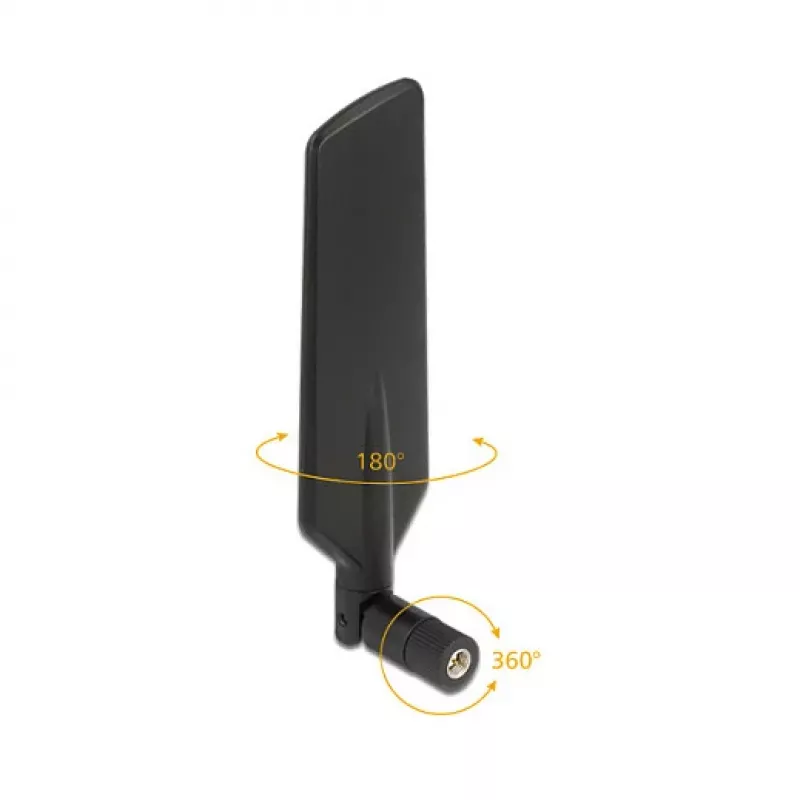

Mount the antenna indoors where reception is needed and connect it to a compatible RP‑SMA socket on your router, modem or wireless device. Orient the antenna vertically for typical omni‑directional coverage. After connection, verify device settings and perform a signal check to confirm improved reception on the intended frequency bands.

Recommendations

Place the antenna away from large metal objects and sources of electromagnetic interference. For best results, test different indoor positions and heights to find the optimal location for stable LTE and Wi‑Fi performance.
