Antena omnidirecional DeLOCK 12417

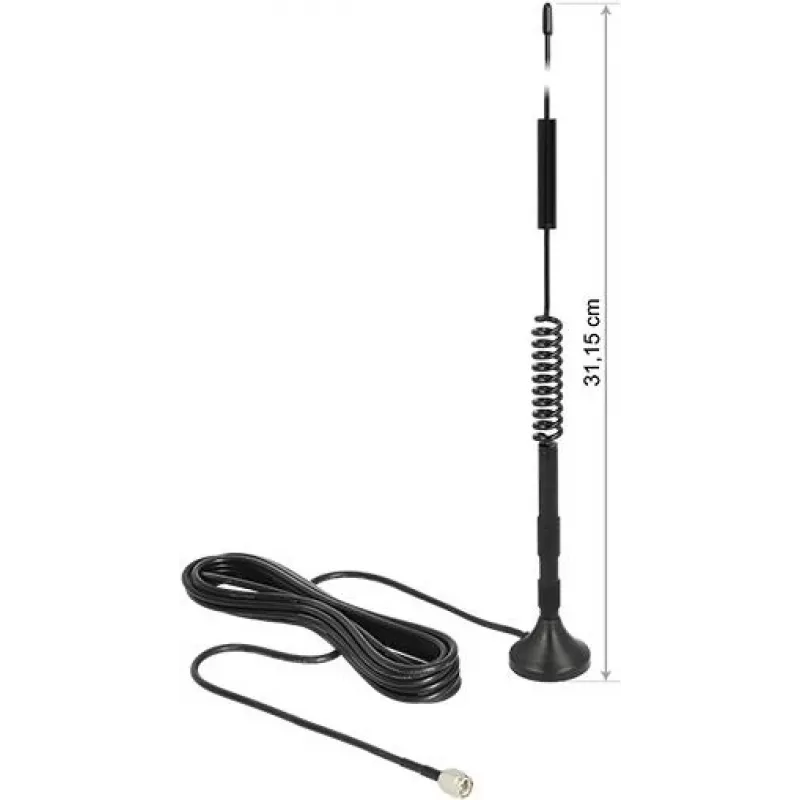

The DeLOCK 12417 omni-directional antenna provides multi-band support for indoor and outdoor wireless use. It covers frequency ranges of 0.7–0.96 GHz and 1.71–2.7 GHz, has a maximum gain of 5 dBi, 50 Ω impedance and vertical polarization. Compact dimensions (29 × 29 × 311.5 mm) and a black finish make it suitable for discreet installation. The antenna is compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z‑Wave and LoRa (868/915 MHz) applications.

Advantages

The omni-directional design offers broad area coverage without the need for precise aiming, while the dual frequency ranges support multiple wireless standards. With a 5 dBi gain and 50 Ω impedance it integrates with common radio equipment. Its compact form factor and included polybag packaging simplify transport and installation.

Suitable for

• GSM and UMTS cellular signal reception
• Bluetooth and ZigBee short-range wireless networks
• WLAN 2.4 GHz access points and clients
• DECT and Z‑Wave devices
• LoRa deployments operating at 868 MHz or 915 MHz

Key specifications

• Frequency band: 0.7 - 0.96 / 1.71 - 2.7 GHz
• Max. antenna gain: 5 dBi
• Impedance: 50 Ω
• Polarization: vertical
• Colour: black
• Dimensions (W × D × H): 29 × 29 × 311.5 mm
• Packaging: polybag

How to use

Mount the antenna in a location with good line-of-sight to the intended coverage area. Connect the antenna to compatible radio equipment using the appropriate cable and connector (not included). Ensure the antenna is vertically oriented to match its polarization. For outdoor installations, use weatherproof connectors and mounting hardware as required by the site.

Recommendations

For best performance, place the DeLOCK 12417 as high as practical and away from large metal objects or sources of interference. Verify compatibility with your device’s frequency bands and connector type before installation.
