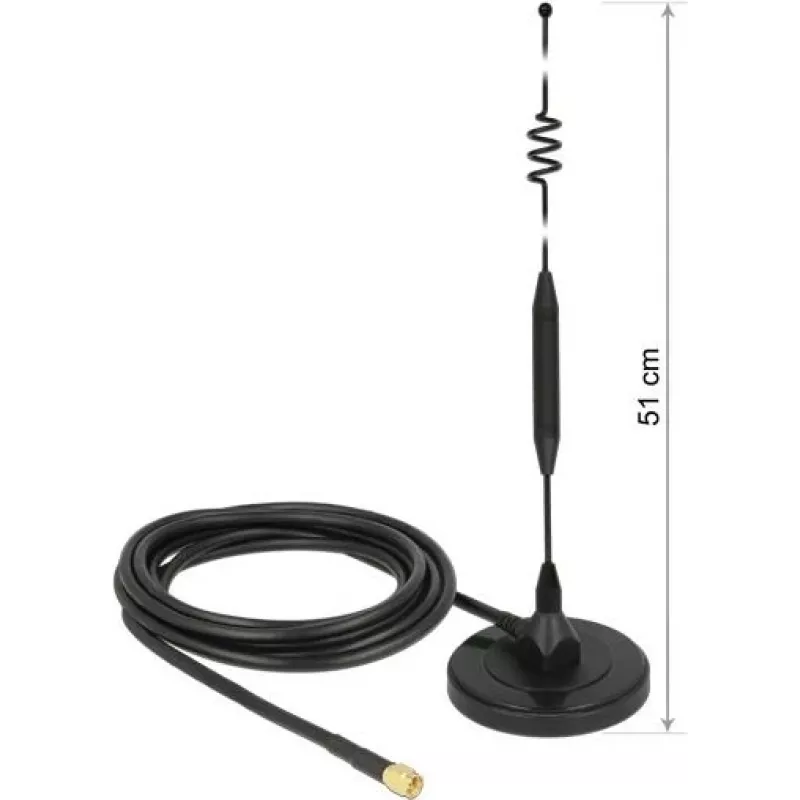

Antena omnidirecional DeLOCK 12429

The DeLOCK 12429 omni-directional antenna provides multi-band LTE reception and is compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa (868 / 915 MHz). It has a maximum gain of 6 dBi, vertical polarization and an SMA connector. With compact dimensions (80 × 80 × 510 mm) and support for frequency ranges 0.800–0.960 GHz and 1.710–2.700 GHz, the antenna is suitable for improving signal reception indoors and outdoors.

Advantages

The antenna supports multiple mobile and wireless standards, offering broad compatibility across LTE bands and short-range protocols. Its omni-directional pattern and 6 dBi gain provide consistent coverage without the need for precise alignment. The SMA connector and compact form factor make installation flexible and suitable for various mounting locations.

Suitable for

• Extending LTE reception for routers and gateways
• Improving GSM/UMTS signal quality
• Enhancing WLAN 2.4 GHz and Bluetooth coverage
• Supporting IoT protocols such as ZigBee, Z-Wave and LoRa
• Use with systems requiring vertical polarization and SMA connector

Key specifications

• Frequency band: 0.800 - 0.960 / 1.710 - 2.700 GHz
• Antenna gain (max): 6 dBi
• Polarization: vertical
• Connector: SMA
• Colour: black
• Dimensions (W × D × H): 80 × 80 × 510 mm

How to use

Connect the antenna to the SMA antenna port of your router, gateway or radio device. Place the antenna vertically for correct polarization and mount it where it has the least obstruction for better omnidirectional coverage. Verify device settings and, if applicable, select the appropriate frequency band or band aggregation options in your modem or router menu.

Recommendations

For optimal performance, position the antenna away from large metal surfaces and other strong RF sources. Outdoor mounting or mounting at a higher location can improve reception for distant base stations; ensure the SMA connection is tightened and weatherproofed if used outdoors.
