Antena omnidirecional DeLOCK 89614

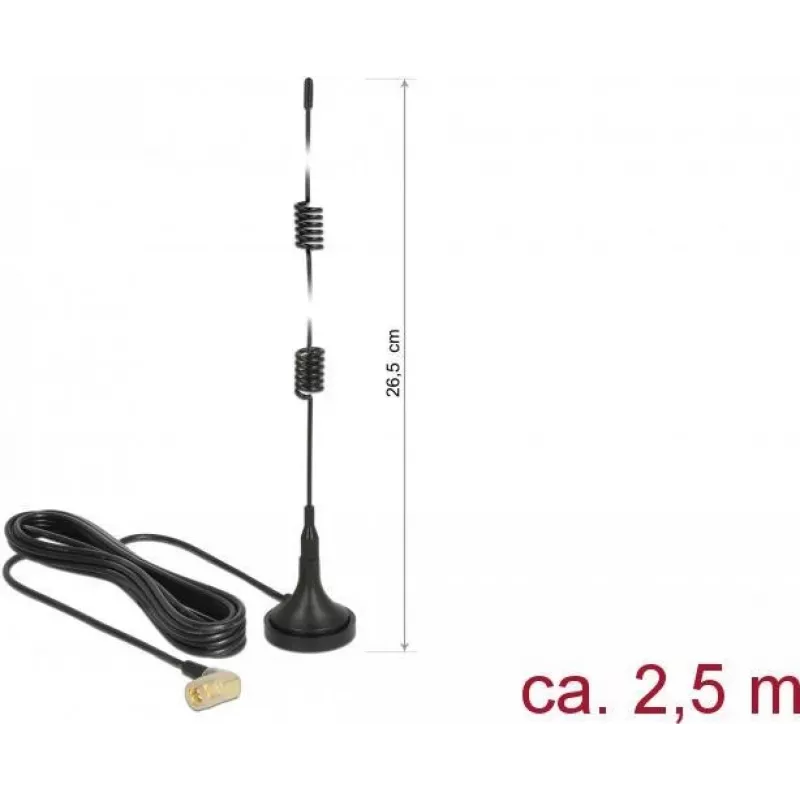

The DeLOCK 89614 omni-directional antenna supports multiple cellular and short-range wireless standards across low and mid frequency ranges. With operation from 0.69–0.96 GHz and 1.71–2.7 GHz, 50 Ω impedance and 2.5 dBi gain, the antenna is compatible with LTE bands as well as GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, NB-IoT, ISM and LoRa (868 / 915 MHz). Its compact black housing (265 mm height, 3.26 cm diameter) enables simple installation indoors or outdoors.

Advantages

The omni-directional design provides broad-area reception and transmission without the need for precise alignment. Dual frequency coverage (0.69–0.96 GHz and 1.71–2.7 GHz) makes the antenna suitable for a wide range of wireless technologies. A standardized 50 Ω impedance and linear polarization ensure compatibility with common radio equipment. The compact form factor and lightweight construction simplify mounting and integration into existing setups.

Suitable for

Key specifications

How to use

Mount the antenna in a location with minimal obstructions for optimal omni‑directional coverage. Connect to the radio device using the appropriate coaxial cable and connector compatible with the equipment’s 50 Ω port. Verify the device’s supported frequency bands and ensure the antenna orientation is vertical to match linear polarization. For outdoor use, confirm that the mounting and cable routing provide adequate weather protection for connectors and feedlines.

Recommendations

For best performance, place the antenna as high as practical and away from large metallic objects. When used with multi‑band devices, check that the device supports the same frequency ranges listed above to ensure compatibility.
