Antena omnidirecional QuWireless QuSpot

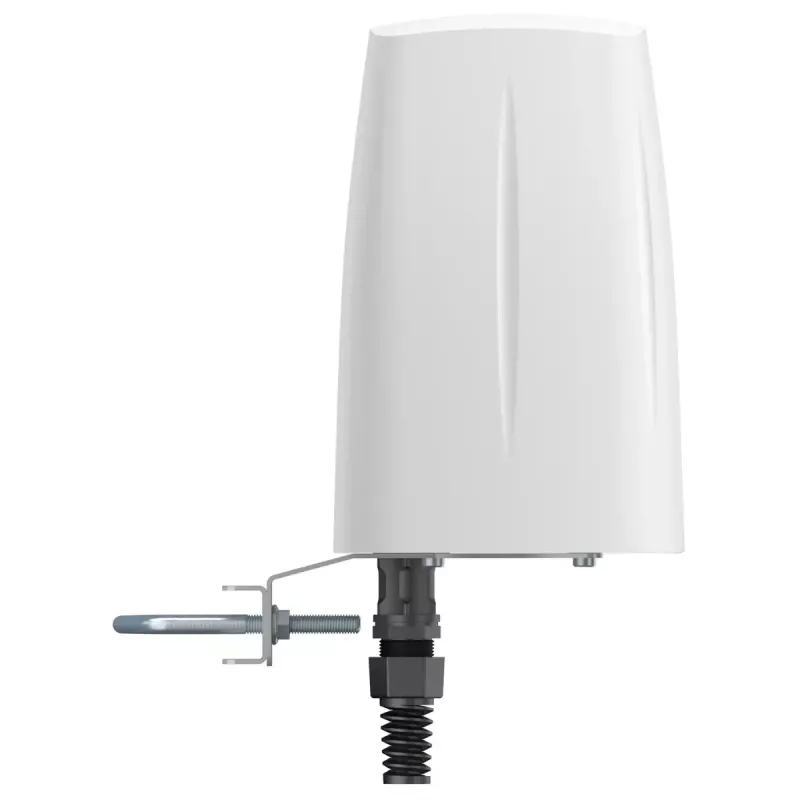

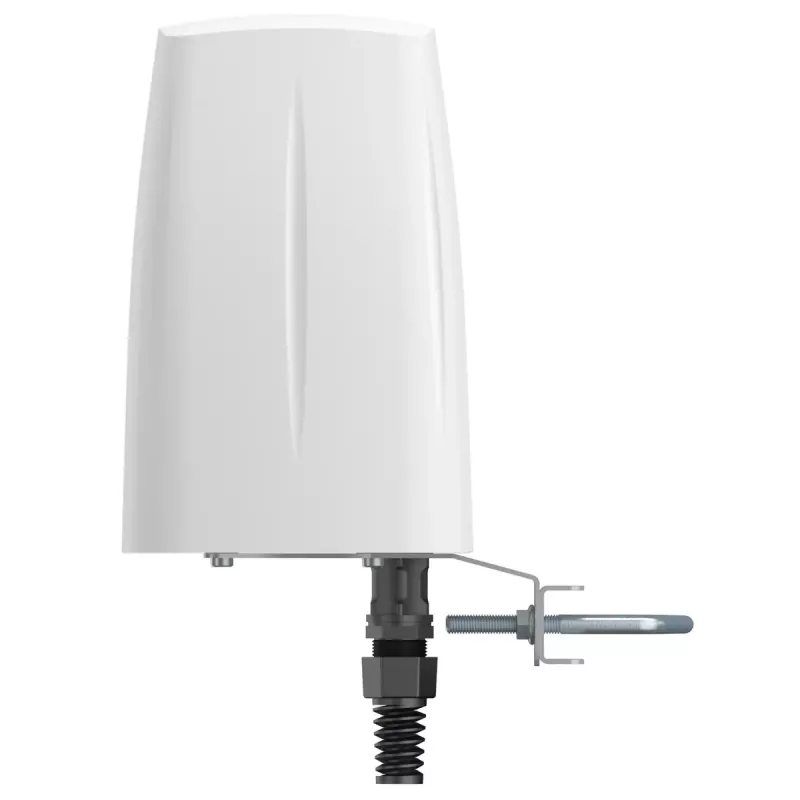

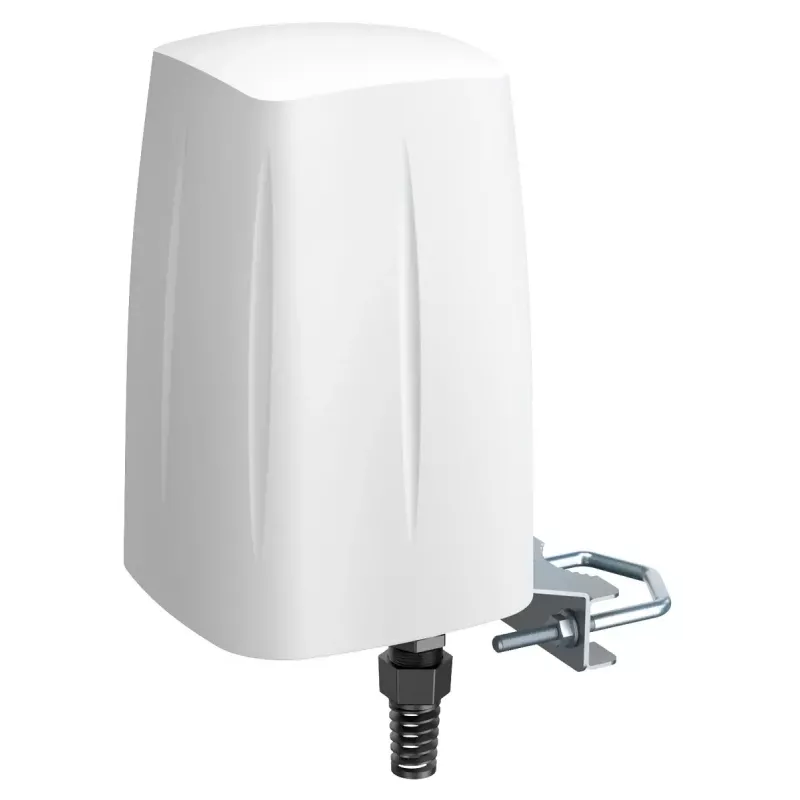

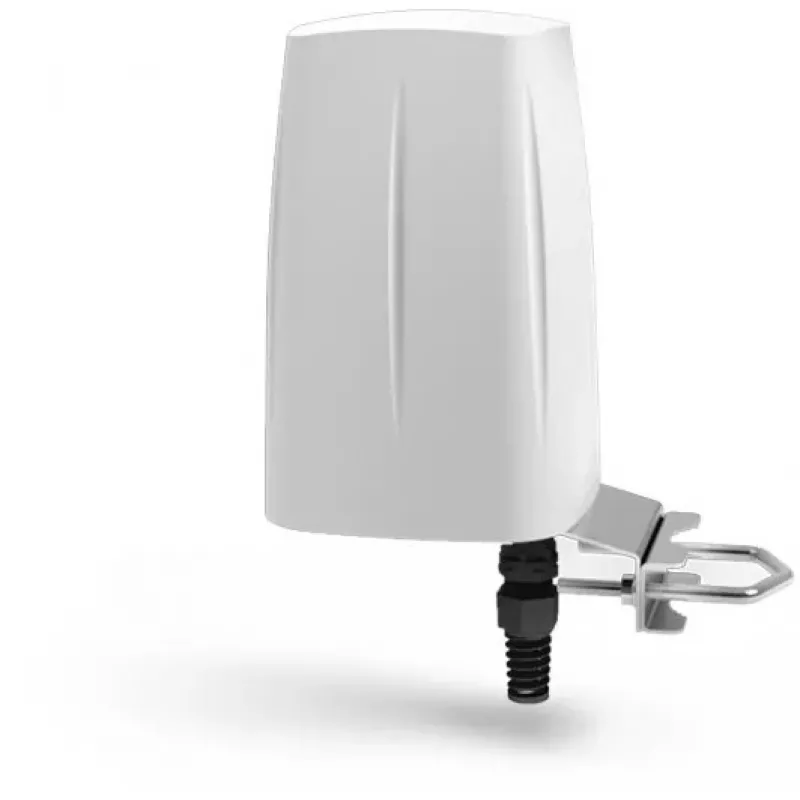

The QuWireless QuSpot is an omni-directional LTE antenna with an integrated enclosure designed to house a Teltonika TRB140 router, creating an all-in-one outdoor communications unit. It covers multi-band cellular frequencies (0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz), provides up to 4 dBi gain, uses vertical polarization and supports PoE/LAN connections. Its compact dimensions (160 × 160 × 240 mm) and white housing make it suitable for installations where a combined router-and-antenna solution is required.

Advantages

The QuSpot combines a multi-band omni antenna and a mounting enclosure for the Teltonika TRB140 into a single weatherproof unit, simplifying outdoor installation and reducing cable runs. Its omni-directional pattern improves coverage around the installation point, and the 4 dBi gain supports stable cellular connectivity across the supported bands. Compact size and PoE/LAN compatibility allow flexible placement and easy integration with existing networks.

Suitable for

• Outdoor mobile and fixed installations
• Industrial sites and CCTV network backhaul
• Hotspots and public access points
• Yachts, boats, campers and RVs
• Remote telemetry and M2M deployments

Key specifications

• Frequency bands: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz
• Maximum gain: 4 dBi
• Polarization: vertical
• Connections: PoE / LAN (for TRB140 integration)
• Dimensions: 160 × 160 × 240 mm
• Weight: 1.5 kg
• Colour: white
• Manufacturer part number (MPN): A140S

How to use

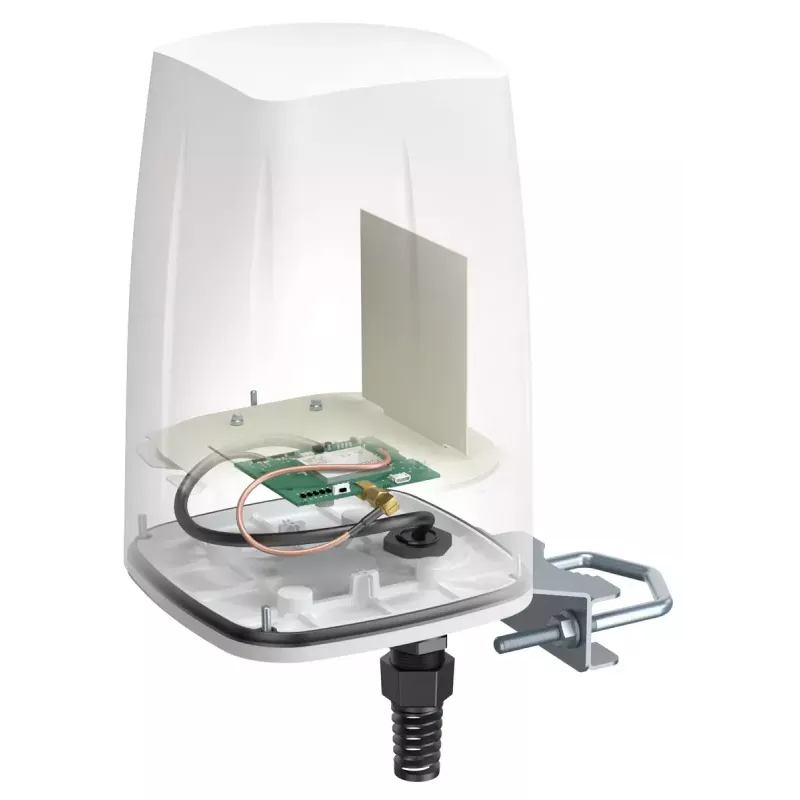

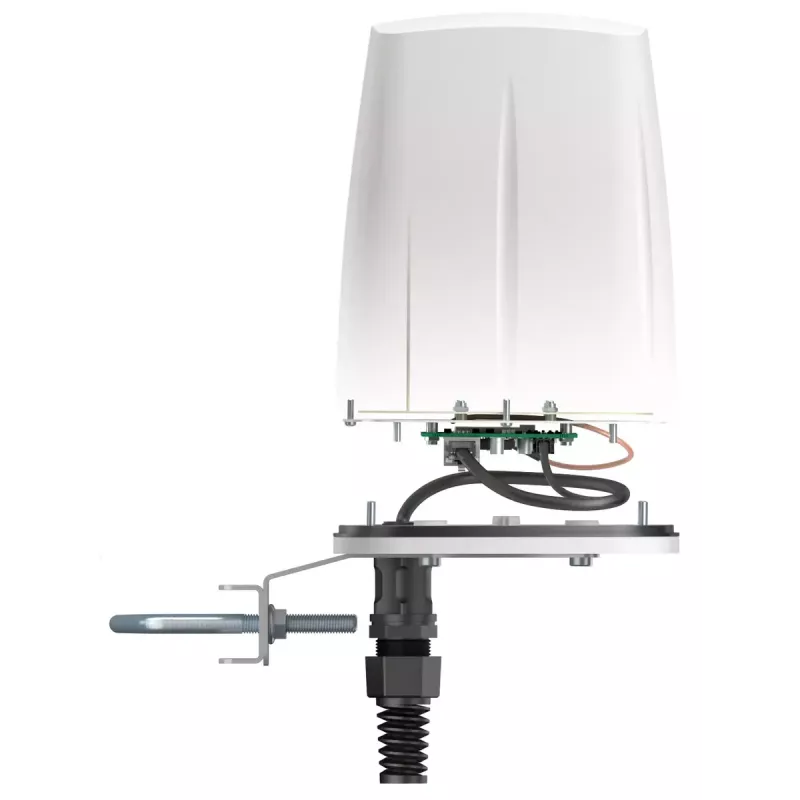

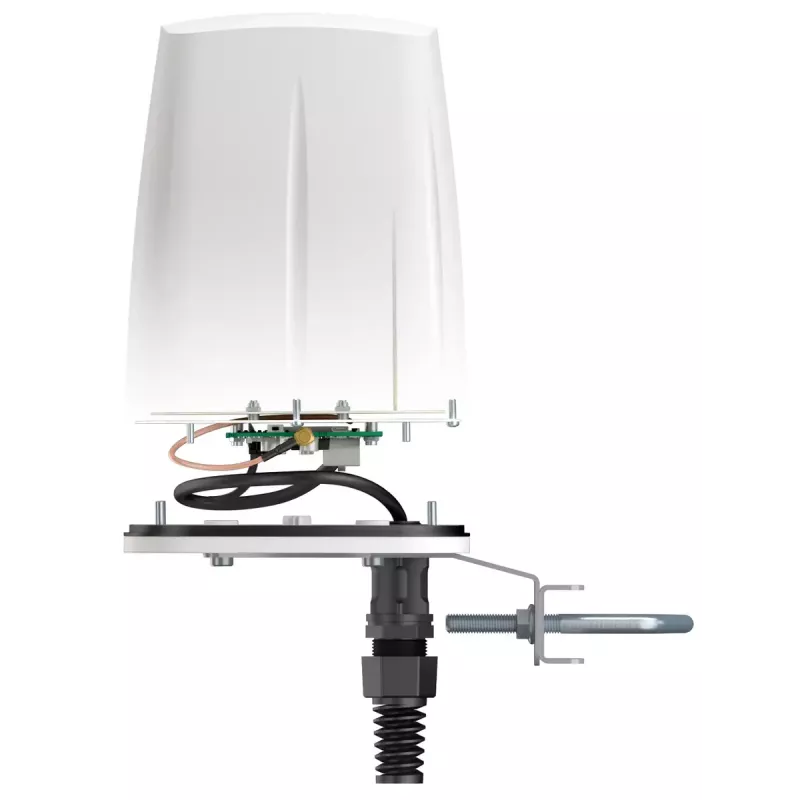

Install the Teltonika TRB140 router inside the QuSpot enclosure following the manufacturer's instructions for securing the device. Mount the assembled unit outdoors in a location with clear exposure to the sky for best cellular reception, using appropriate brackets or mast hardware. Connect the TRB140 via the internal LAN/PoE interface and route power and network to your network infrastructure. Configure the router settings per your operator and network requirements.

Recommendations

Place the QuSpot at a moderate height and away from large metallic obstructions to maximize omni-directional coverage. Use quality surge protection and ensure weatherproof sealing of cable entries. For specific operator compatibility and optimal antenna placement, verify signal levels with your cellular provider and perform site testing after installation.
