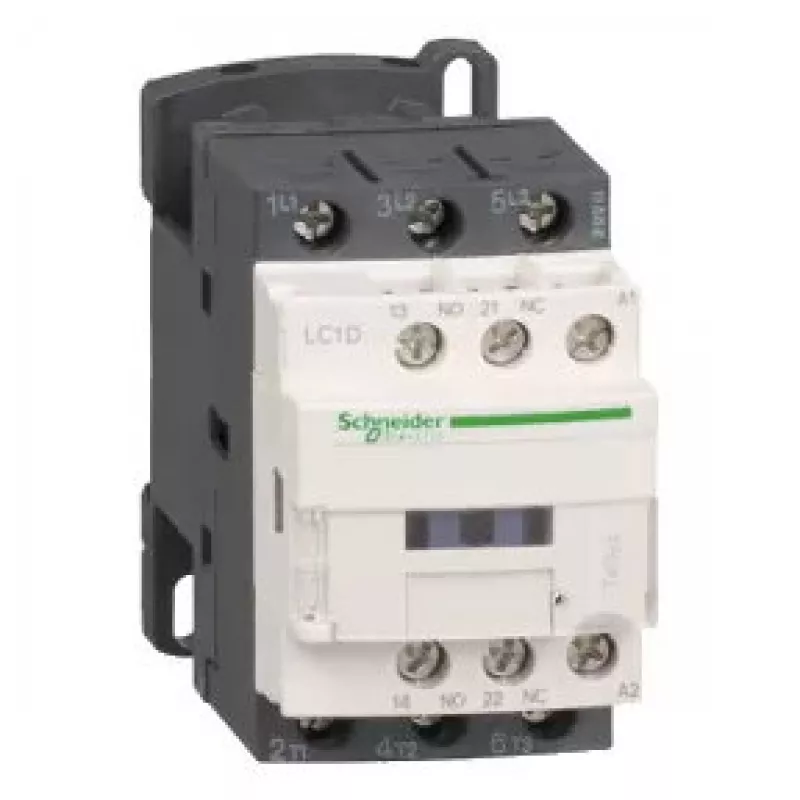

Contacto auxiliar Schneider Electric LC1D12P7 — corrente alternada 230 V, multicolor

Schneider Electric LC1D12P7 auxiliary contact provides an additional switching point for compatible contactors and control circuits. Designed for electrical panels and motor starters, this multicolour auxiliary contact has an AC contact rating of 230 V and is intended for signalling, interlocking and feedback functions within automation and industrial installations.

Advantages

The auxiliary contact offers reliable electrical switching at 230 V AC and a compact multicolour housing that simplifies identification in control cabinets. Its design enables straightforward integration with Schneider Electric contactors and typical control devices, ensuring consistent feedback for control logic and safety interlocks without occupying significant panel space.

Suitable for

• Signalling and status indication in motor starters and control panels
• Interlocking between contactors and safety circuits
• Providing feedback to PLCs and control systems
• Retrofit and maintenance tasks in industrial electrical installations

Key specifications

• AC contact rated voltage: 230 V
• Contact function: auxiliary switching contact for use with contactors and control circuits
• Housing: multicolour for easy identification in panels
• Mounting: intended to attach to compatible contactor models or panel wiring as per manufacturer guidance
• Application environment: industrial and commercial electrical installations

How to use

Install the auxiliary contact on a compatible Schneider Electric contactor or connect it into the control circuit according to the contactor manufacturer’s instructions and local electrical regulations. Wire the contact to the signalling, interlock or feedback inputs of the control system, observing correct polarity and rated voltage. Verify mechanical engagement and electrical continuity after installation and perform functional tests in a de-energized state where possible before energizing the equipment.

Recommendations

Use the auxiliary contact only with compatible contactor models and within its specified 230 V AC rating. Follow Schneider Electric installation instructions and applicable electrical standards. For reliable operation, perform periodic inspections of wiring and contact condition, and replace the unit if signs of wear or contact degradation are found.
