APC Smart-UPS On-Line, 5kVA, montagem em rack 3U, 208V/230V, saídas de ligação fixa de 3 fios (2PH+G)+3 fios (H+N+E)+3 fios (H+N+G), placa de rede+SmartSlot, com kit de calhas

The APC Smart-UPS On-Line is a 5 kVA / 4500 W rackmount UPS with double-conversion online topology, designed for 208/230 V applications. It features a 3U form factor, hardwired input/output connections, and an included network management card.

Key features

• Double-conversion online UPS topology
• 5 kVA / 4500 W output capacity
• Rackmount 3U form factor
• Hardwired input/output connections
• Network management card included
• SmartSlot for additional connectivity
• LCD display with status LEDs
• Hot-swappable VRLA batteries with automatic self-test
• Emergency power off (EPO) and surge protection
• Audible alarms and auto-restart

Specifications

• Brand: APC
• MPN: SRT5KRMXLW-HW
• Output capacity: 5 kVA / 4500 W
• Input voltage range: 100–275 V
• Input frequency: 40–70 Hz
• Output voltage range: 220–240 V
• Output frequency regulation: 50/60 Hz
• Waveform: Sine
• Efficiency: 93.8%
• Crest factor: 3:1
• Surge energy: 480 J
• Noise level: 55 dB
• AC outlet types: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
• Plug: Hardwire
• Serial interface: RJ-45
• USB port: Yes
• SmartSlot: Yes
• Battery technology: Lead-acid (VRLA)
• Battery capacity: 845 VAh
• Number of supported batteries: 1

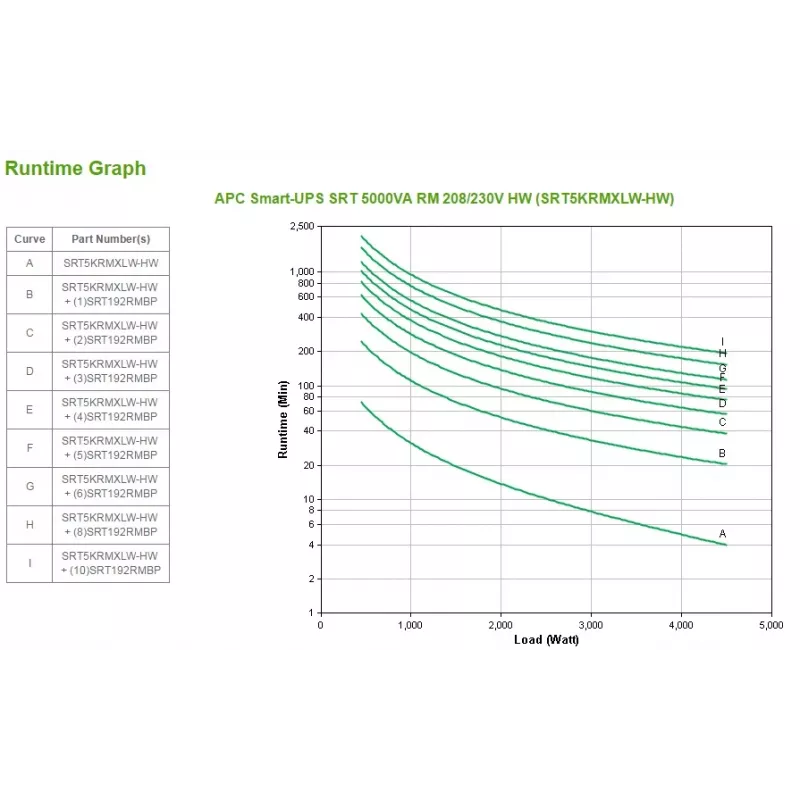

• Typical backup time at full load: 4 min
• Typical backup time at half load: 11.8 min
• Battery life (max): 5 years
• Battery recharge time: 1.5 h
• Hot-swap battery: Yes
• Automatic battery test: Yes
• Cold start: Yes
• Form factor: Rackmount
• Rack capacity: 3U
• Product colour: Black
• Display type: LCD
• LED indicators: Status
• International protection (IP) code: IP20
• Operating temperature: 0–40 °C
• Storage temperature: -15–45 °C
• Operating relative humidity: 0–95%
• Storage relative humidity: 0–95%
• Operating altitude: 0–3000 m
• Storage altitude: 0–15000 m
• Compliance certificates: RoHS
• Certifications: REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
• Sustainability certificates: ENERGY STAR
• Width: 432 mm
• Depth: 719 mm
• Height: 130 mm
• Weight: 55.8 kg
• Number of phases: 3
• Battery type: APCRBC140
• Output connections: 1x Hard Wire 3-wire (2PH + G), 1x Hard Wire 3-wire (H N + G)
