Aplique de parede exterior Steinel L 845 SC, LED não substituível 9 W, antracite, alumínio/plástico, 160°/5 m

Steinel L 845 SC is an outdoor wall light with an integrated non-changeable 9 W LED, designed for façade and entrance illumination. The housing combines aluminium and plastic in an anthracite finish and runs on 220–240 V AC (50/60 Hz). The unit delivers approximately 655 lm at a warm white 3000 K colour temperature and integrates a high-frequency motion sensor with a 160° detection angle and up to 5 m detection radius. Bluetooth Mesh connectivity and the STEINEL Connect app enable wireless commissioning, grouping and fine digital adjustment of light and sensor parameters.

Advantages

The L 845 SC combines compact cube design with robust materials for outdoor use, offering precise motion detection and energy savings compared to continuously lit LED fixtures. Soft start and basic light (10–100%) functions together with a dimmable main light (10–100%) allow gradual and adaptive illumination. Wireless setup and an interconnected group function via Bluetooth Mesh simplify installation and synchronization of multiple units.

Suitable for (tasks / use cases)

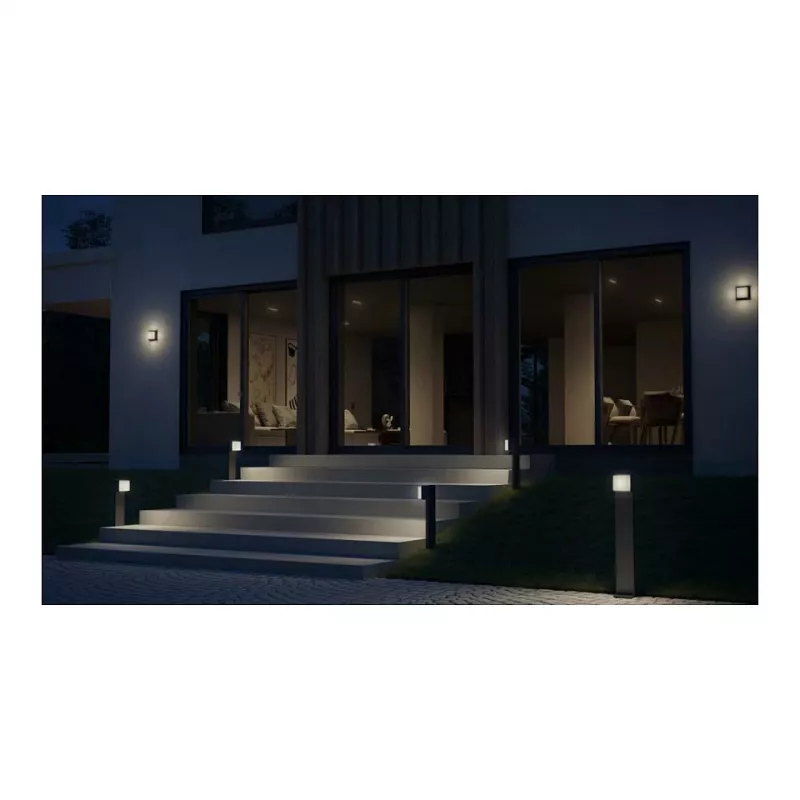

• Illuminating house façades and entrance areas
• Pathway and doorstep lighting with motion-activated security
• Accent lighting for architectural features
• Grouped, connected lighting installations controlled via app

Key specifications

• Light source: integrated non-changeable LED, 9 W
• Luminous flux: approx. 655 lm
• Colour temperature: 3000 K (warm white)
• Housing material: aluminium/plastic, anthracite finish
• Operating voltage: 220–240 V AC, 50/60 Hz
• Motion detection: high-frequency sensor, 160° angle, up to 5 m radius
• Control: Bluetooth Mesh compatibility and STEINEL Connect app for wireless commissioning, grouping and settings
• Dimming and light modes: soft start, basic light 10–100%, dimmable main light 10–100%

How to use

Mount the L 845 SC on a suitably prepared exterior wall with wiring to the 220–240 V supply following local electrical regulations. After power-up, use the STEINEL Connect app to commission the fitting, configure sensor sensitivity, detection range and light modes, and add units to a group if required. The built-in sensor will switch the light when motion is detected within the configured detection radius; the soft start and basic light functions can be adjusted in the app to control how the fixture behaves under low-activity conditions.

Recommendations

The sensor is optimized for a 160° detection angle and up to 5 m radius; position the fixture to avoid unwanted triggers from nearby roads or vegetation. For energy-efficient operation, use the group function and basic light settings so luminaires provide ambient illumination while main light activates only on motion.
