Armário de chão Lanberg FF01-8037-12BL 37U 800 kg preto

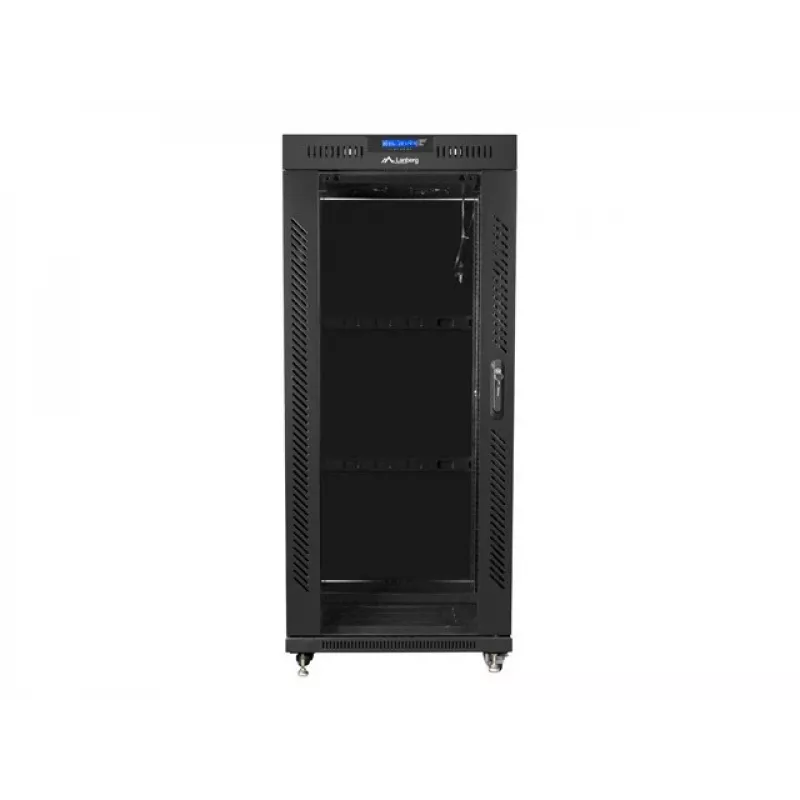

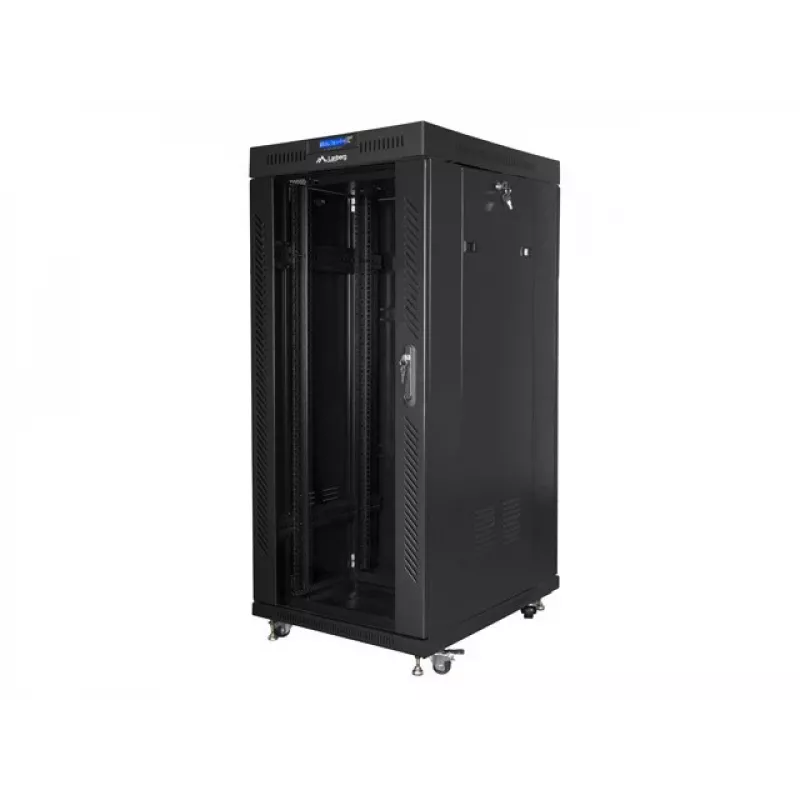

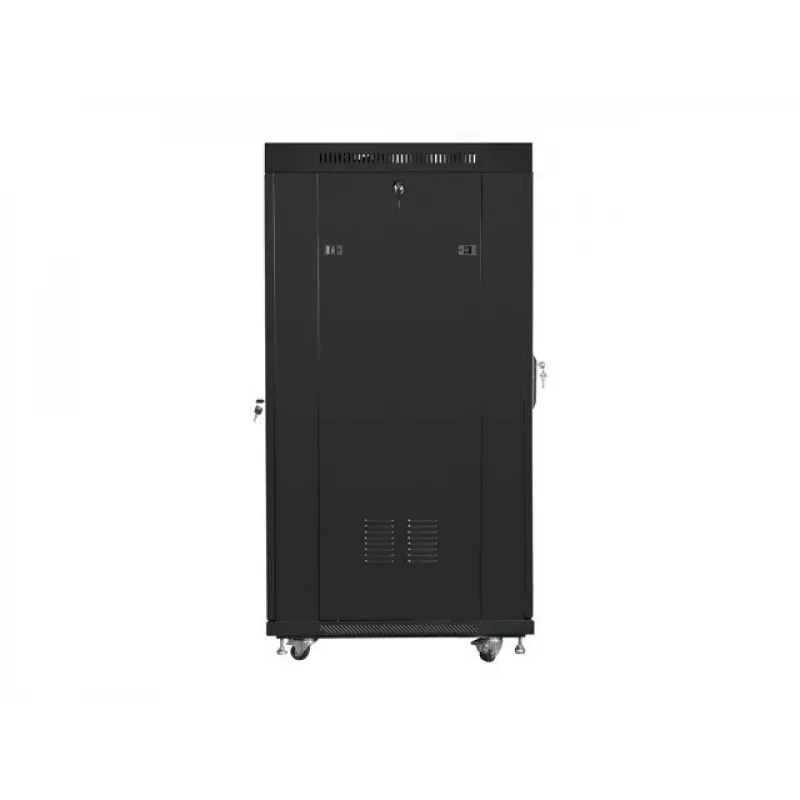

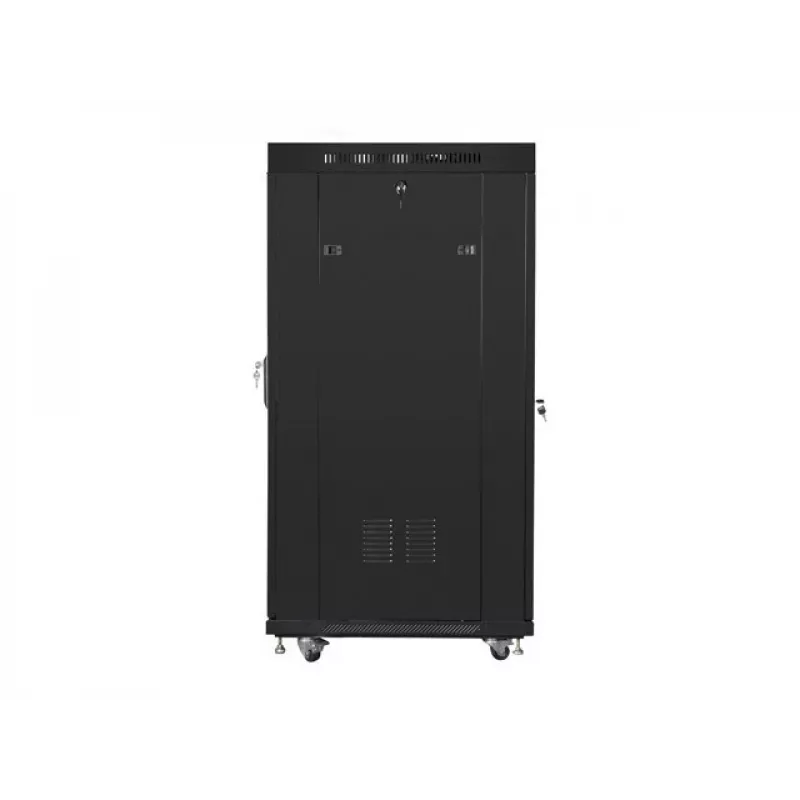

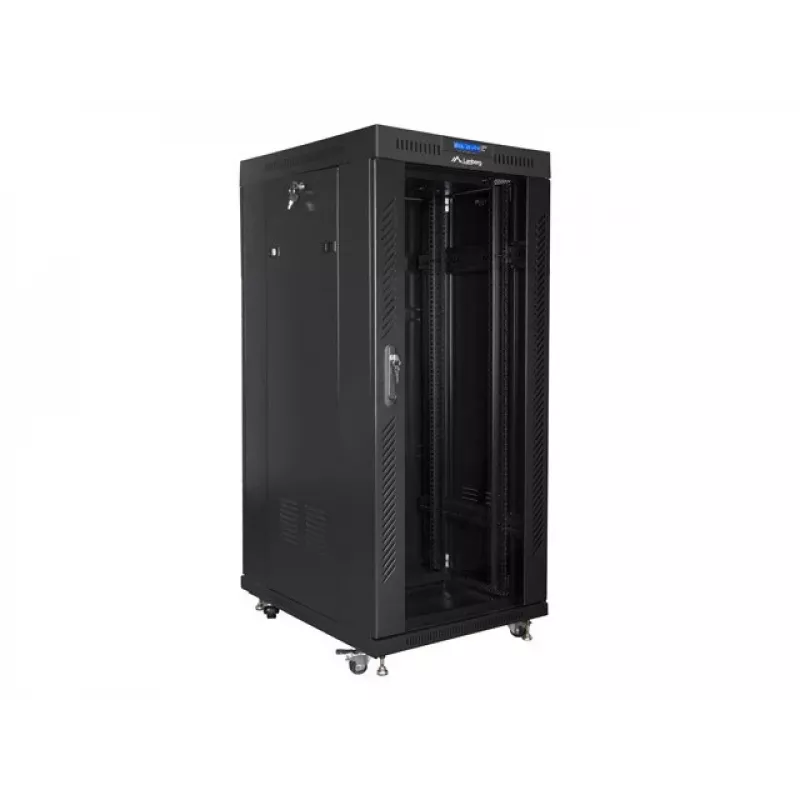

Freestanding Lanberg rack cabinet FF01-8037-12BL is a 19" 37U cabinet designed to house network and server equipment with a maximum load capacity of 800 kg. Constructed from high-grade cold-rolled steel and finished in black, the cabinet includes an adjustable-depth vertical rail system, a front glass door with lock (reversible for right- or left-hand installation), castor wheels and adjustable feet for placement, and an IP20 rating for indoor environments. The cabinet supports cabling and devices for networks, server rooms, small and medium businesses, and data centers, as well as low-voltage systems such as CCTV/IP surveillance, alarm and fire protection systems, cable TV and access control.

Advantages

The cabinet offers robust mechanical construction from cold-rolled steel and a 37U rack space with a maximum 800 kg load capacity. It provides flexible mounting thanks to adjustable-depth vertical rails, reversible lockable front glass door and multiple cable entry points on the top and bottom. An LCD display on the front shows basic internal parameters (temperature, time and fan status). The package includes fan tray with four 230 V fans, M6 cage nuts, blank entry panels and accessories for rail installation. The flat-pack design facilitates transport and on-site assembly.

Suitable for

• Enterprise and SMB network equipment
• Server rooms and data centers with 19" devices
• CCTV and IP surveillance installations
• Alarm, fire protection and access control low-voltage systems
• Cable television and structured cabling projects

Key specifications

• Model: Lanberg FF01-8037-12BL
• Rack capacity: 37U (19")
• Maximum load capacity: 800 kg
• Material: cold-rolled steel
• Maximum mounting depth: 860 mm (adjustable)
• Dimensions (HxWxD): 1876 x 800 x 1000 mm
• Weight: 120 kg
• Protection rating: IP20 (indoor use)
• Front door: glass with lock, reversible (left/right)
• Cooling: fan tray with 4 × 230 V fans; LCD shows fan status
• Accessories included: M6 cage nuts, blank entry panels, rail installation kit

How to use

Unpack the four flat packs and follow the included assembly instructions to build the cabinet frame and attach the side panels. Install the adjustable vertical mounting rails to the required depth (up to 860 mm) and fit equipment using standard 19" mounting hardware (M6 cage nuts included). Route cabling through the top and bottom blank entry panels and secure cables as needed. Plug in and mount the fan tray, confirm the LCD shows operating parameters, and install the front glass door on the desired side. Use the castors to move the assembled cabinet and then lower onto the adjustable feet for a stable, level installation.

Recommendations

Place the cabinet in a dry, indoor environment with adequate room for ventilation and service access. Distribute load evenly across rack units and avoid exceeding the 800 kg maximum. Ensure proper grounding and follow local electrical codes when connecting the fan tray or other powered components.
