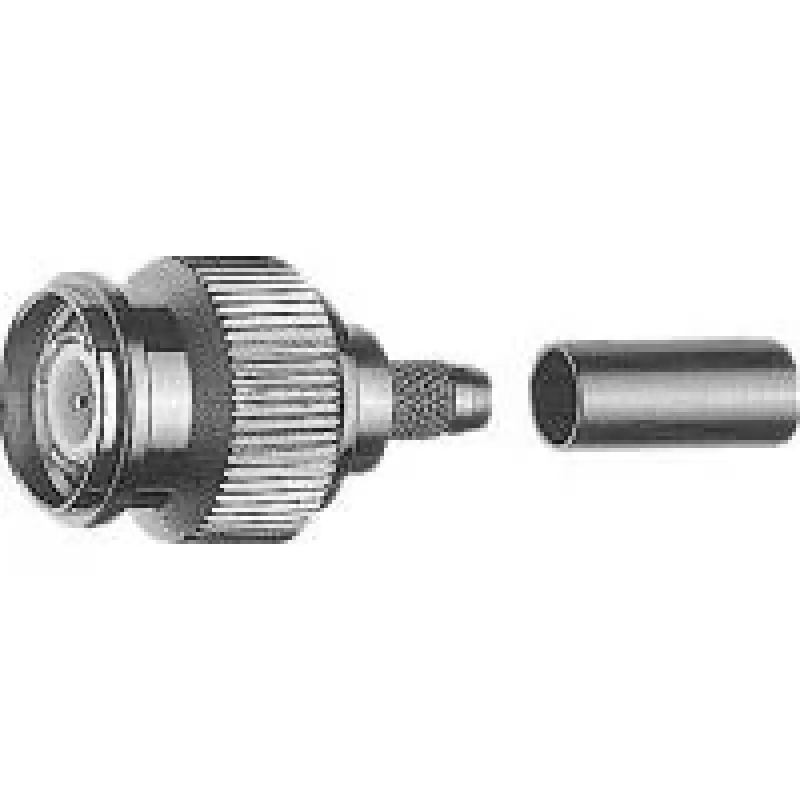

Telegärtner ficha TNC conector macho crimp para RG-142B/U, 50 Ohm, pack de 5 J01010A0000

For RF connections that demand low loss and high stability, this TNC connector solves the problem of reliably terminating RG-142B/U coaxial cable with a 50-ohm impedance. The threaded coupling ensures a secure, vibration-resistant connection, while the crimp termination for both inner and outer conductors provides a durable, repeatable assembly. Supplied in a pack of five, it is suitable for professional installations where consistent performance is critical.

Who is it for

RF technicians, network installers, and maintenance engineers working with RG-142B/U cable in communications, test equipment, or antenna systems. The TNC interface is a common choice for applications requiring a threaded connector that can handle frequencies up to 11 GHz.

Main features

• TNC male connector for RG-142B/U cable
• 50 ohm impedance
• Crimp termination for inner and outer conductors
• Threaded coupling for secure connection
• Nickel-plated brass body, gold-plated contacts
• PTFE insulation for high-temperature performance
• Pack of 5 pieces

Specifications

• Connector series: TNC
• Gender: Male
• Impedance: 50 Ohm
• Compatible cable: RG-142B/U
• Cable dielectric diameter: 2.95 mm
• Cable center conductor diameter: 1.0 mm
• Termination method: Crimp (inner and outer)
• Frequency range: DC to 11 GHz
• Voltage rating: 500 V RMS
• Body material: Brass, nickel-plated
• Contact material: Brass, gold-plated
• Insulation material: PTFE
• Mounting type: Cable mount
• Product line: Professional A0205

Tips

Use a proper crimp tool designed for TNC connectors to ensure a reliable termination. Verify the cable dimensions (1.0 mm center conductor, 2.95 mm dielectric) before assembly. The threaded coupling should be tightened by hand; do not overtighten.
