Armário de rede autónomo DIGITUS Unique Series 26U 800×1000 mm IP20 cinzento

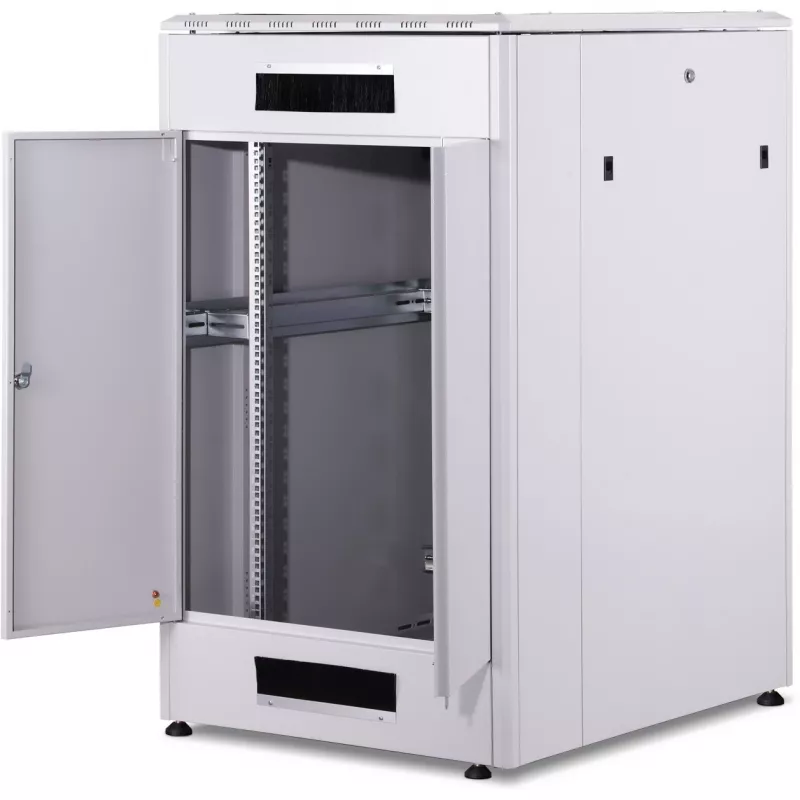

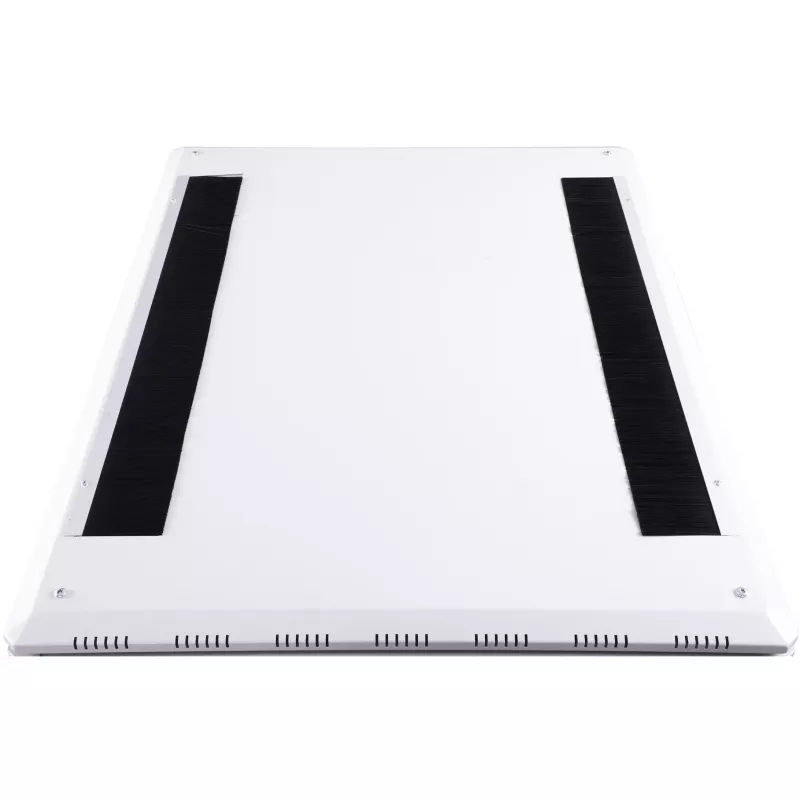

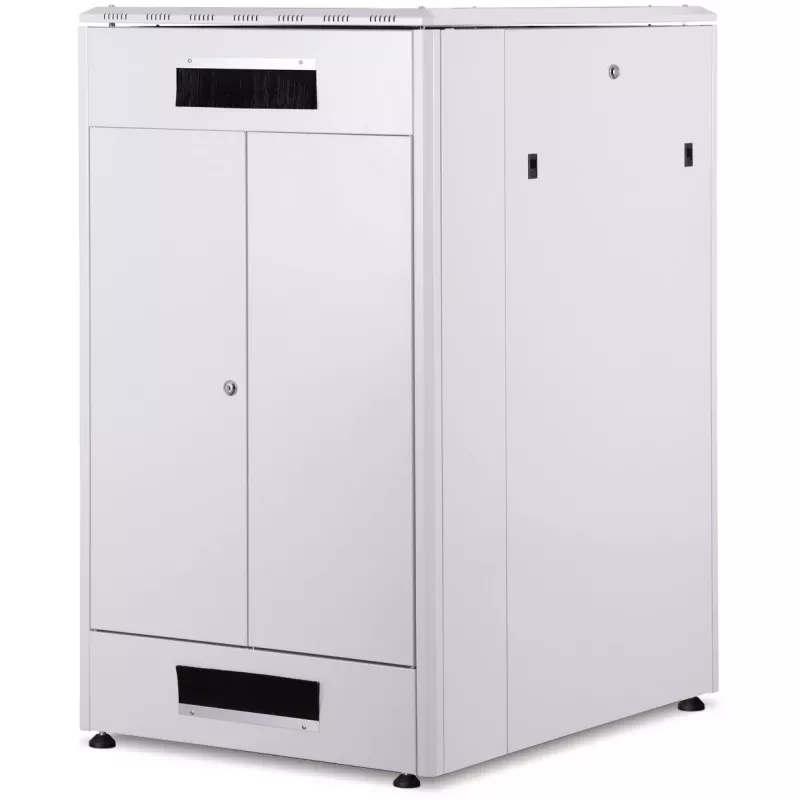

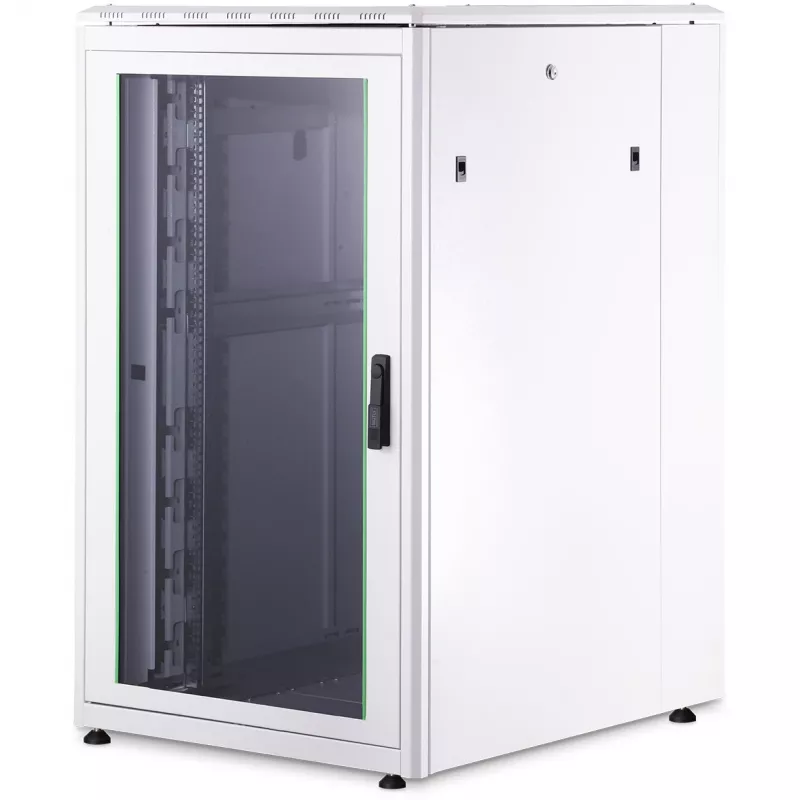

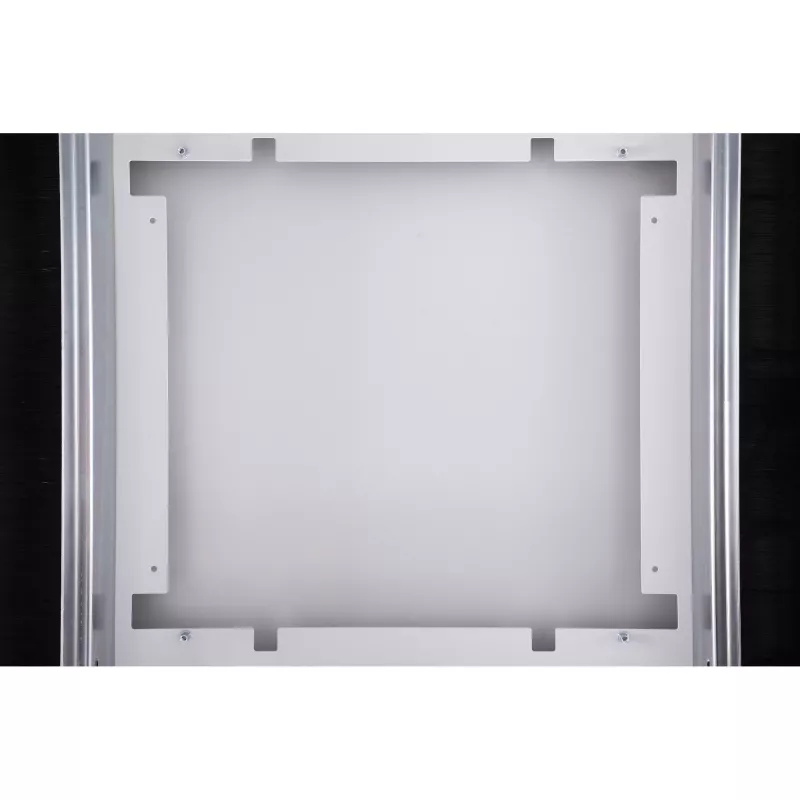

Freestanding network rack DIGITUS Unique Series with 26U usable height and external dimensions 800 × 1000 mm (W × D), designed for 19" equipment. Constructed from up to 1.5 mm sheet steel with electrostatic powder coating (grey RAL 7035 or jet black RAL 9005), the cabinet provides IP20 protection and supports rack rails capable of carrying heavy loads. The Unique Series features a removable offset roof cover with ventilation slits and a special roof construction for easy mounting of a fan module.

Advantages

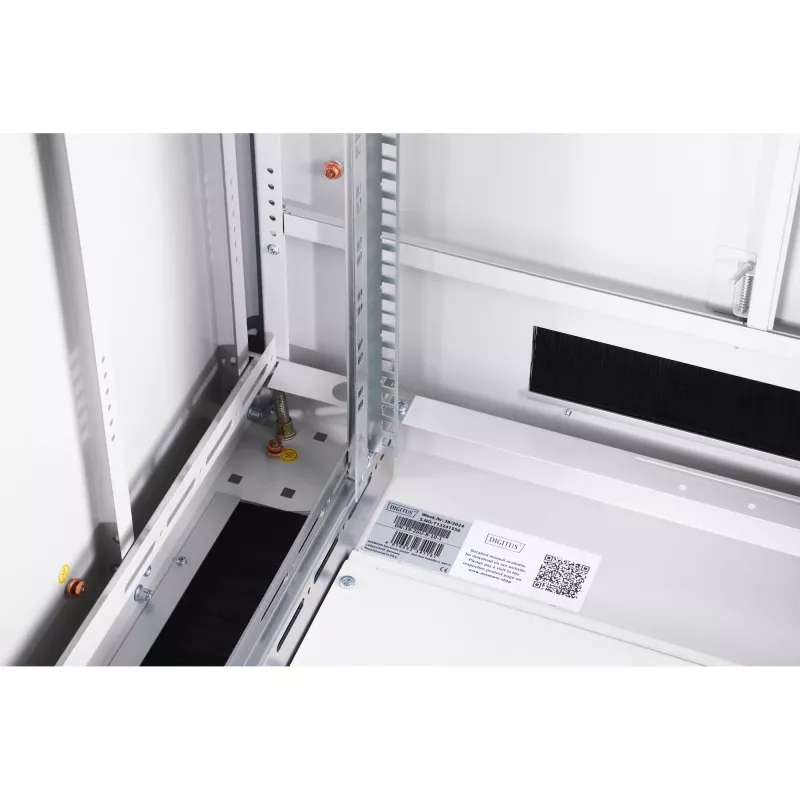

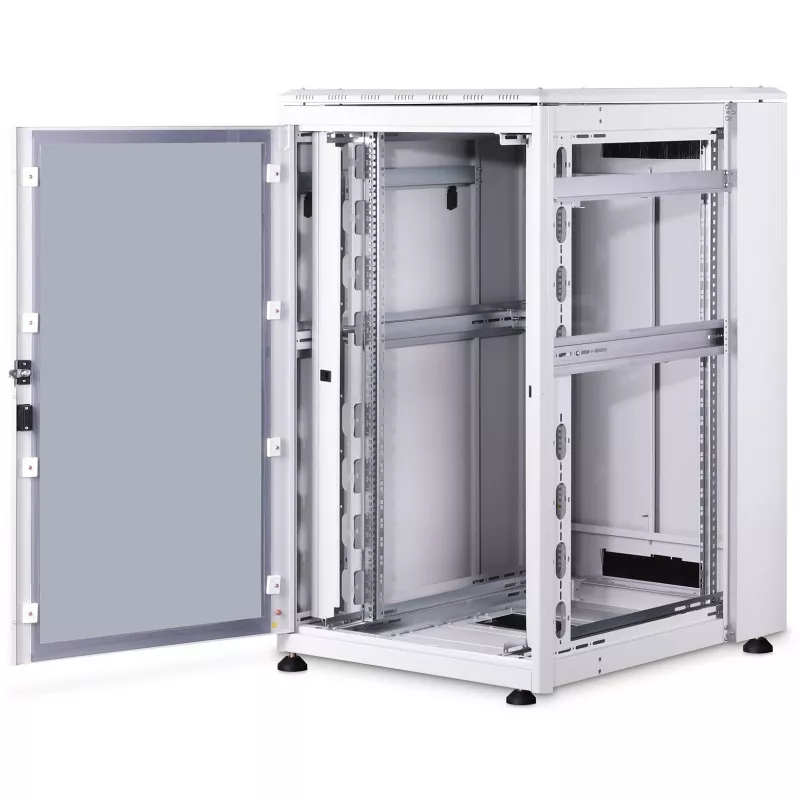

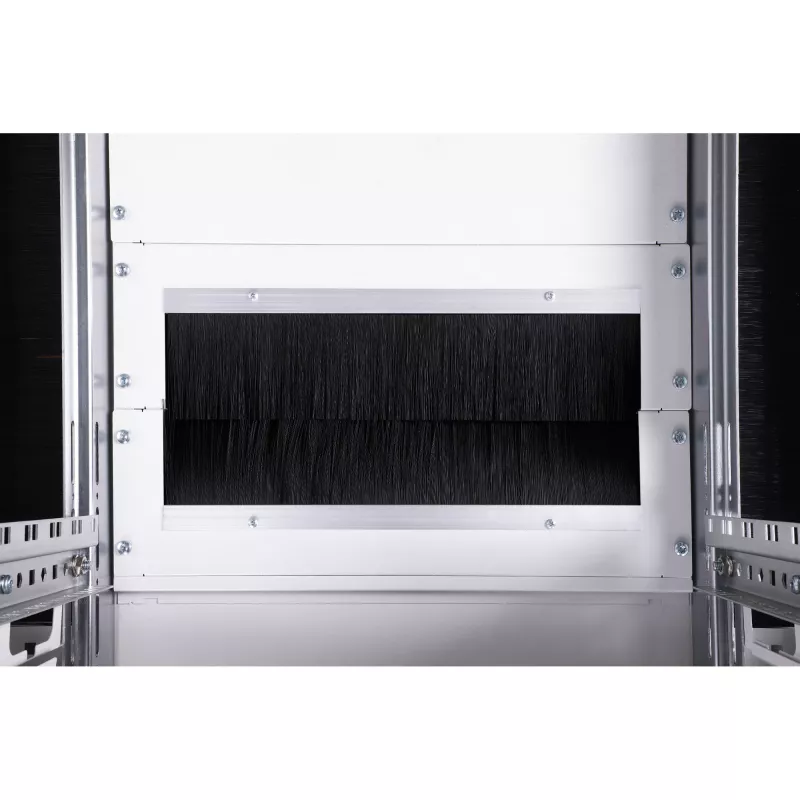

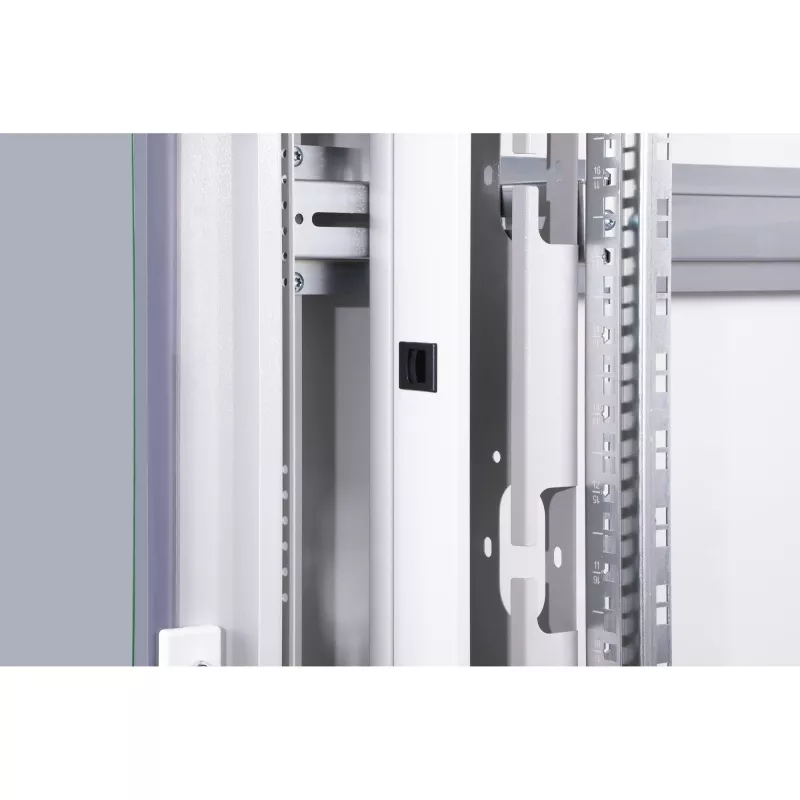

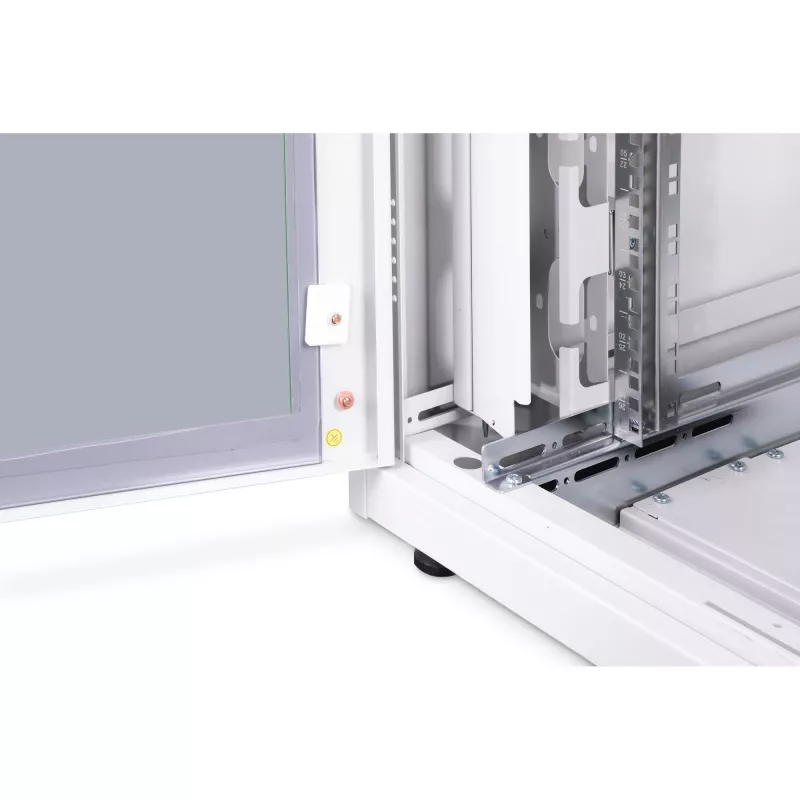

The DIGITUS Unique Series rack offers flexible cable management and easy access thanks to brush-equipped inlets in the roof and floor, a sliding cable entry with rubber sealing on the base and removable side panels and doors with reversible hinges. Two pairs of galvanized 483 mm (19") profile rails with rack unit markings readable in both directions are depth-adjustable and connected to additional depth bars, enabling secure mounting of equipment. The lock system on the front door with a pivot lever is ready for a profile half cylinder (adapter included).

Suitable for

• Server rooms and data centers with 19" equipment
• Network closets and telecommunications cabinets
• IT installations requiring organised cabling and heavy-duty mounting (up to 800 kg rail support)

Key specifications

• Rack capacity: 26U
• External dimensions (W × D): 800 × 1000 mm
• Height: 1342 mm
• IP rating: IP20
• Profile rails: 483 mm (19"), galvanized, depth-adjustable
• Material thickness: up to 1.5 mm sheet steel
• Colours: Grey (RAL 7035) or Jet Black (RAL 9005)
• Front door lock: pivot lever, adapter for profile half cylinder included

How to use

Install the cabinet on a stable, level surface. Mount the 19" equipment on the adjustable profile rails and secure using appropriate rack screws. Route network and power cabling through the brush-equipped roof and floor inlets or the sliding cable entry on the base, using the vertical cable channels and brush management panels as needed. Fit a fan module into the removable roof cover if additional ventilation is required. Side walls and doors can be removed or reversed to simplify installation and maintenance.

Recommendations

Position the rack to allow sufficient clearance for airflow at the front and rear and to enable easy access to cabling panels. Use the included adapter for the front door cylinder and verify rail depth setting before mounting heavy equipment to ensure even load distribution.
