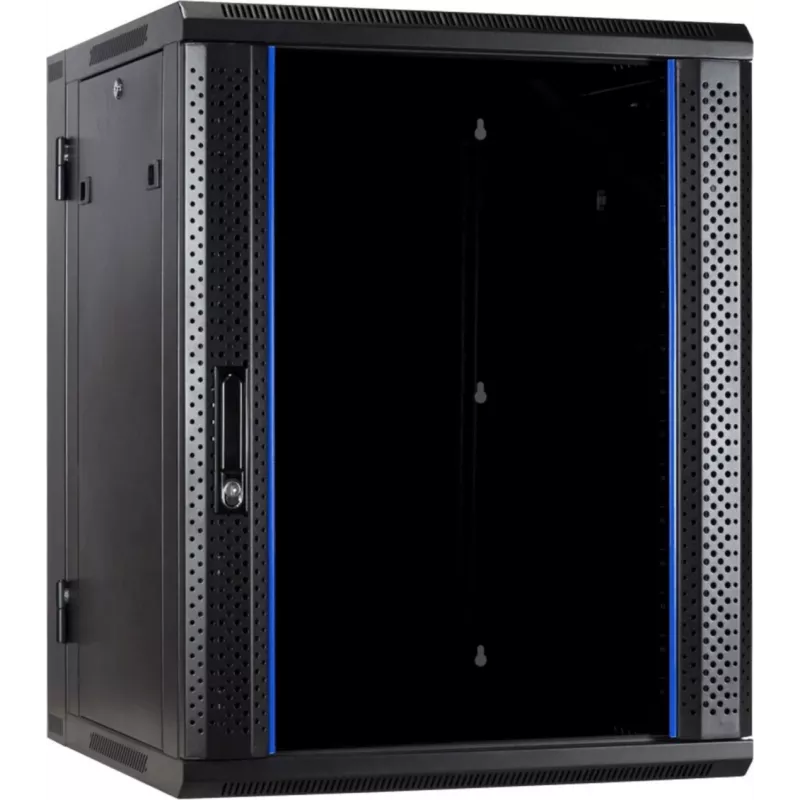

Armário de servidor de parede reversível DSIT DS6622-DOUBLE 22U com porta de vidro, 600 x 600 x 1100 mm, preto

The DSIT DS6622-DOUBLE rethinks compact server housing by combining a 22U rack capacity with a reversible glass front door and a wall-mountable chassis that does not compromise on accessibility. Unlike fixed-orientation enclosures, this cabinet lets you decide whether the door opens left or right after installation, so it adapts to cramped corridors, narrow IT closets, or any space where every swing matters. The 600 x 600 mm footprint keeps the unit shallow enough for patch panels and short-depth networking gear, while the 1100 mm height provides serious vertical capacity without occupying floor space.

Highlights

• 22U 19-inch rack capacity with front and rear adjustable mounting rails
• Reversible tempered-glass front door with key lock for flexible access
• Wall-mount design with 600 x 600 mm footprint and 1100 mm height
• SPCC cold-rolled steel frame with powder-coated black finish (RAL 9005)
• Removable side panels and top/bottom cable entry with brush strips
• Passive ventilation slots and fan-ready construction
• 60 kg maximum load capacity, CE and RoHS compliant

In daily use

Mounting the DS6622-DOUBLE on a solid wall frees up floor space while keeping all equipment at a comfortable working height. The pre-assembled body reduces setup time, and the adjustable rails let you align switches, patch panels, or shallow servers precisely. The glass door provides a clear view of status LEDs without opening the cabinet, and the lock prevents unauthorized access. Removable side panels simplify cable routing, and the brush strips keep dust out while allowing clean cable entry. Passive ventilation ensures adequate airflow for most equipment, and the cabinet is ready for fan installation if additional cooling is needed.

Full specifications

• Rack capacity: 22U
• Rack standard: 19-inch
• Mounting type: Wall mount
• External dimensions (W x D x H): 600 x 600 x 1100 mm
• Door: Single front glass door, reversible, lockable
• Material: SPCC cold-rolled steel
• Finish: Powder coated, black (RAL 9005)
• Side panels: Removable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive slots, fan ready
• Load capacity: Up to 60 kg
• IP rating: IP20
• Compliance: CE, RoHS
• Assembly: Pre-assembled

Final note

The DSIT DS6622-DOUBLE is a versatile wall-mount cabinet that combines space efficiency with flexible access, making it an excellent choice for small offices, retail back rooms, or any environment where floor space is at a premium.
