Armário para montagem na parede DIGITUS Dynamic-N 12U, 19", 600x450 mm (LxP), IP20, fechadura com chave, desmontado

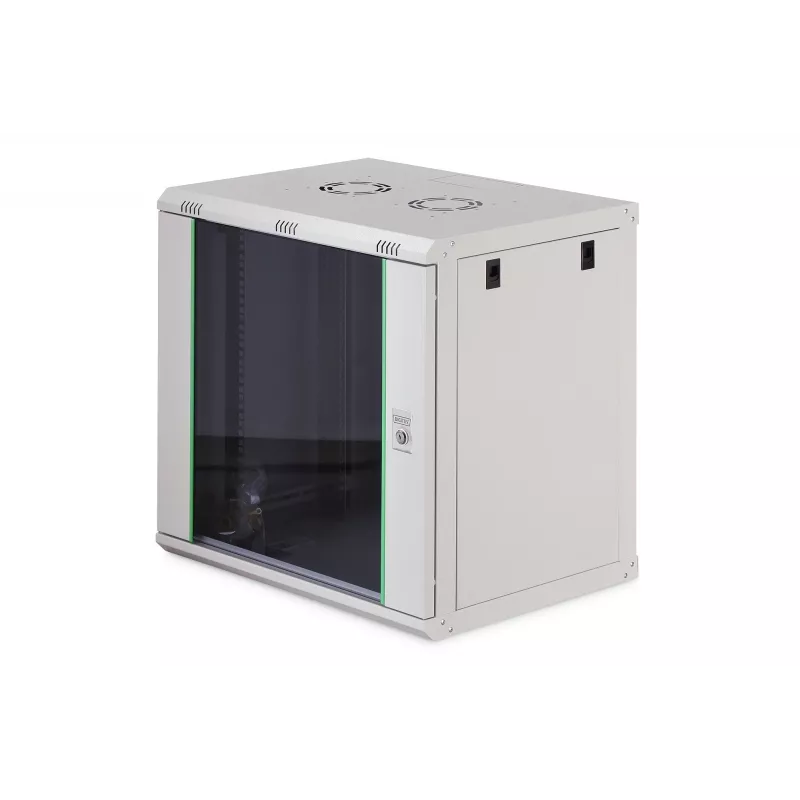

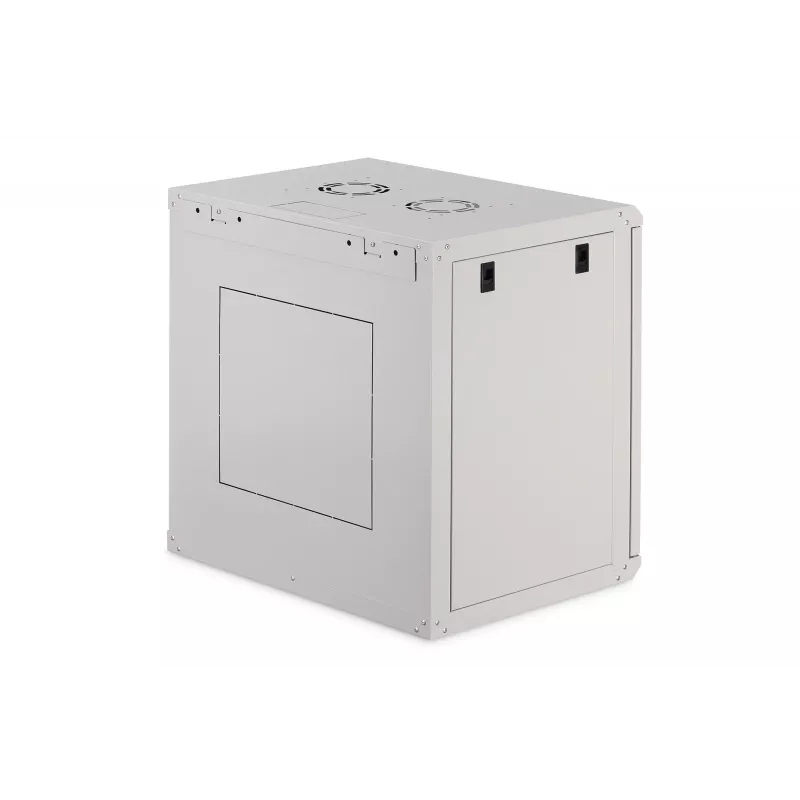

The DIGITUS Dynamic-N 12U wall-mounted rack cabinet is designed for 19" network and telecom equipment in compact installations. Measuring 600 x 450 mm (WxD) with a height of 607 mm, this IP20-classified enclosure features galvanized adjustable 19" profile rails at the front and rear, a lockable safety glass door with steel frame, pre-punched cable entry points and ventilation slots. Supplied unassembled, the cabinet supports a maximum static load of 60 kg and has a light grey powder-coated steel finish.

Advantages

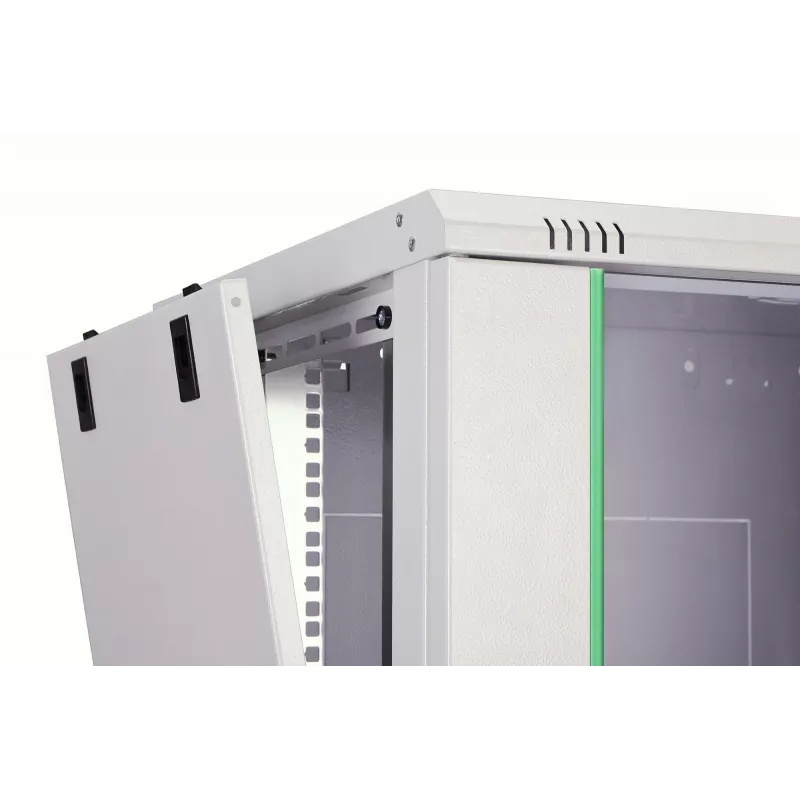

The cabinet combines a space-saving wall-mounted design with 12U usable rack height, offering adjustable internal rails for flexible mounting and clear height markings. Sturdy sheet steel construction with a powder-coated surface and multiple earthing points ensures mechanical stability and safe grounding. Built-in cable entry points at the roof, rear and base, along with ventilation openings and a roof area prepared for a fan element, enable orderly cabling and thermal management. The lockable glass front door provides physical access control while allowing visual inspection of installed equipment.

Suitable for

• Small server rooms and communication closets with 19" network switches, patch panels and routers
• Office network installations and branch sites where a compact, wall-mounted enclosure is needed
• Telecom or structured cabling points that require basic protection (IP20) and cable management
• Installations where a 12U capacity and up to 60 kg equipment load are adequate

When it may not be suitable

This cabinet is not intended for outdoor use or environments requiring higher ingress protection than IP20. It is also unsuitable if you need to install heavy equipment exceeding the 60 kg maximum load or require greater internal depth than the 219–320 mm installation depth for mounted components. Because it is supplied unassembled, on-site assembly and basic mechanical work are required.

Key specifications

• Rack capacity: 12U

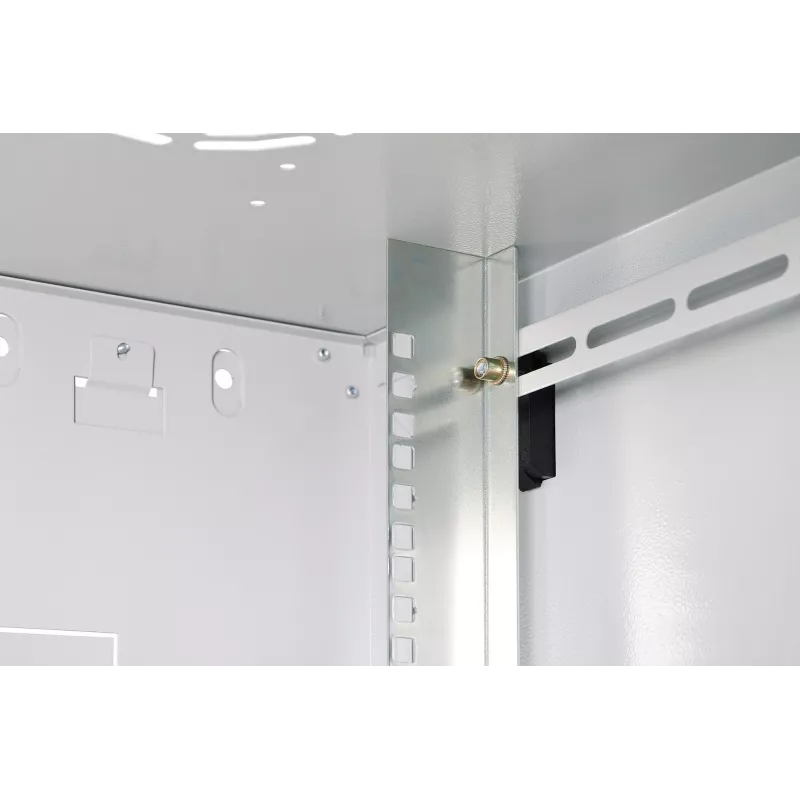

• Mounting system: 19" front and rear profile rails, galvanized, depth-adjustable
• External dimensions (W x D x H): 600 x 450 x 607 mm
• Installation depth for components (standard): 219–320 mm
• Maximum static load capacity: 60 kg
• Material and thickness: sheet steel, approx. 1.0–1.2 mm, powder-coated
• Protection class: IP20

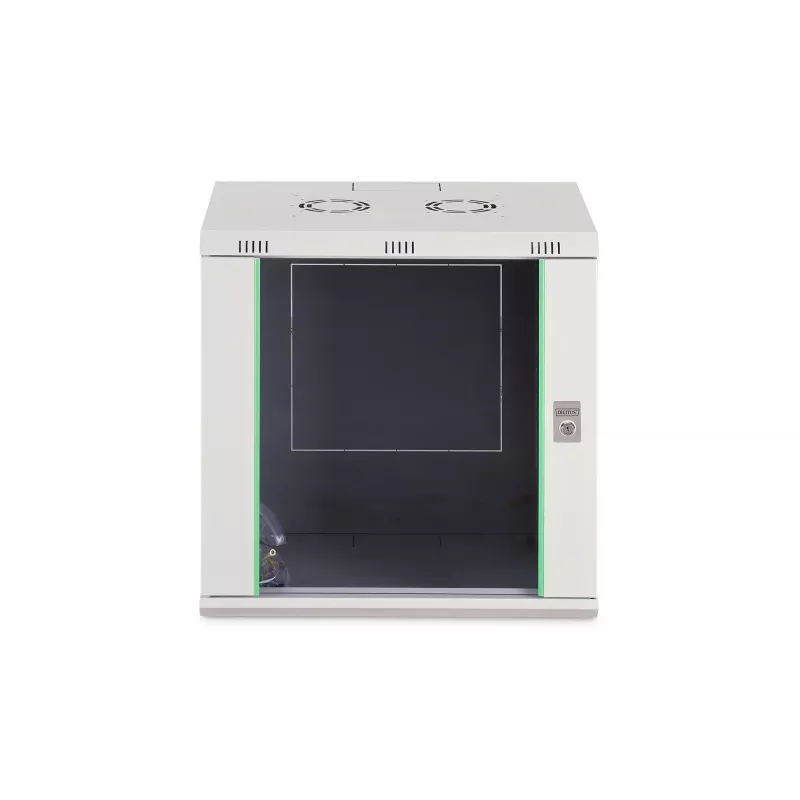

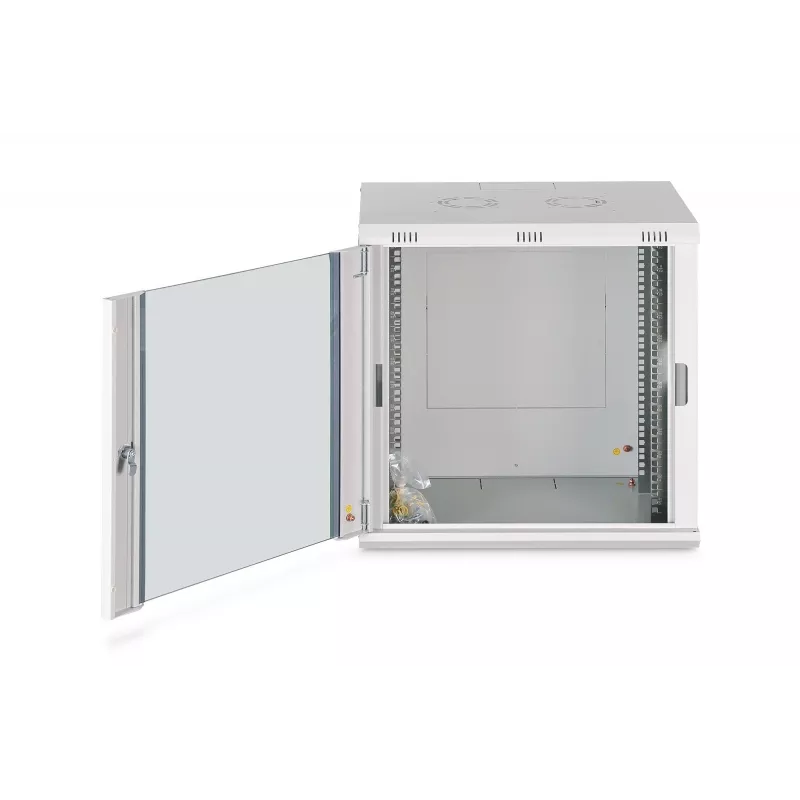

• Front door: lockable safety glass with steel frame, 230° opening angle

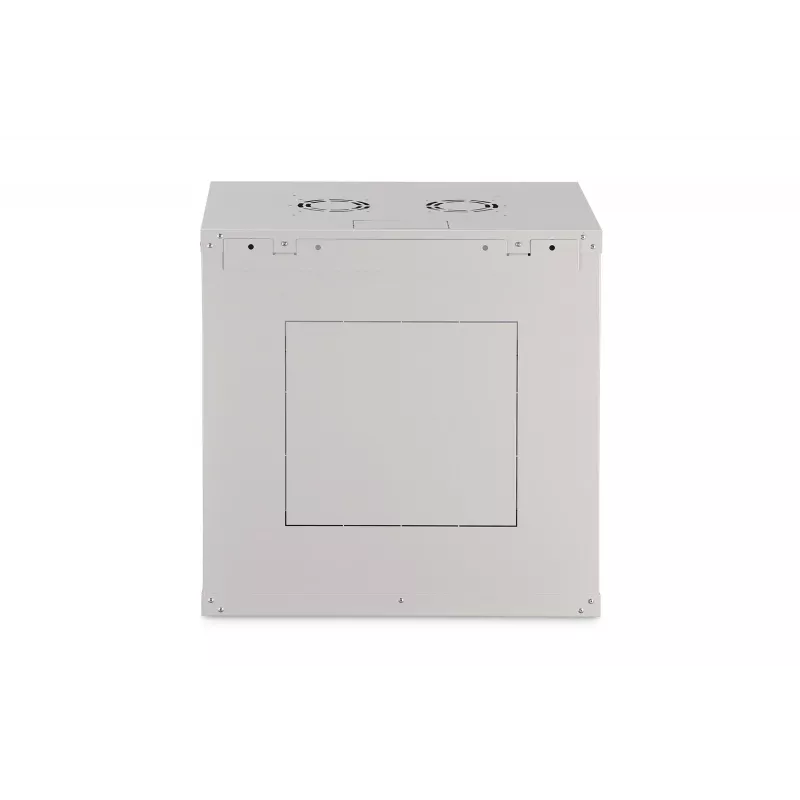

• Cable entry: pre-punched cut-outs at roof, rear and base

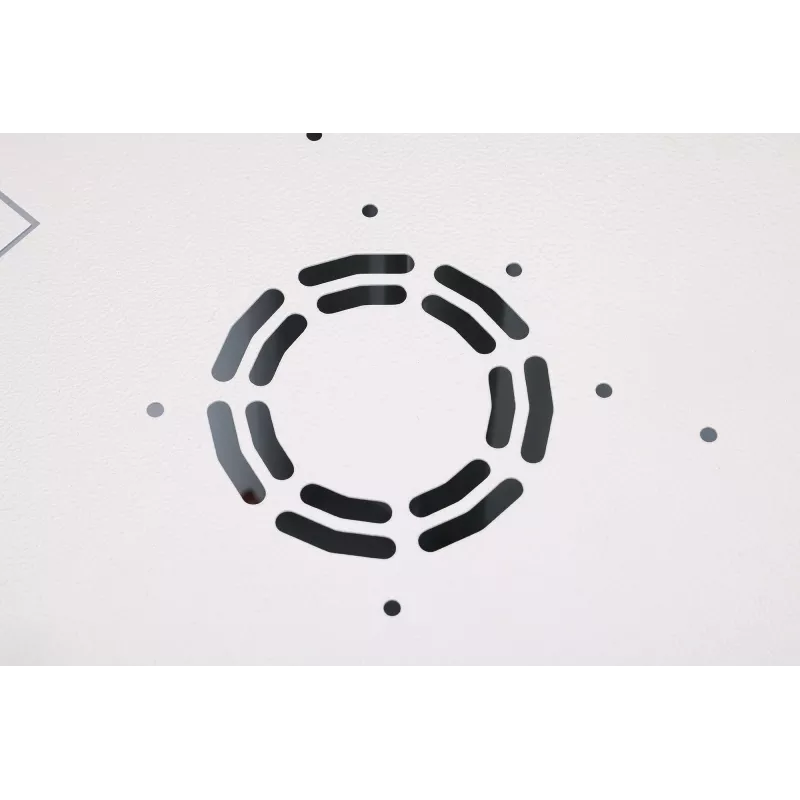

• Ventilation: ventilation slots and provision for fan element in roof

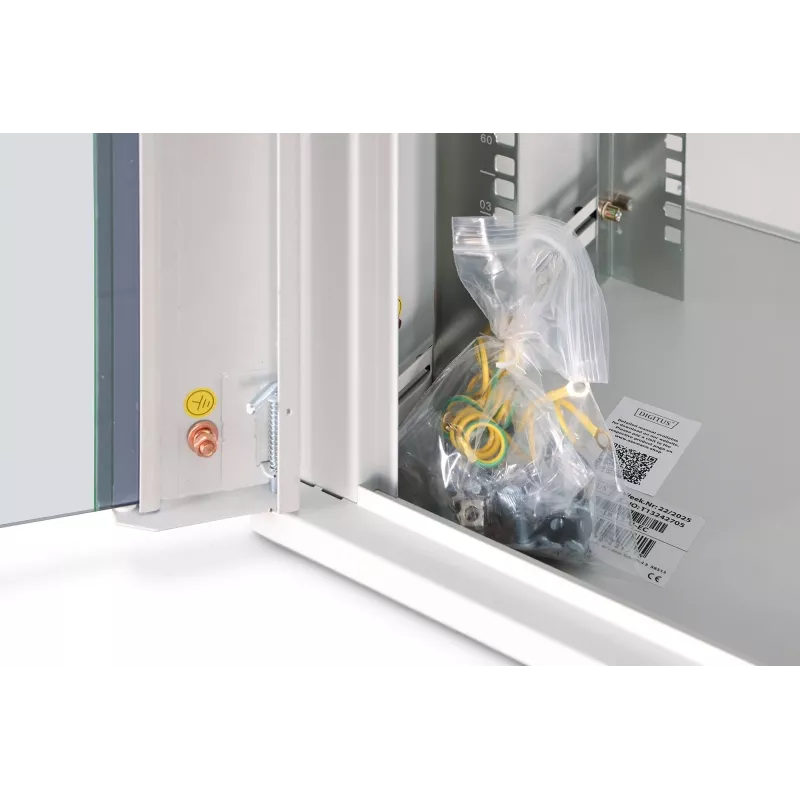

• Earthing: multiple earthing points (base, side panel, front door)
• Finish: light grey

How to use

Mount the supplied wall plate to a load-bearing surface following the enclosed installation instructions, then hang and secure the cabinet housing to the plate. Install and adjust the galvanized 19" profile rails to the required depth, using the height unit markings to position equipment precisely. Route cabling through the pre-punched cut-outs in the roof, rear or base and secure with the integrated cable management features. Fit optional ventilation or fan modules into the prepared roof area if active cooling is needed. Use the lockable front door and removable side panels for secure access and maintenance.

What to consider before purchase

• Verify that 12U and 600 x 450 mm (WxD) internal dimensions meet your equipment size and depth requirements
• Confirm the 60 kg maximum load is sufficient for the intended devices
• Ensure IP20 protection is appropriate for the installation environment (indoor, dry locations)
• Be prepared for on-site assembly and wall mounting using the supplied mounting plate
• Plan for ventilation or a fan module if equipment generates significant heat

Recommendations

Place the cabinet on a solid wall and distribute mounted equipment to keep the centre of gravity close to the wall plate. Use the depth-adjustable rails to align deeper devices within the recommended installation range and secure all equipment and cabling to prevent strain. For higher heat loads, install a roof fan element and maintain clearance for airflow through the ventilation slots.
