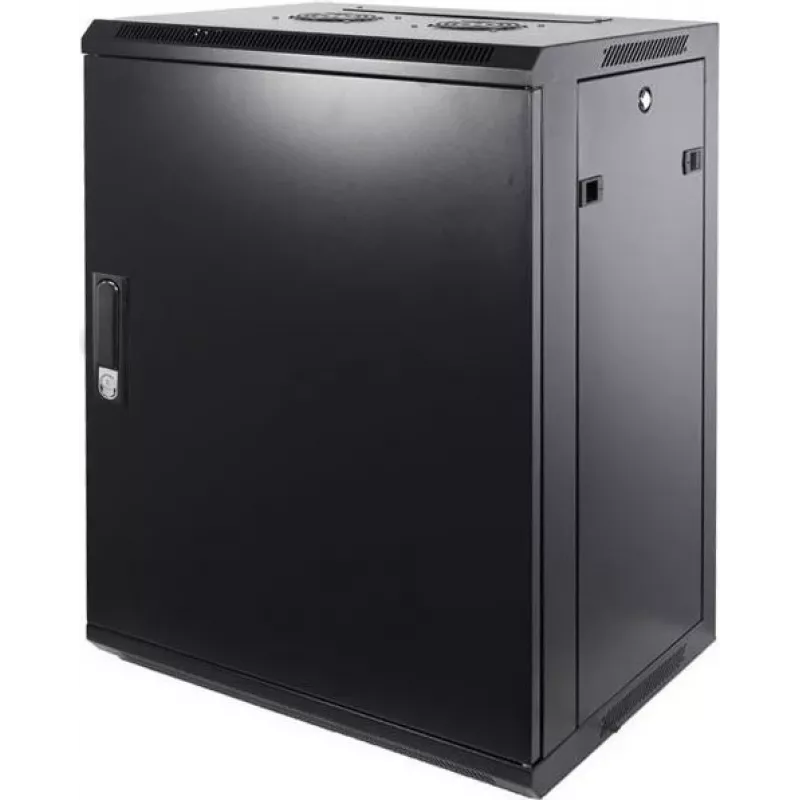

Armário rack de servidor de parede DSIT DS6415M 15U com porta metálica, 600x450x770 mm, preto

Where most wall cabinets force a compromise between access, security, and airflow, the DSIT DS6415M 15U wall-mount enclosure keeps all three in balance. Its solid metal front door locks with a key, yet the cabinet still breathes through passive ventilation slots, so your patch panels and shallow servers stay cool without exposing them. The 600 x 450 mm footprint is compact enough for corridors and small technical rooms, while 770 mm of height gives you fifteen rack units of usable 19-inch space. Because the side panels are removable and lockable, you can service equipment from three sides without unmounting the cabinet. The frame is made from SPCC cold-rolled steel with a powder-coated finish in RAL 9005 black, rated for a static load of 60 kg. Adjustable mounting rails let you set the equipment depth from the front or rear, and cable knockouts on top and bottom keep wiring tidy. Everything arrives fully assembled, with cage nuts, screws, keys, and a wall mounting kit in the box.

Highlights

• 15U of 19-inch rack space in a wall-mount form factor
• Lockable solid metal front door for physical security
• Removable, lockable side panels for easy access
• Passive ventilation slots maintain airflow without fans
• 60 kg maximum load capacity for switches, patch panels, and shallow servers
• Adjustable mounting rails support equipment depths from 250 mm to 420 mm
• Top and bottom cable knockouts for clean cable routing
• Fully assembled with all mounting hardware included

In daily use

Install the DS6415M in a network closet, classroom, or small office where floor space is limited. The solid door hides cable clutter and prevents casual tampering, while the key lock keeps authorized personnel in control. Because the side panels come off without tools, you can quickly add or replace equipment during maintenance windows. The black powder-coated finish resists scratches and fingerprints, so the cabinet looks professional even in visible locations. Use the adjustable rails to align patch panels flush with the front, or set deeper equipment back to leave room for cable management. The top and bottom knockouts accept standard conduit or cable glands, and the included cage nuts and screws let you mount equipment immediately.

Full specifications

• Rack capacity: 15U
• Mounting type: Wall mount
• External dimensions (W x D x H): 600 x 450 x 770 mm
• Rack standard: 19-inch
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated
• Color: Black (RAL 9005)
• Maximum static load: 60 kg
• Front door: Solid metal, lockable with key
• Side panels: Removable, lockable
• Ventilation: Passive ventilation slots
• Adjustable mounting rails: Yes, depth-adjustable
• Protection rating: IP20
• Assembly: Fully assembled
• Included accessories: Cage nuts, screws, keys, wall mounting kit

Final note

For IT managers who need a secure, compact wall cabinet that does not sacrifice accessibility, the DSIT DS6415M delivers a straightforward, durable solution that fits into tight spaces and keeps equipment protected.
