Estrutura de montagem EUROLITE série DXT 70064872 – estrutura de encaixe universal para projetores DXT

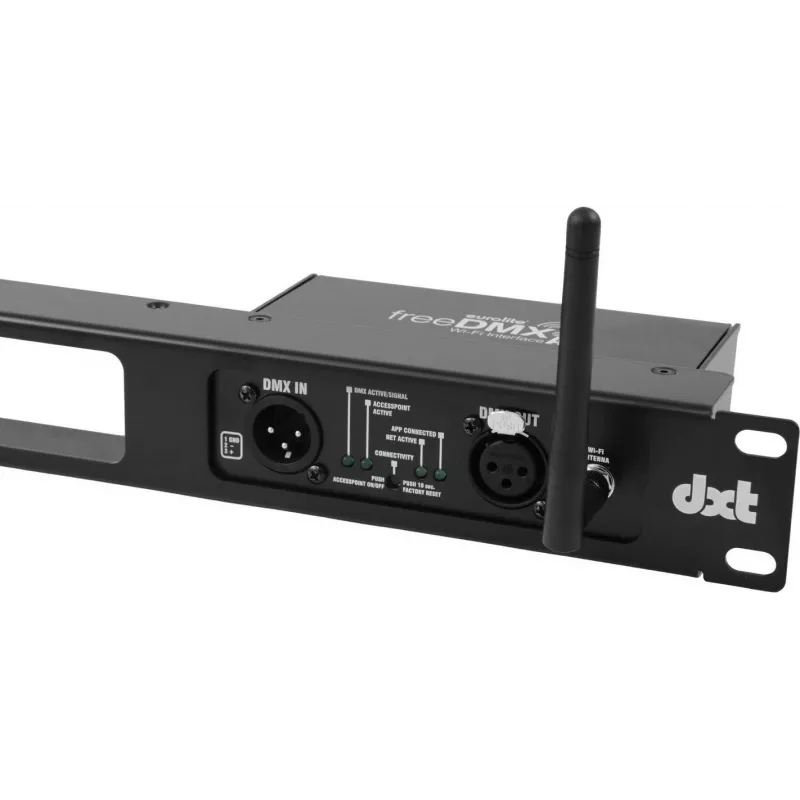

Mounting frame EUROLITE DXT Series 70064872 – universal installation frame for DXT fixtures is a purpose-built support accessory for EUROLITE DXT lighting fixtures. It is designed to provide a stable and secure mounting solution that simplifies attachment of DXT series units to trusses, walls or other fixtures. The frame helps ensure correct positioning of the luminaire and contributes to safer, more reliable setups in professional stage, event or studio environments.

Advantages

The mounting frame offers a robust and consistent attachment point that reduces installation time and helps maintain alignment of DXT fixtures. Built to integrate with the form factor of the DXT series, the frame distributes load evenly and supports stable fixation to a variety of mounting surfaces. The design promotes safer rigging by keeping the fixture securely in place and facilitating access for maintenance or angle adjustments.

Suitable for

Key specifications

How to use

Position the mounting frame so that its attachment points align with the fixture’s mounting interfaces. Secure the DXT fixture to the frame using appropriate fasteners and safety devices, ensuring all screws and clamps are tightened to recommended torque levels. Attach the assembled frame and fixture to the chosen surface — truss, wall bracket or other support — using compatible rigging hardware. Verify fixture alignment and retighten all connections after final positioning. Follow standard safety procedures for electrical isolation and load rating checks before powering the fixture.

Recommendations

Use certified rigging hardware rated for the combined weight of the frame and fixture. Inspect mounting points and fasteners regularly for signs of wear or loosening, and perform a load check after initial installation and after any relocation.
