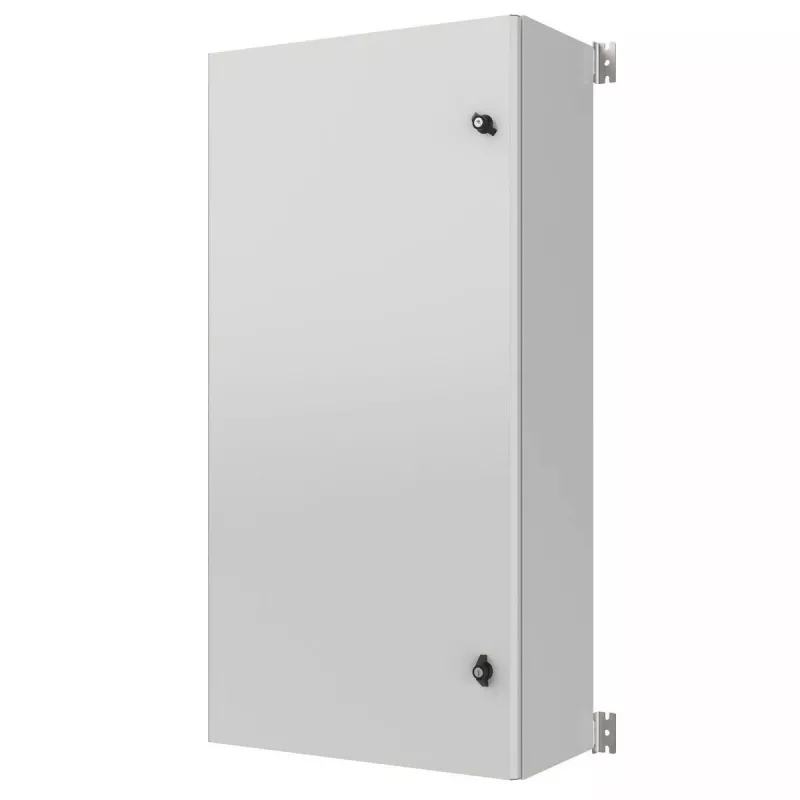

Armário rack Lanview RWM-IP656012030W 12U 30 polegadas de profundidade

The Lanview RWM-IP656012030W 12U 30 inch depth rack cabinet offers a fully welded body that is resistant to water and dust. With a 30" depth and narrow side bends to maximise interior installation space, this cabinet is suitable for server and networking equipment storage. The mounting plate is designed for easy installation and removal, and the enclosure is finished in RAL7035 outdoor powder coating applied with nanotechnology to a thickness of 70–90 microns.

Advantages

The cabinet's fully welded construction increases structural rigidity and provides protection against ingress of water and dust. Narrow side bends allow for additional usable interior space without increasing the cabinet footprint. The removable mounting plate simplifies equipment mounting and maintenance. A durable RAL7035 powder coat using nanotechnology offers a consistent outdoor-grade finish at 70–90 μm thickness.

Suitable for

• Mounting 19" servers and networking switches in a 12U enclosure
• Indoor and sheltered outdoor network installations requiring dust and water resistance
• Telecom cabinets, small server rooms and edge networking sites

Key specifications

• Model: Lanview RWM-IP656012030W
• Rack units: 12U
• Depth: 30 inches
• Body: fully welded construction
• Protection: resistant against water and dust
• Coating: RAL7035 outdoor powder coating, nanotechnology, 70–90 microns

How to use

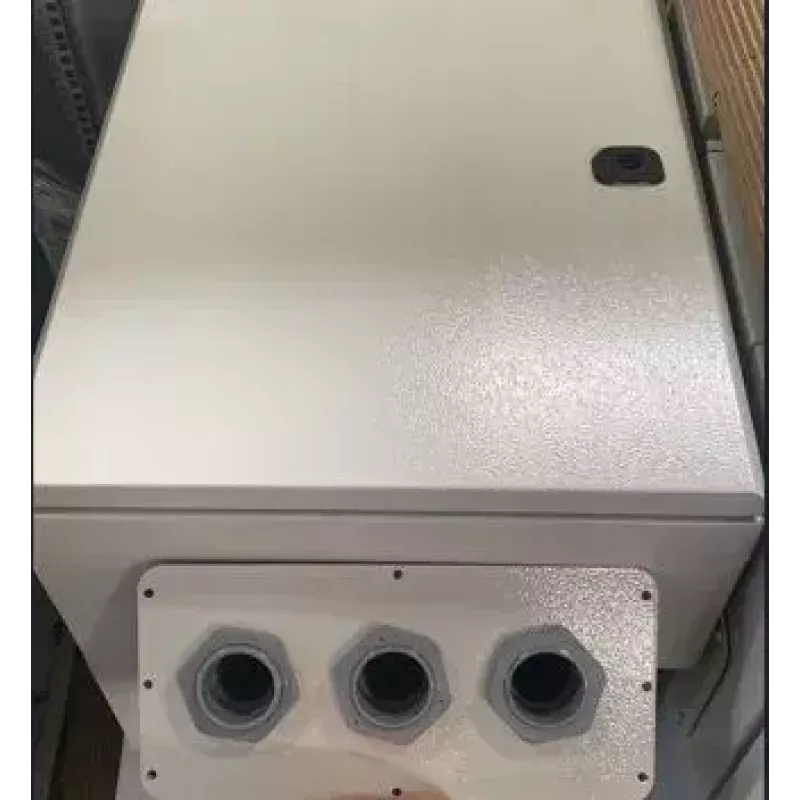

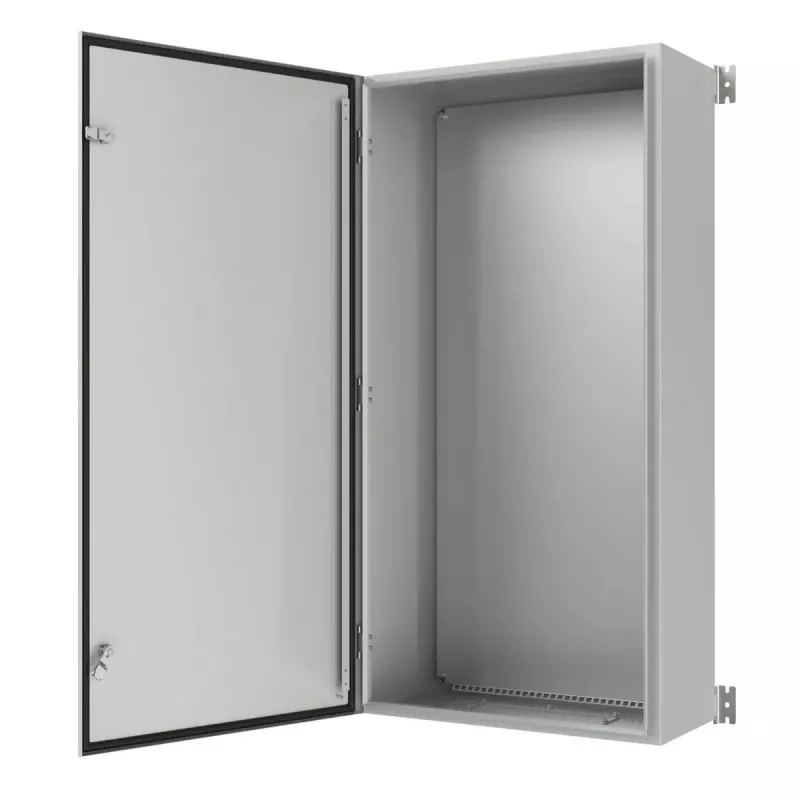

Place the rack cabinet on a level surface and secure it according to local installation standards. Mount 19" equipment to the internal mounting rails using compatible brackets; the mounting plate can be removed to provide easier access during installation. Ensure cable entry points and any openings are sealed as required to maintain dust and water resistance.

Recommendations

For continued protection and appearance, inspect the powder-coated finish periodically and avoid exposing the cabinet to direct corrosive agents. Use appropriate gaskets and seals at cable entries to preserve the cabinet's water and dust resistance.
