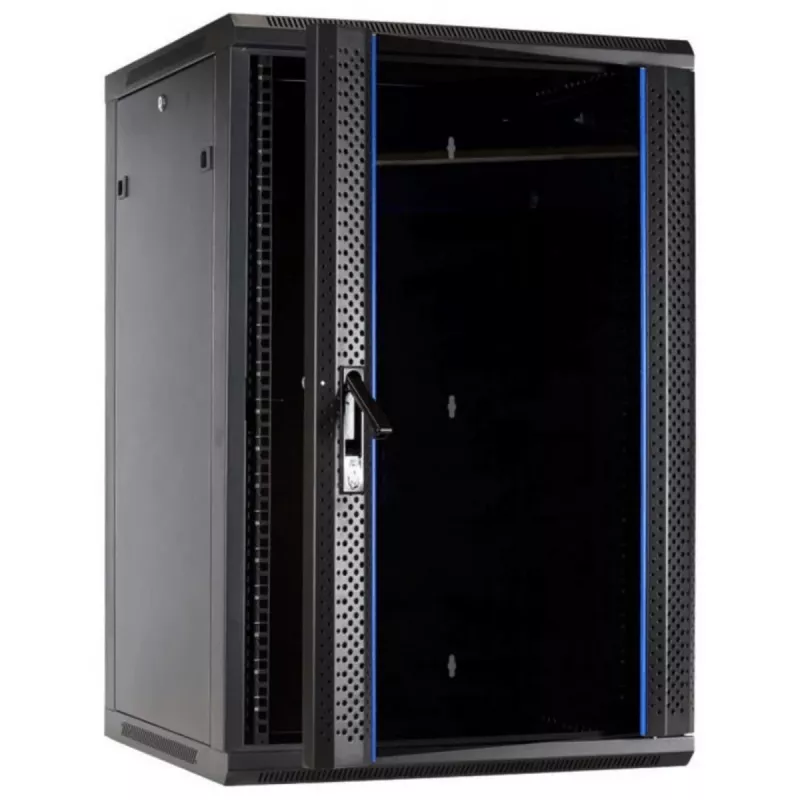

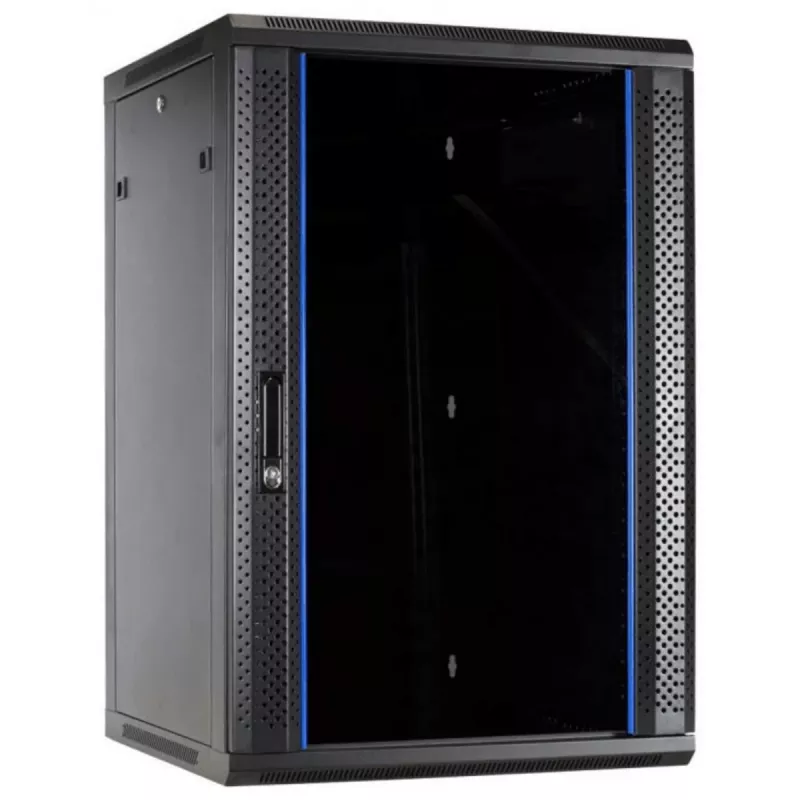

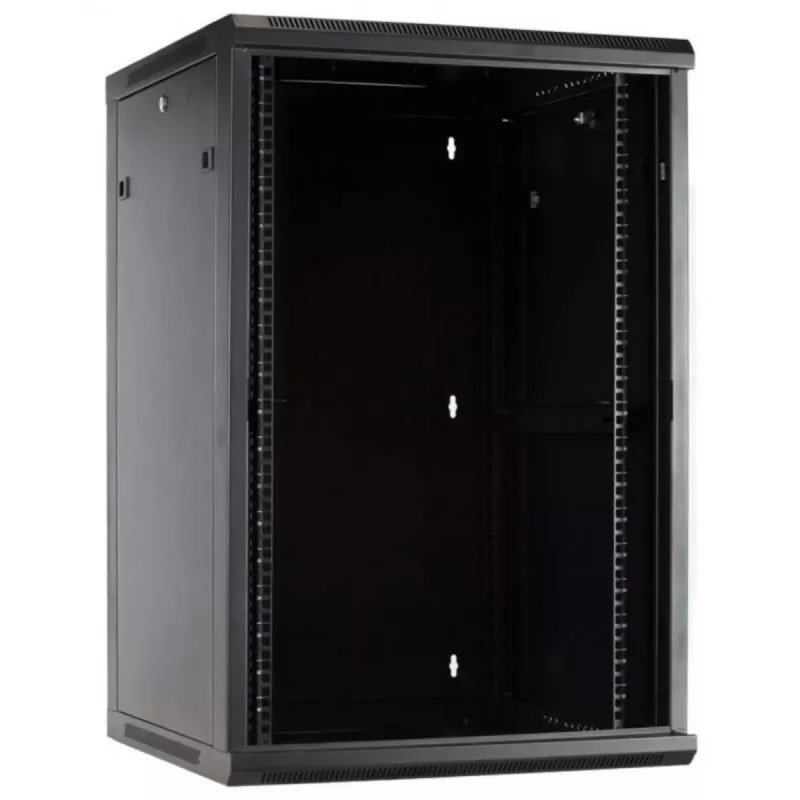

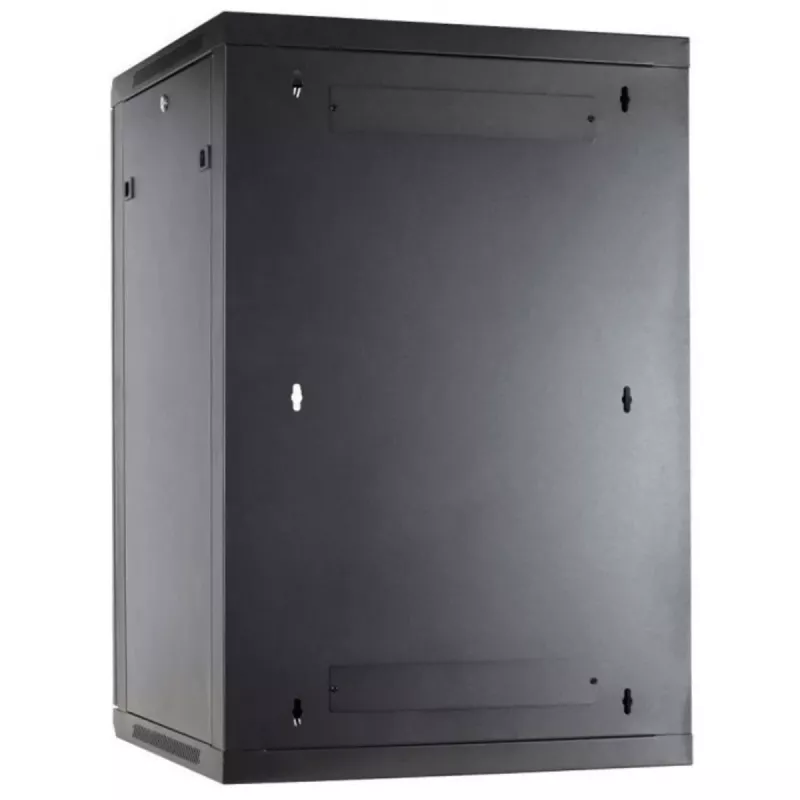

Armário servidor de parede DSIT 27U com porta de vidro, 600x600x1300 mm, preto

Managing IT infrastructure in limited spaces often forces compromises between accessibility, security, and organization. The DSIT DS6627-WAND wall-mount cabinet resolves this by offering a full 27U of 19-inch rack space in a compact, wall-hung enclosure. Its tempered glass front door allows quick visual monitoring of equipment status LEDs without opening the cabinet, while the lockable design keeps unauthorized users away from critical hardware.

Who is it for

This cabinet suits small to medium businesses, branch offices, retail back rooms, and educational facilities that need to secure network switches, patch panels, servers, and UPS units in areas where floor space is at a premium. It is also ideal for structured cabling closets and industrial environments requiring a tidy, lockable rack solution.

Main features

• 27U capacity with adjustable 19-inch mounting rails for flexible equipment placement.
• Tempered glass front door with key lock for secure, at-a-glance monitoring.
• Removable side panels and open rear frame for easy cable routing and maintenance.
• Ventilated top panel with fan-ready cutouts to support active cooling.
• Sturdy SPCC cold-rolled steel construction with powder-coated finish (RAL 9005 black).
• Supports up to 60 kg of equipment load.
• Cable entry openings on top and bottom for clean cable management.
• Includes 2 keys and all necessary mounting hardware for wall installation.

Specifications

• Rack units: 27U
• External dimensions (W x D x H): 600 x 600 x 1300 mm
• Rack standard: 19-inch
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated, black (RAL 9005)
• Load capacity: 60 kg
• Front door: Tempered glass, lockable
• Side panels: Removable
• Ventilation: Passive, top panel fan-ready
• Protection class: IP20
• Included accessories: 2 keys, mounting hardware
• Compliance: CE, RoHS

Tips

Before wall-mounting, verify that the wall structure can support the cabinet's weight plus the installed equipment. Use the adjustable rails to balance heavy items like UPS units at the bottom for stability. For active cooling, install standard 120 mm fans in the top panel cutouts and consider adding a temperature-controlled fan kit to optimize airflow.
