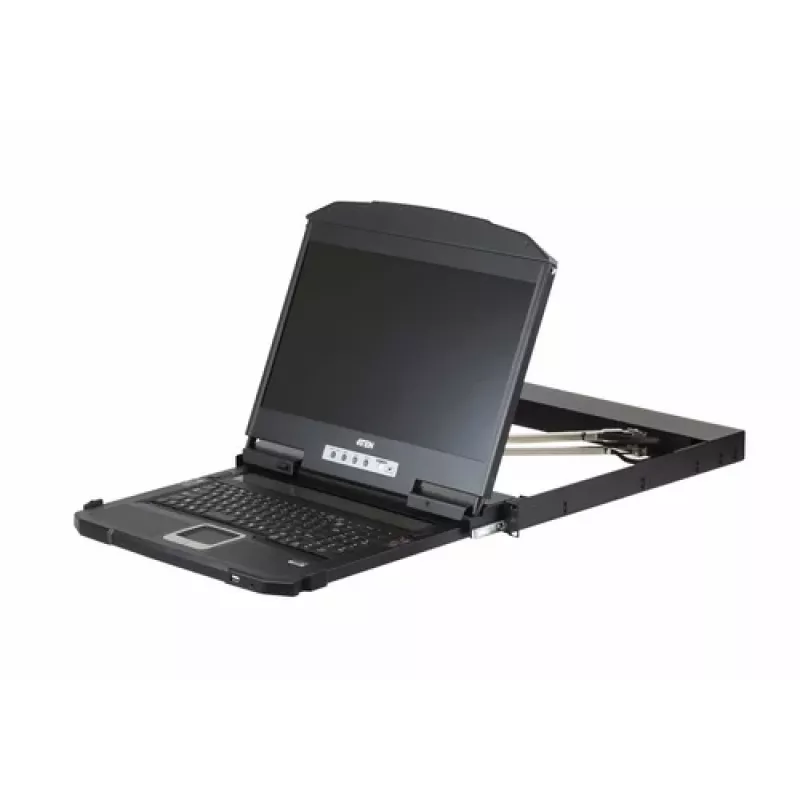

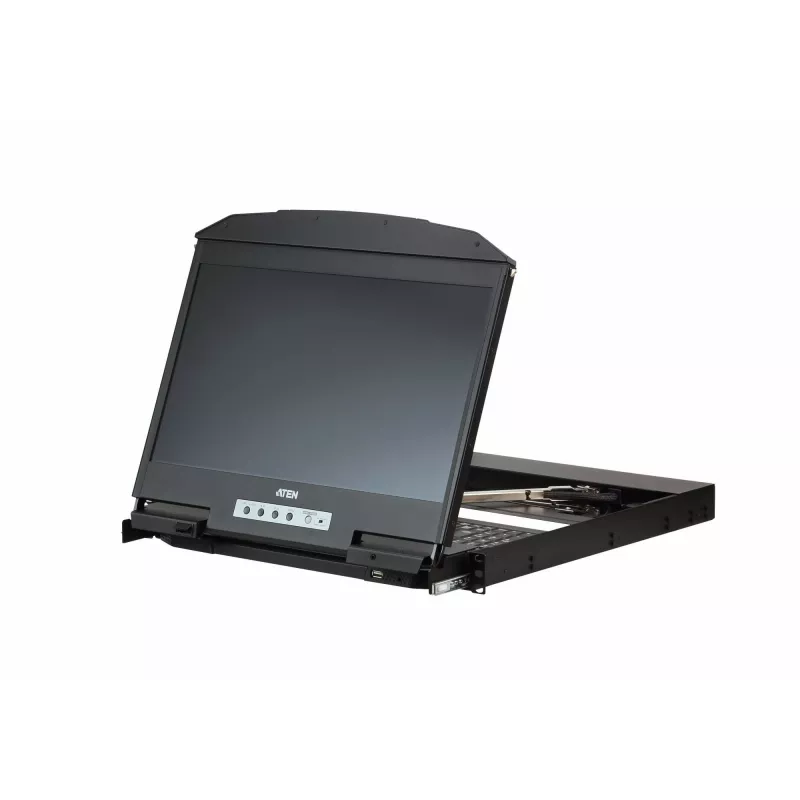

ATEN CL3800NW consola KVM LCD de duplo rail 18,5 polegadas - DVI, USB, 1U

Managing servers in a crowded rack is a constant struggle—limited space, tangled cables, and the need for quick access to multiple systems. The ATEN CL3800NW solves this by combining a bright 18.5-inch Full HD LCD, full keyboard, and touchpad into a slim 1U dual rail console. Pull out the display, flip it up, and you're in control without wasting a single rack unit.

Who is it for

System administrators, data center technicians, and IT professionals who need reliable, space-saving KVM access in server rooms, network closets, or industrial environments. Ideal for managing servers, network devices, or broadcast equipment from a single console.

Main features

• 18.5-inch TFT-LCD with LED backlight, 1920 x 1080 resolution, 350 cd/m² brightness, and 1000:1 contrast ratio for sharp, vivid images.
• Wide 178° viewing angles and 5 ms response time ensure clear visibility from any position and smooth video.
• Integrated 105-key keyboard and touchpad provide full control without external peripherals.
• Dual rail design allows the LCD to slide independently from the keyboard, saving space and improving ergonomics.
• Console connections: DVI-D video, USB Type B, and 3.5 mm audio for versatile compatibility.
• 1U rack height with included mounting rails for easy installation in standard 19-inch racks.
• Low power consumption of just 20.5 W typical, reducing energy costs.

Specifications

• Display: 18.5" TFT-LCD, LED backlight, 1920 x 1080 (Full HD)
• Brightness: 350 cd/m²
• Contrast ratio: 1000:1
• Viewing angles: 178° horizontal, 178° vertical
• Response time: 5 ms
• Console video input: DVI-D
• Console USB input: USB Type B
• Console audio input: 3.5 mm jack
• Keyboard: 105-key integrated
• Pointing device: Touchpad
• Rack height: 1U
• Power consumption: 20.5 W (typical)
• Operating temperature: 0–50 °C
• Storage temperature: -20–60 °C
• Humidity: 0–80% RH, non-condensing

Tips

Pair the CL3800NW with ATEN KVM switches to manage multiple servers from a single console. For optimal viewing, adjust the LCD tilt to reduce glare in brightly lit server rooms. Keep the console closed when not in use to protect the display and save rack space.
