ATEN CL5708N consola de rack 48,3 cm (19 polegadas) preto 1U

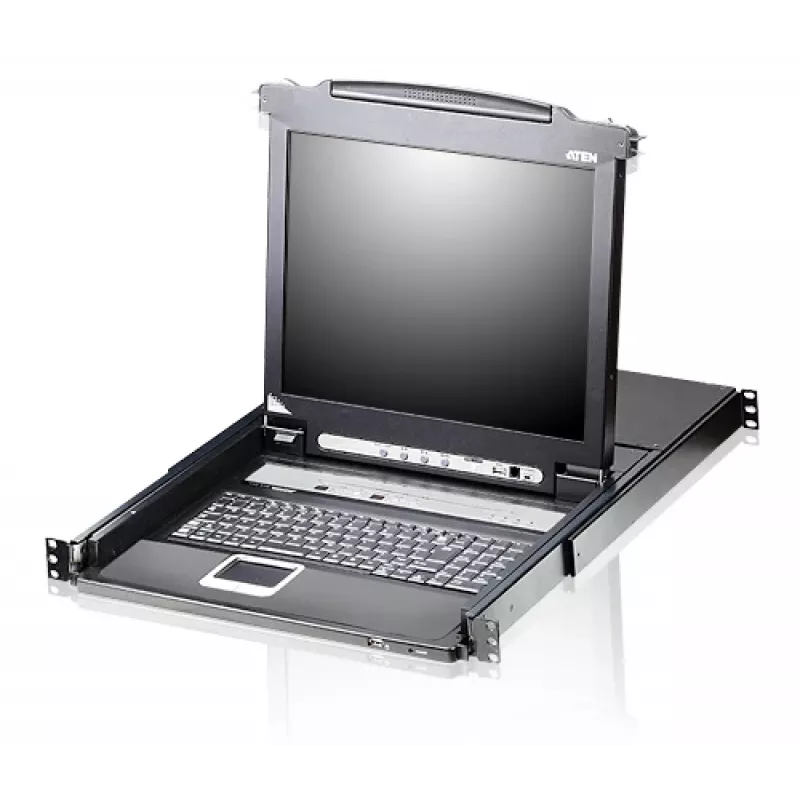

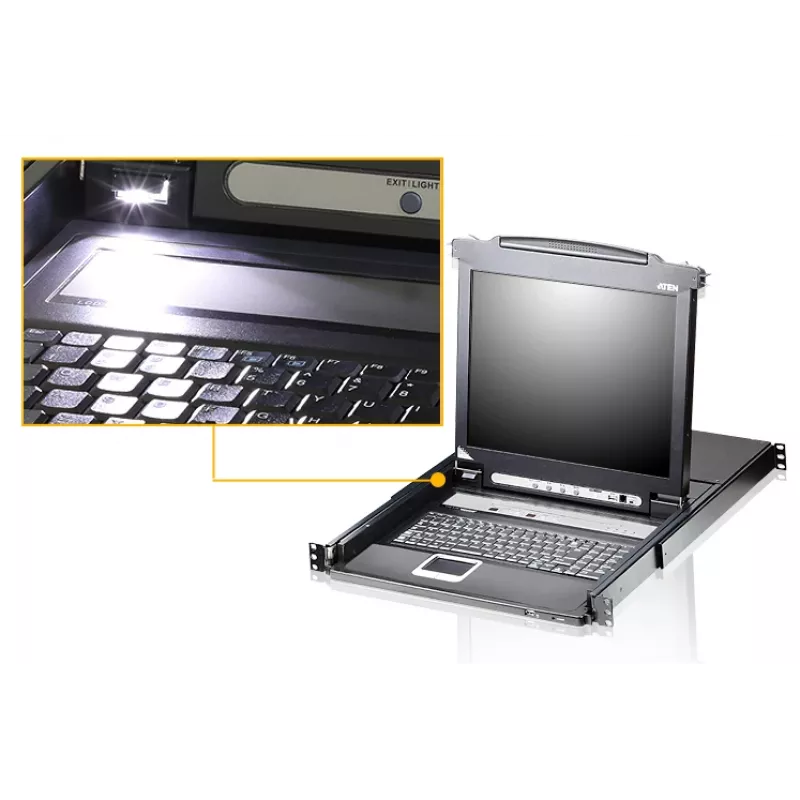

The ATEN CL5708N Rack mounting Black is a 1U Slideaway™ LCD KVM switch that integrates a keyboard, a 19-inch LED-backlit LCD monitor and a touchpad in a sliding rack housing. Designed for consolidated access, a single unit directly controls up to 8 computers and supports daisy-chaining up to 31 additional KVM switches to manage as many as 256 computers from one KVM console. The unit supports a maximum display resolution of 1280 x 1024 pixels, offers a USB mouse port and is constructed from metal and plastic for durability in server room environments.

Advantages

The CL5708N saves rack space by combining monitor, keyboard and pointing device into a compact 1U sliding module suitable for standard server racks. Its LED-backlit 19" LCD provides clear on-console video, while the USB mouse port ensures compatibility with modern pointing devices. The device’s metal and plastic construction is intended to withstand frequent use, and a scan interval of 1.255 seconds enables efficient monitoring and switching between connected systems. The daisy-chain capability expands centralized control to large server deployments without requiring multiple consoles.

Suitable for

• Data center rack cabinets where consolidated console access is required
• Server rooms managing up to 8 directly connected servers (expandable to 256 via daisy-chaining)
• Network closets and equipment rooms with standard 19" rack infrastructure
• IT maintenance stations that require a compact, integrated KVM console

Key specifications

• Form factor: 1U rack-mountable sliding KVM with integrated LCD and keyboard
• Integrated display: 19-inch LED-backlit LCD, maximum resolution 1280 x 1024 pixels
• Number of controlled computers: up to 8 directly; expandable via daisy-chain to 256
• Mouse port: USB
• Materials: metal and plastic chassis
• Scan interval: 1.255 seconds
• Color: Black
• Weight: 13.39 kg

How to use

Install the CL5708N into a standard 19" server rack occupying a single 1U space. Connect the keyboard/video/mouse cables from each server to the corresponding KVM ports on the switch following the supplied cabling diagram. Power the unit and use the integrated keyboard and touchpad to switch between connected servers. For larger deployments, link additional compatible KVM switches in a daisy-chain configuration to expand the number of controllable computers. Adjust display settings on connected systems to match the unit’s maximum resolution for optimal clarity.

Recommendations

Place the CL5708N in an easily accessible rack position for routine maintenance. Use USB-compatible mice for immediate compatibility. Maintain firmware updates and follow manufacturer guidelines for cabling and grounding to ensure reliable operation in multi-server environments.
