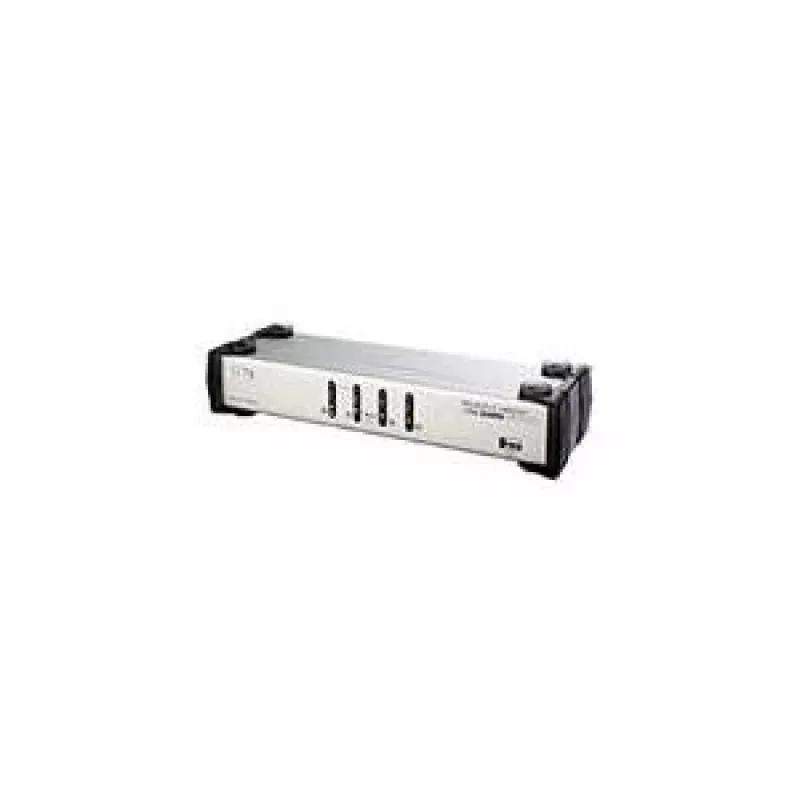

ATEN CS-1744 comutador KVMP Dual-View com USB e áudio, 4 portas, VGA, 2048x1536, metal

For professionals who need to manage multiple computers with dual displays, the ATEN CS-1744 stands out by combining a 4-port KVM switch with dual-view video support, USB peripheral sharing, and audio switching in a single rugged metal chassis. Unlike basic KVM switches that only handle one monitor, the CS-1744 drives two VGA displays simultaneously, making it ideal for workstations that require extended desktops or mirrored outputs across four connected systems.

Highlights

• Dual-view KVMP switch: control 4 computers with 2 monitors, USB keyboard/mouse, and audio
• High video quality: supports up to 2048 x 1536 @ 60Hz for crisp, detailed images
• Built-in USB 2.0 hub: share two USB peripherals among connected computers
• Full audio support: 2.1 channel stereo and microphone switching
• Flexible switching: front panel buttons, hotkeys, and On-Screen Display (OSD)
• Durable metal housing for long-term reliability in demanding environments

In daily use

The CS-1744 simplifies multi-computer workflows by eliminating the need for separate keyboards, mice, and monitors for each system. With dual VGA outputs, you can extend your desktop across two screens or mirror content, enhancing productivity in design, finance, or IT management. The integrated USB hub allows you to connect printers, scanners, or external drives and access them from any connected computer. Audio switching ensures that speakers and microphones follow the active computer, making it perfect for multimedia tasks or video conferencing. Switching between computers is effortless via front panel pushbuttons, keyboard hotkeys, or the intuitive OSD menu, which also provides system configuration and status information.

Full specifications

• KVM Type: Dual View KVMP Switch
• Number of Computers Controlled: 4
• Console Port Connectors (Video): 2x HDB-15 Female (VGA)
• Console Port Connectors (Keyboard/Mouse): 2x USB Type-A Female
• Console Port Connectors (Audio): 2x 3.5mm Jack Female (Speaker, Microphone)
• Computer Port Connectors (KVM): 4x SPHD-15 Female
• Computer Port Connectors (Audio): 8x 3.5mm Jack Female (4x Speaker, 4x Microphone)
• USB Hub Ports: 2x USB 2.0 Type-A Female
• Max Video Resolution: 2048 x 1536 @ 60Hz
• On Screen Display (OSD): Yes
• Switching Methods: Front Panel Pushbuttons, Hotkeys, OSD
• Audio Support: 2.1 Channel Stereo, Microphone
• USB Hub Standard: USB 2.0
• Hot-Pluggable: Yes
• Firmware Upgradeable: Yes
• OS Compatibility: Windows, Mac, Linux, Sun
• Power Consumption: DC 5V, 2.4W
• Housing Material: Metal

Final note

The ATEN CS-1744 delivers a robust, feature-rich solution for dual-monitor KVM switching, backed by ATEN's reputation for quality and reliability. Its metal construction and comprehensive connectivity make it a dependable choice for professional environments where performance and durability are paramount.
