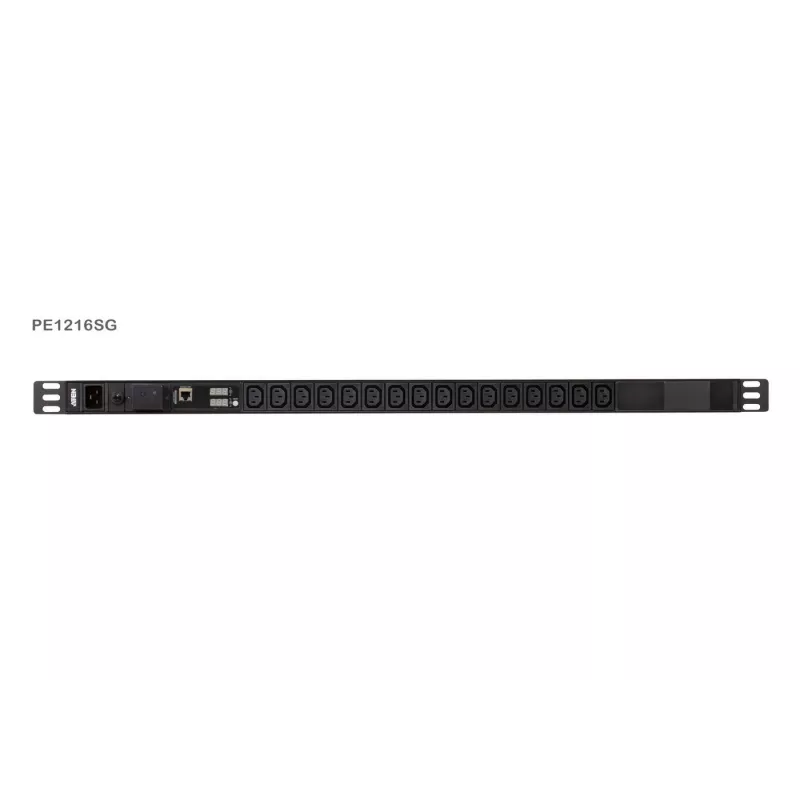

ATEN PE1216SG PDU com medição e proteção contra sobretensões, IEC C20 para 16x C13, montagem em rack 1U, 16A, 200-240V

The ATEN PE1216SG is a professional metered power distribution unit (PDU) designed for data centers and server rooms. It provides real-time current monitoring via a local LED display and supports remote power management when integrated with ATEN's eco PDU management software. With surge protection and overload protection, it ensures reliable power distribution for critical equipment.

Advantages

Real-time current monitoring at the PDU level helps prevent circuit overloads and optimize power usage. The built-in surge protection device (SPD) safeguards connected equipment from voltage spikes. The 1U horizontal form factor fits standard 19-inch racks, saving space. Dual 16A circuit breakers provide redundant overload protection.

Suitable for

• Data centers requiring accurate power metering
• Server rooms with 200-240V AC power infrastructure
• IT environments needing surge protection for critical devices
• Rack installations where space is at a premium

Key specifications

• PDU Type: Metered PDU
• Input Connector: 1 x IEC 60320 C20
• Output Connectors: 16 x IEC 60320 C13
• Nominal Input Voltage: 200-240V AC
• Nominal Input Current: 16A
• Power Capacity: 3840 VA / 3.84 kW
• Metering: Current (Amps), Voltage (Volts), Power (kW), Energy (kWh)
• Local Display: 3-digit 7-segment LED for Current
• Overload Protection: 2 x 16A Circuit Breakers
• Surge Protection: Yes (SPD)
• Mounting: 1U Rackmount
• Form Factor: 1U Horizontal
• Frequency: 50/60 Hz
• Housing Material: Metal
• Operating Temperature: 0 - 50°C
• Operating Humidity: 0 - 80% RH, Non-condensing
• Certifications: CE, LVD, RoHS, REACH

Recommendations

For optimal power management, pair this PDU with ATEN's eco PDU software for remote monitoring and control. Ensure your rack has a 1U horizontal space and that your power source provides a C20 outlet or appropriate adapter.
