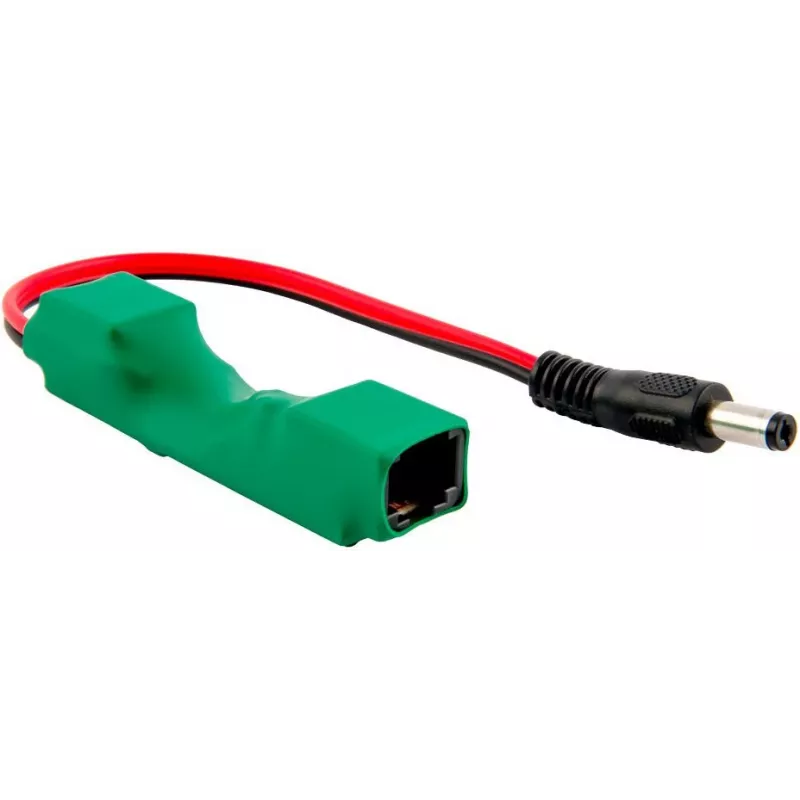

ATTE ASDC-05-050-HS Adaptador PoE 802.3af Step-Down para 5V

The ATTE ASDC-05-050-HS is a high-quality PoE adapter that converts Power over Ethernet (IEEE 802.3af) to a stable 5V DC output, ideal for powering low-voltage devices such as IP cameras, wireless access points, and IoT sensors. This adapter eliminates the need for a separate power outlet, simplifying installation and reducing cable clutter.

Advantages

By using the ATTE ASDC-05-050-HS, you can power devices that require 5V via a standard Ethernet cable, leveraging existing PoE infrastructure. It supports data pass-through at 10/100 Mbps, ensuring network connectivity while delivering power. The compact plastic housing and integrated 0.1m Micro USB cable make it easy to connect to devices. Protection features include short-circuit and overload safeguards for reliable operation.

Suitable for

• IP cameras requiring 5V DC power
• Wireless access points and routers
• IoT devices and sensors
• Networked peripherals in remote locations

Key specifications

• PoE Standard: IEEE 802.3af
• Input Voltage: 44-57V DC
• Output Voltage: 5V DC
• Output Current: 0.5A (500mA)
• Max Output Power: 2.5W
• Data Transfer Rate: 10/100 Mbps
• PoE Input: 1x RJ45 Female
• DC Output: 1x Micro USB Male (0.1m cable)
• Data Output: 1x RJ45 Female (non-PoE)
• Galvanic Isolation: Yes
• Protection: Short-circuit, Overload
• Operating Temperature: -10°C to 40°C
• LED Indicator: Power (Green)
• Housing Material: Plastic

Recommendations

For optimal performance, use with a PoE switch or injector that complies with IEEE 802.3af. Ensure the connected device does not exceed 2.5W total power consumption. This adapter is not suitable for powering devices that require higher voltage or current.
