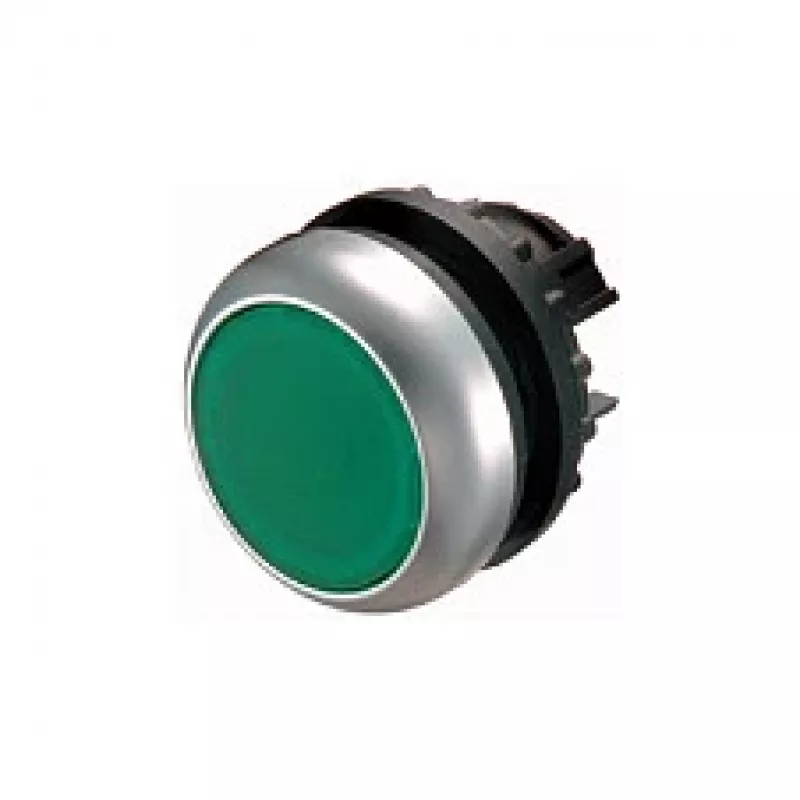

Atuador de botão de pressão plano Eaton M22-D-G, verde, momentâneo, 22,5 mm, IP66/IP67/IP69K

In industrial control panels, a reliable pushbutton actuator is essential for safe and efficient machine operation. The Eaton M22-D-G flat pushbutton actuator provides a robust, ergonomic interface for momentary control tasks, ensuring clear visual status with its green color and durable construction.

Who is it for

This actuator is ideal for panel builders, machine OEMs, and maintenance technicians who need a high-quality, front-mount pushbutton that withstands harsh environments. It suits applications in food processing, packaging, material handling, and general industrial automation where frequent actuation and washdown conditions are common.

Main features

• Flat actuator profile for flush panel mounting and reduced accidental operation
• Momentary (spring return) operation for push-to-make control
• High ingress protection: IP66, IP67, IP69K on the front, suitable for high-pressure washdown
• NEMA 4X and 13 rated for corrosion resistance and indoor/outdoor use
• Wide operating temperature range from -25°C to +70°C
• Long mechanical life exceeding 5 million operations for reduced maintenance
• Compatible with Eaton M22 series contact blocks and lamp holders for modular assembly

Specifications

• Brand: Eaton
• Model: M22-D-G
• MPN: 216596
• EAN: 4015082165963
• Product type: Pushbutton actuator
• Actuator colour: Green
• Actuator shape: Flat
• Operation type: Momentary (spring return)
• Mounting hole diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• NEMA protection rating: NEMA 4X, 13
• Ambient operating temperature: -25 to +70 °C
• Mechanical life: > 5,000,000 operations
• Front ring material: Plastic
• Front ring colour: Titanium (silver/grey)
• Illumination: Non-illuminated
• Compatibility: Eaton M22 series contact blocks and lamp holders
• Standards compliance: IEC/EN 60947-5-1, VDE 0660 Part 200
• Panel thickness range: 1 - 6 mm
• Mounting type: Front mounting

Tips

For a complete pushbutton assembly, pair this actuator with an Eaton M22 contact block (e.g., M22-K10 for 1NO or M22-K01 for 1NC). Ensure the panel cutout is exactly 22.5 mm and the panel thickness is within 1–6 mm to maintain the IP69K seal. Use a suitable tightening torque (0.8–1.2 Nm) on the mounting nut to avoid damage.
