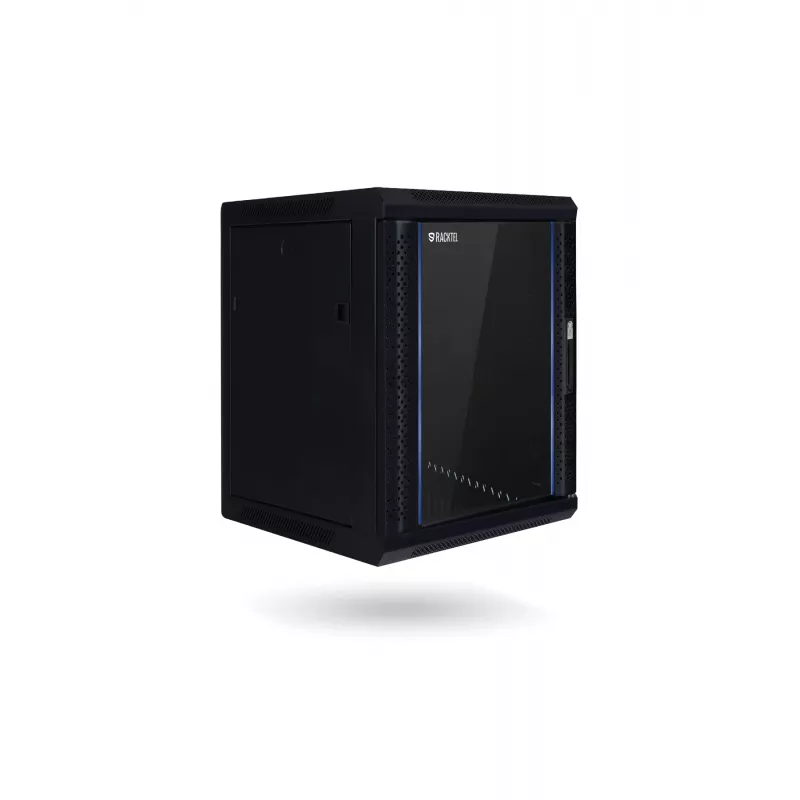

RACKTEL RL-4518WR armário rack 18U para montagem na parede 600x450mm preto

The RACKTEL RL-4518WR is a high-quality 18U wall mount rack cabinet designed for secure and organized installation of 19-inch network and server equipment. With external dimensions of 600mm width and 450mm depth, this flat-pack (unassembled) cabinet offers a robust solution for small to medium-sized IT deployments. Constructed from cold rolled steel with a black powder-coated finish (RAL 9005), it provides durability and a professional appearance.

Advantages

This rack cabinet combines space efficiency with robust security features. The lockable tempered glass front door allows easy monitoring of equipment while preventing unauthorized access. Removable lockable side panels provide convenient cable management and maintenance access. The adjustable 19-inch mounting profiles (front and rear) accommodate various equipment depths, and the top and bottom cable entries with brush strips ensure tidy cable routing. Passive ventilation with fan-ready top panel cutouts helps maintain optimal operating temperatures.

Suitable for

• Networking equipment such as switches, patch panels, and routers
• Server and storage devices in small server rooms or office environments
• Audio/video equipment installations
• Telecommunications and data distribution points

Key specifications

• Rack Units: 18U
• External Dimensions (WxDxH): 600 x 450 x 900 mm
• Mounting Type: Wall mount
• Construction: Flat-pack (unassembled)
• Material: Cold rolled steel
• Front Door: Tempered glass, lockable, reversible
• Side Panels: Removable, lockable
• Load Capacity: 60 kg
• Color: Black (RAL 9005)
• 19-inch Mounting Profiles: 2 pairs (front & rear), adjustable
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive, fan ready (top panel cutouts)
• Finish: Powder coated
• Standards Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Security: Multiple locks (front door, side panels)

Recommendations

For optimal performance, ensure the wall mount location can support the total weight of the cabinet and installed equipment. Use appropriate wall anchors and follow the assembly instructions carefully. This cabinet is ideal for environments where space is limited but security and organization are paramount.
