AXING Ethernet over Coax EOC 2-32 Peer-to-Peer 1600 Mbps WLAN (EOC00232)

Coaxial cabling in existing buildings often limits network expansion to Wi-Fi dead zones and slow legacy bridges. The AXING EOC 2-32 solves this by converting unused coax runs into a high-speed backbone, delivering up to 1600 Mbps Wi-Fi and Gigabit Ethernet without new wiring.

Who is it for

Installers and property managers who need to extend reliable, high-bandwidth connectivity across large or multi-room premises using existing coaxial infrastructure. It suits hotels, MDUs, and older commercial spaces where pulling Ethernet cable is impractical.

Main features

• ITU-T G.hn EoC technology with physical layer rates up to 1.6 Gbps over coax
• Dual-band Wi-Fi 5 (802.11ac) with combined data rate up to 1600 Mbps
• Two Gigabit Ethernet ports for wired devices
• Supports up to 32 peer devices on a single coax segment
• Coax reach up to 700 meters
• Web-based management with VLAN and QoS support

Specifications

• EoC Standard: ITU-T G.hn (G.9960/G.9961)
• EoC Physical Layer Rate: up to 1.6 Gbps
• Wi-Fi Standard: IEEE 802.11ac/a/b/g/n
• Wi-Fi Data Rate: up to 1600 Mbps (AC1600)
• Wi-Fi Frequency Bands: 2.4 GHz and 5 GHz
• Ethernet Ports: 2x Gigabit RJ45
• Coaxial Connector: F-Type
• Max Coax Cable Length: 700 m
• Max Peer Devices: 32
• EoC Frequency Band: 2-200 MHz
• Security: WPA/WPA2-PSK, AES 128-bit (EoC)
• Management: Web-based GUI
• QoS: Yes
• VLAN: Yes
• IPv6: Yes
• Power Supply: External DC 12V/1A

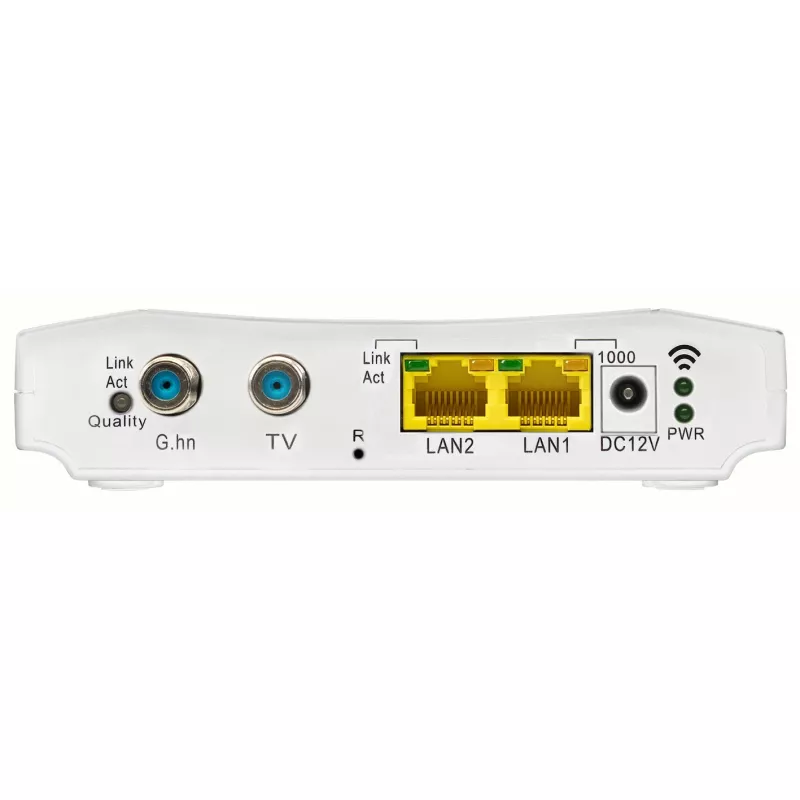

• LED Indicators: Power, Coax Link, Ethernet Link, Wi-Fi Status

Tips

For best performance, ensure the coax segment is free of splitters and amplifiers not rated for EoC frequencies. Use the web interface to adjust Wi-Fi channels and VLAN settings per deployment.
