Bachmann PIX 1xUTE 2.0m AEH RAL9010 tomada de encastrar Schuko com extremidade solta

Unlike standard surface-mount sockets that clutter desks and worktops, the Bachmann PIX 1xUTE 2.0m AEH RAL9010 integrates seamlessly into furniture. Its compact round design and pure white finish make it an unobtrusive power point for modern workspaces, conference tables, and kitchen islands. The socket is pre-wired with a 2.0 m H05VV-F 3G1.5 cable ending in wire end ferrules (AEH), ready for direct connection by a qualified electrician.

Highlights

• Flush-mount installation with only 56 mm cut-out diameter and 68 mm outer diameter
• Schuko (Type F) socket rated 16 A / 250 V AC, max 3680 W
• 2.0 m cable with loose end and wire end ferrules for flexible wiring
• RAL9010 pure white housing blends with light-coloured furniture
• IP20 protection – suitable for dry indoor environments
• CE and VDE certified for safety and compliance

In daily use

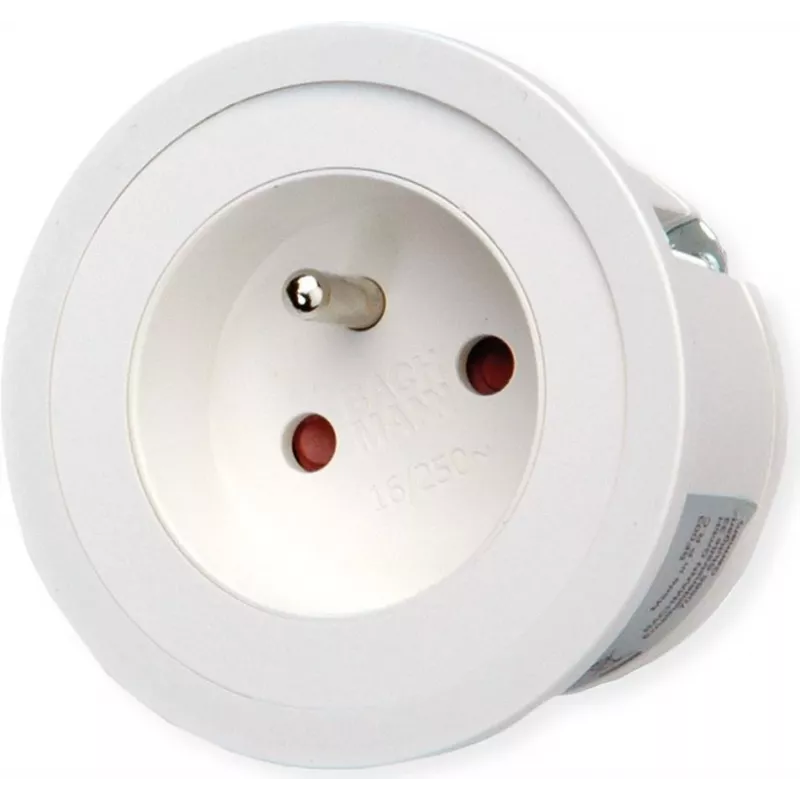

The PIX socket sits nearly flush with the surface, leaving only a slim ring visible. It accepts standard Schuko plugs and provides reliable power for laptops, monitors, small appliances, or charging adapters. The generous 2.0 m cable allows routing to a junction box or power distribution unit below the desk. The wire end ferrules ensure a secure, low-resistance connection when clamped into terminals.

Full specifications

• Brand: Bachmann
• Model: PIX 1xUTE 2.0m AEH RAL9010
• MPN: 926.303
• EAN: 4057298135255
• Socket type: Schuko (Type F)
• Number of sockets: 1
• Cable length: 2.0 m
• Cable type: H05VV-F 3G1.5 mm²
• Cable termination: Loose end with wire end ferrules (AEH)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Max power output: 3680 W
• Protection class: IP20
• Mounting type: Flush mount / built-in
• Installation cut-out diameter: 56 mm
• Outer diameter: 68 mm
• Mounting depth: approx. 45 mm
• Material: High-quality plastic
• Colour: RAL9010 pure white
• Certifications: CE, VDE

Final note

For a clean, professional power solution that disappears into the furniture, the Bachmann PIX delivers both aesthetics and safety.
